SIM800A Quad-Band GSM/GPRS Module with RS232
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

SIM800A Quad-Band GSM/GPRS Module with RS232

In Stock - SKU: 6M26

899.00
[ ₹ 761.86 + ₹ 137.14 (18% GST) ]
  • Voltage Input: 5-18V DC
  • Current Input: >1A
  • Dimension: 82mmX50mmX16mm
  • Integrated high-speed TTL MOSFET signal level
  • Integrated IC signal transfer level RS232 MAX232
  • Order within

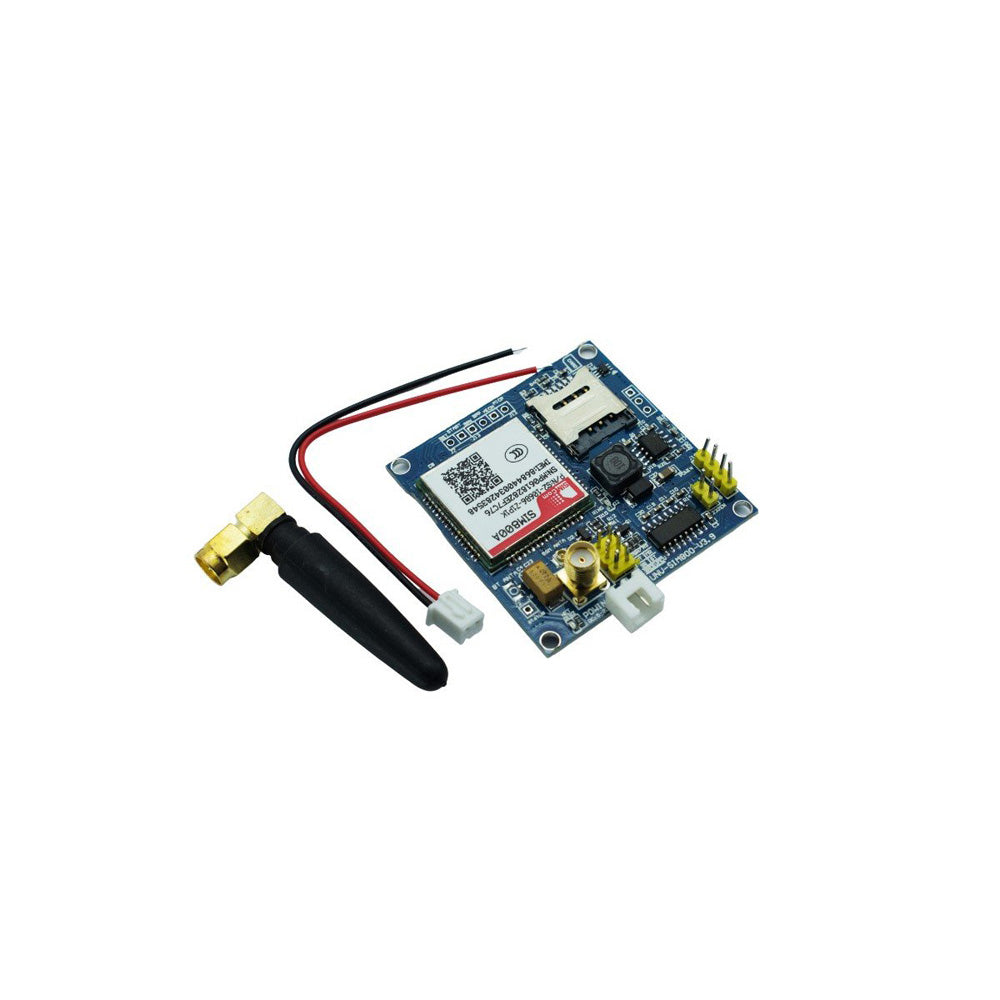

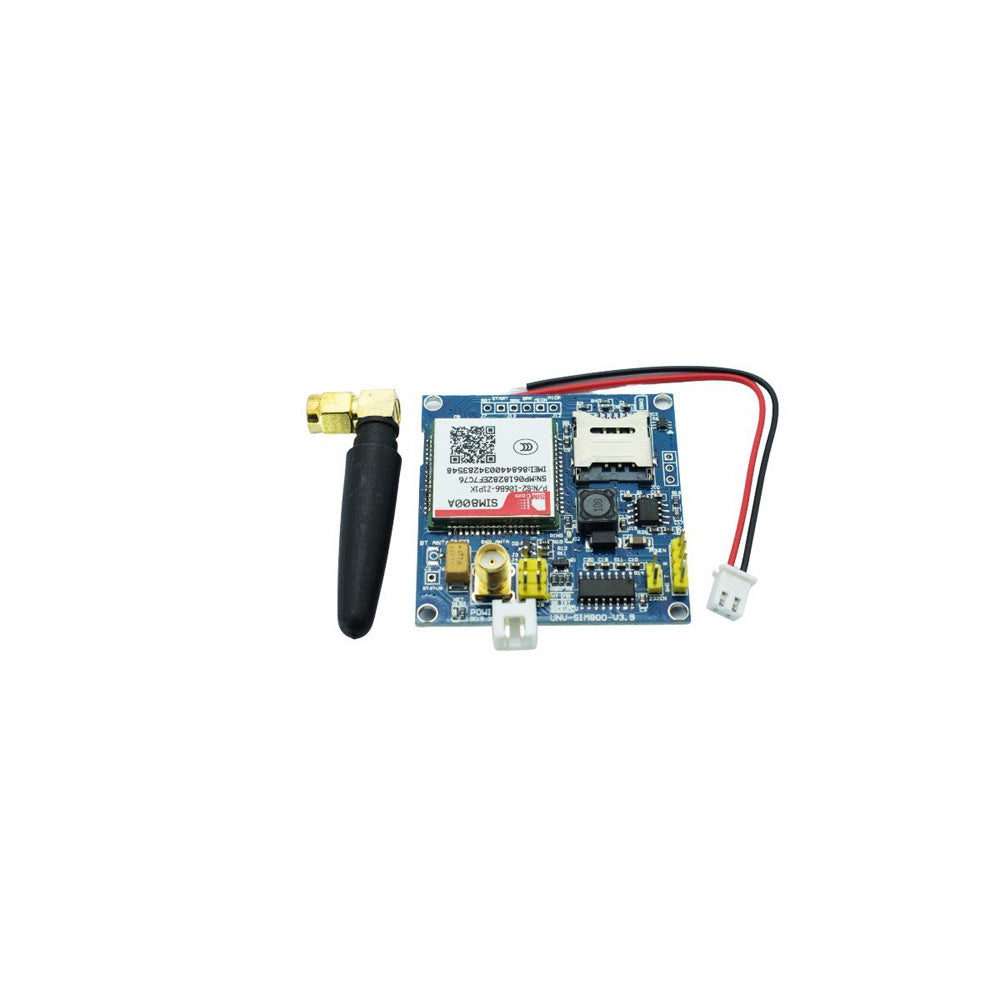

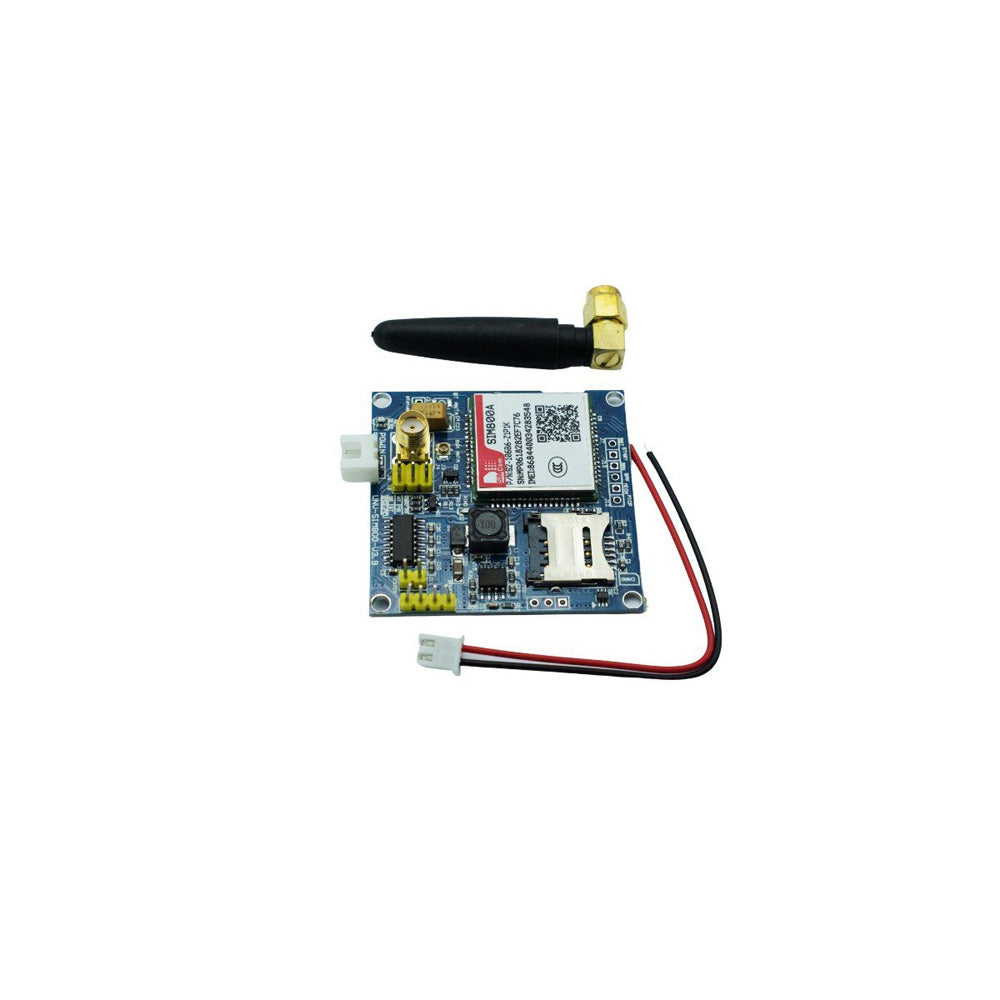

SIM800A GSM GPRS Module is an upgraded version of SIM900A, you can create various projects using this module, For example, IoT gateways, security alert systems, DTMF-based home automation, etc. Integrating pulse source and buffer IC is compactly designed but still retains the necessary elements of the Sim module design such as logic signal transfer circuit using Mosfet, IC RS232 (MAX232) communication, high current pulse source circuit, standard sim slot, and signalling LEDs, Board comes with external SMA GSM antenna.

SIM800A GSM GPRS Module is an upgraded version of SIM900A, you can create various projects using this module, For example, IoT gateways, security alert systems, DTMF-based home automation, etc. Integrating pulse source and buffer IC is compactly designed but still retains the necessary elements of the Sim module design such as logic signal transfer circuit using Mosfet, IC RS232 (MAX232) communication, high current pulse source circuit, standard sim slot, and signalling LEDs, Board comes with external SMA GSM antenna.

Voltage Input     5-18V DC
Current Input    >1A
Dimension       82mmX50mmX16mm
Integrated high-speed TTL MOSFET signal level Yes
Integrated IC signal transfer level RS232 MAX232 Yes
Integrated pulse source with high current for SIM800A Yes
Micro sim slot Yes
Compact circuit design, durability, anti-interference Yes
VCC Positive source from 5-18V DC, >1A
GND 0V DC
EN The default connection is high, the function is to start (Enable) or stop(Disable) the Sim800 module. Connect EN with GND to disable the sim800 module.
232R  Receive RS232 Signal
232T Transmit signal
RXD TTL signal receive, logic levels 3.3v and 5v DC
BRXD Usually not used, signal receiving pins, used to communicate to load firmware for Sim800, Signal level 3.3V DC
BTXD Usually not used,  signal transfer pins, used to communicate to load firmware for Sim800, Signal level 3.3V DC
EPN Speaker Audio output negative
EPP Speaker Audio output positive
MICP positive microphone input
MICN Negative microphone input
