Description

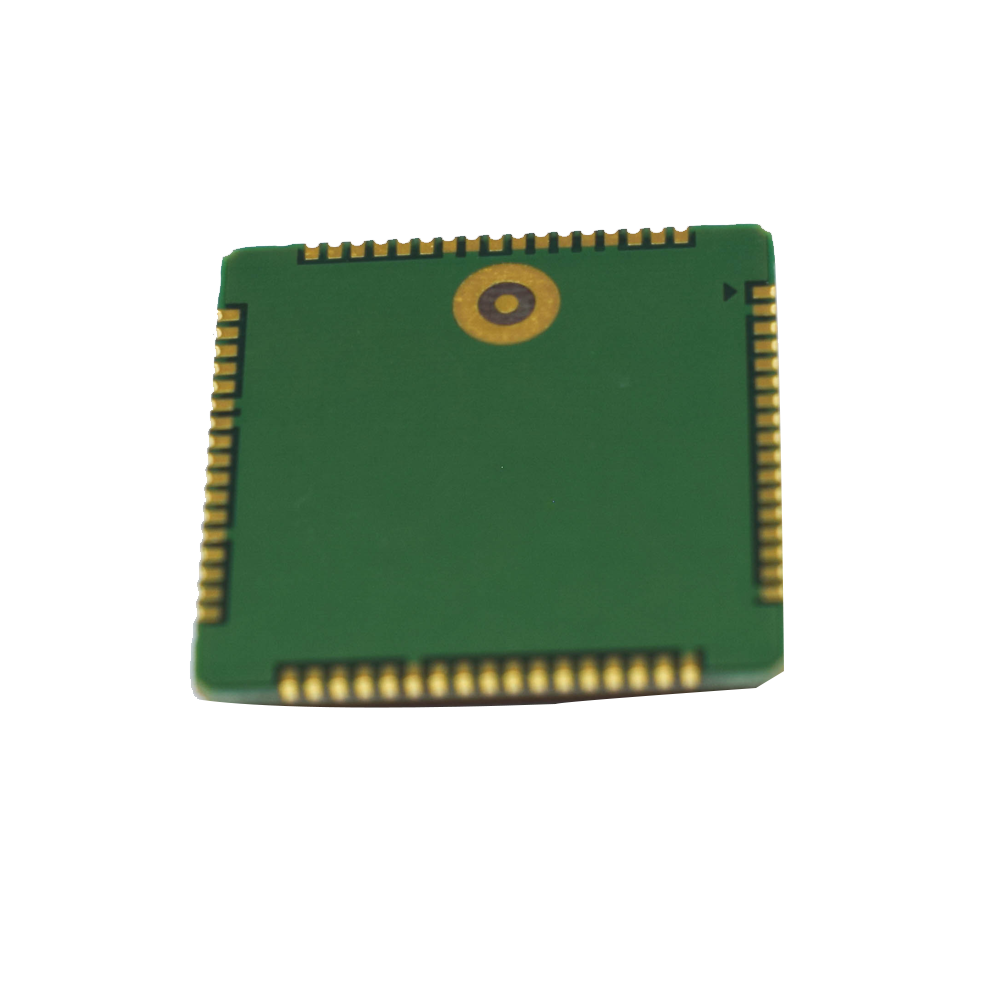

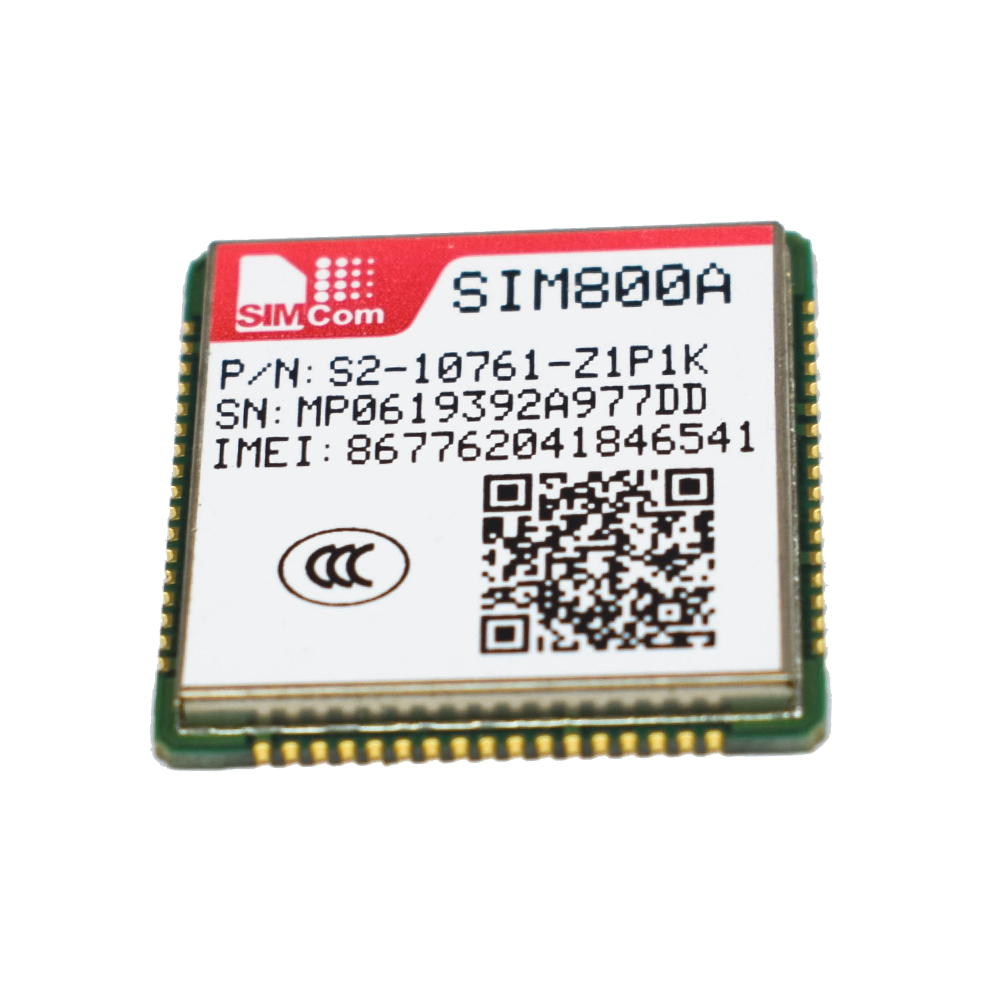

The SIMCOM SIM800A is a complete Dual-band GSM/GPRS SMT solution that can be embedded in customer applications. It supports Dual-band 900/1800MHz and can transmit voice, SMS, and data information while consuming little power. Its small size of 24*24*3mm allows it to fit into the slim and compact demands of customer design. It's Bluetooth and Embedded AT capabilities enable total cost savings and rapid time-to-market for customer applications.
Features
- Control via AT commands(GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)
- Supply voltage range 3.4 ~ 4.4V
- Low power consumption
- Operation temperature:-40℃ ~85℃
- GPRS class 12: max. 85.6 kbps (downlink)
- PBCCH support
- Coding schemes CS 1, 2, 3, 4
- PPP-stack
- CSD up to 14.4 kbps
- USSD
- Non-transparent mode
- Point-to-point MO and MT
- SMS cell broadcast
- Text and PDU mode
Specification
| Model | SIM800A Chip |
| Brand | SIMCOM |
| Frequency Band | Dual-band 900/1800MHz |
| Supply voltage range | 3.4 ~ 4.4V |
| No. of Pins | 68 |
| Package | SMD Package |
| Dimensions | 24 x 24 x 3mm |
| Material |
Silicon |
| Operation temperature | -40℃ ~85℃ |
| Country of Origin | China |
