Description

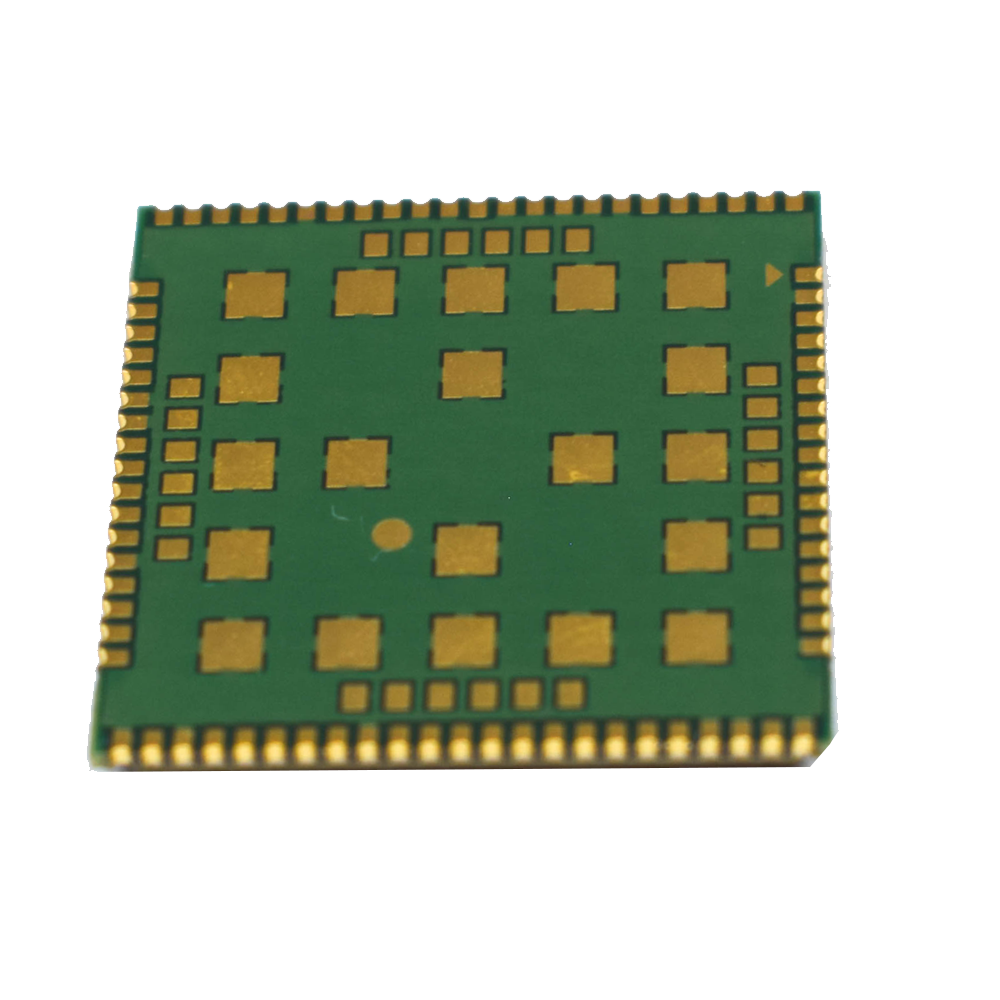

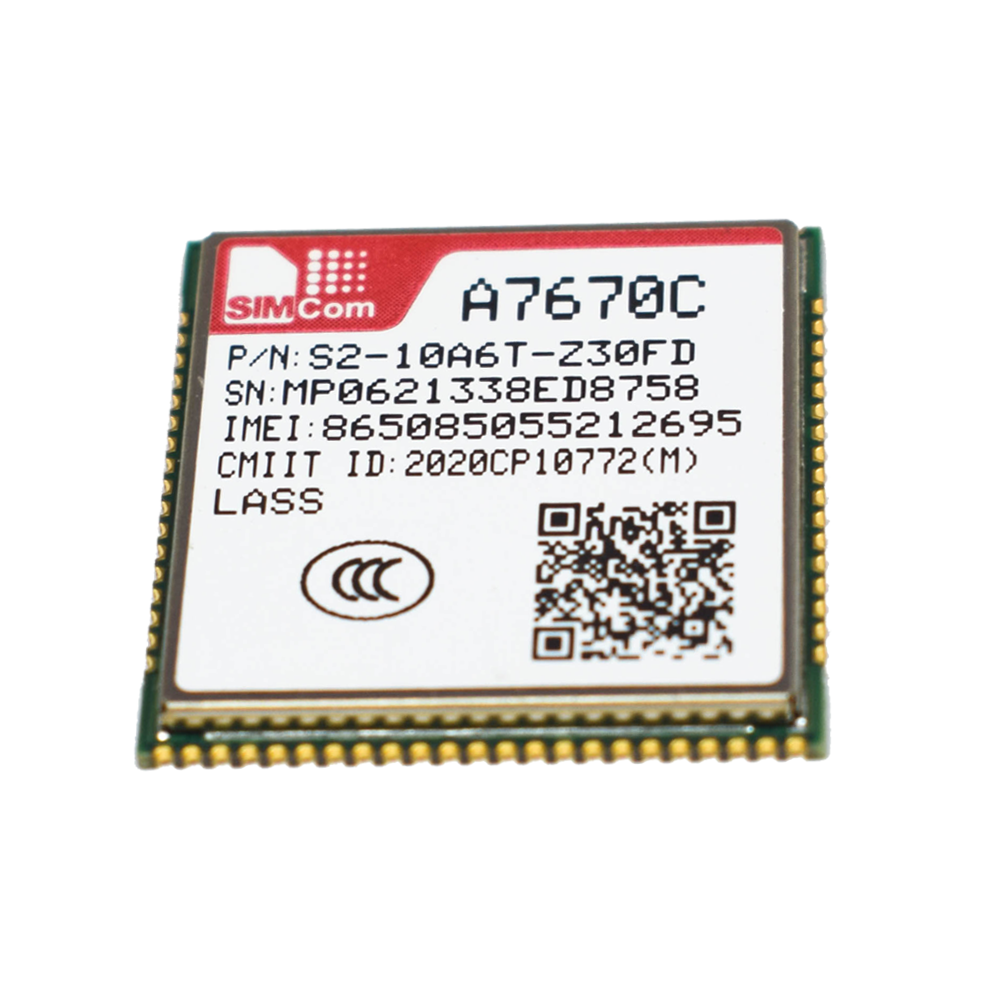

The A7670 series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/LTE-FDD/m GSM/GPRS/EDGE data transfer rates of up to 10Mbps. It has a strong extension capability and a variety of interfaces, such as UART, USB 2.0, GPIO, and so on. The module offers a high level of flexibility and ease of integration for the customer's application. The A7670X comes in an LGA package. It is intended for use in applications that require high-throughput data communication in a variety of radio propagation conditions.
Features
- Small Size LTE Module.
- LGA package with rich interfaces.
- Suitable for LTE and GSM networks.
Specification
| Model | A7670C Chip |
| Brand | SIMCOM |
| Type | LTE Module |
| Frequency Band |
LTE-FDD B1/B3/B5/B8 |
| Supply voltage range | 3.4 V ~ 4.2 V |
| Package | SMD Package |
| Dimensions | 24 x 24 x 2.5mm |
| Material |
Silicon |
| Operation temperature | -40℃ ~85℃ |
| Country of Origin | China |
