Description

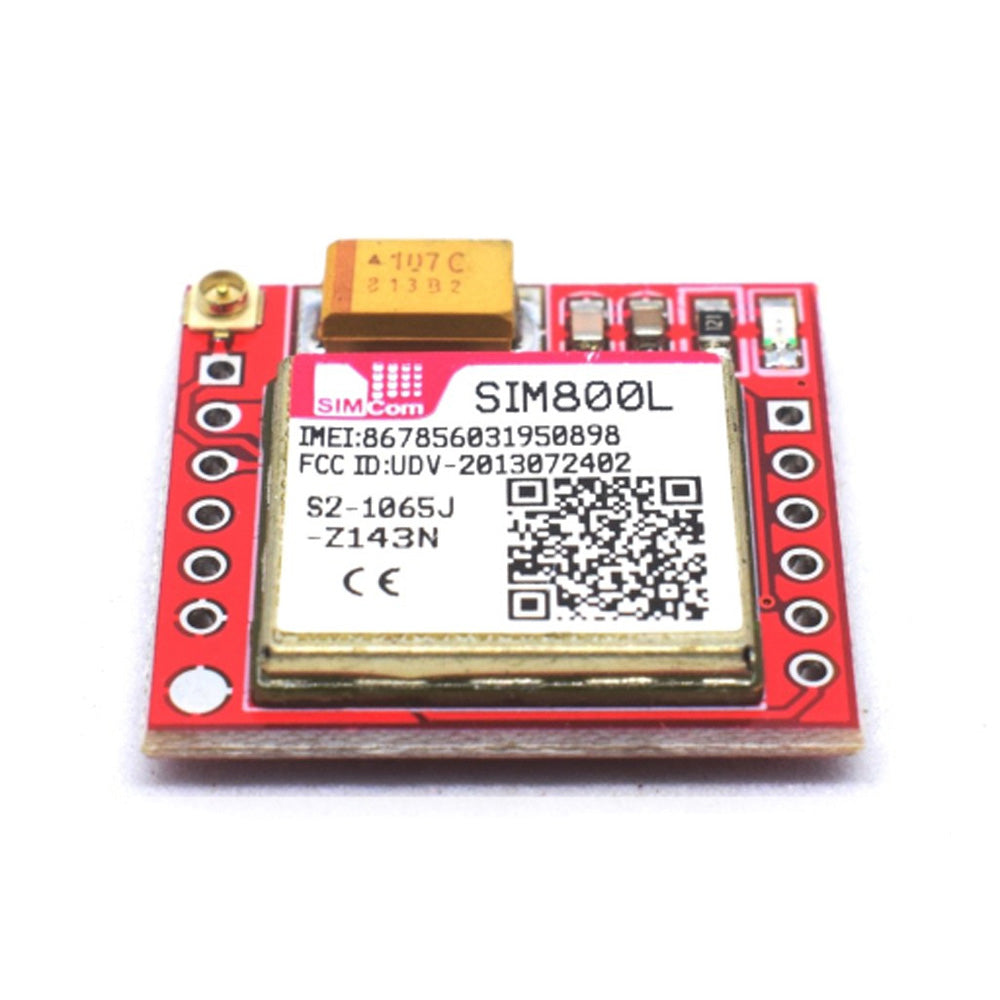

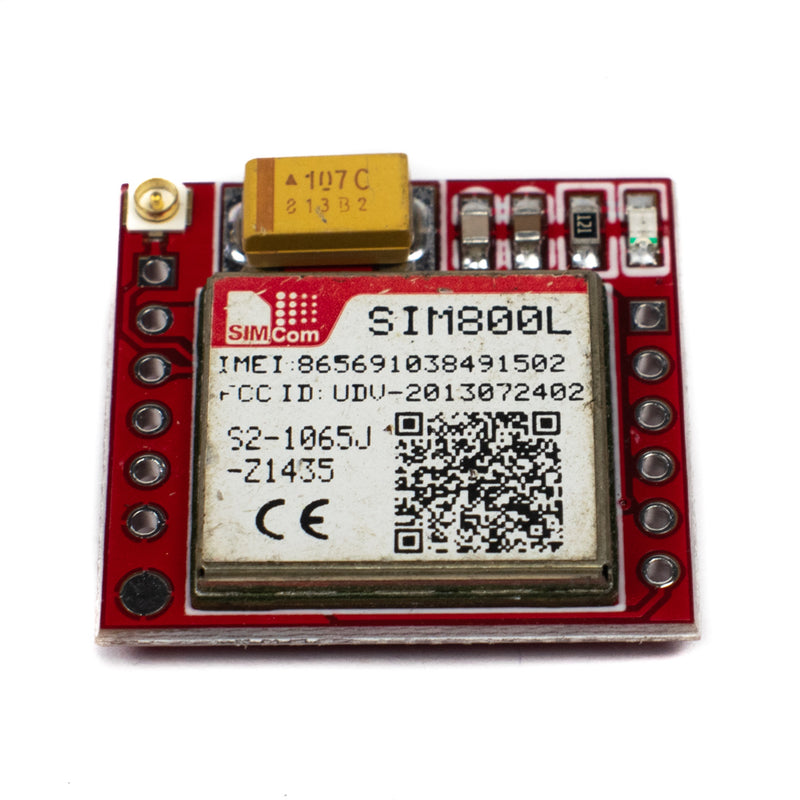

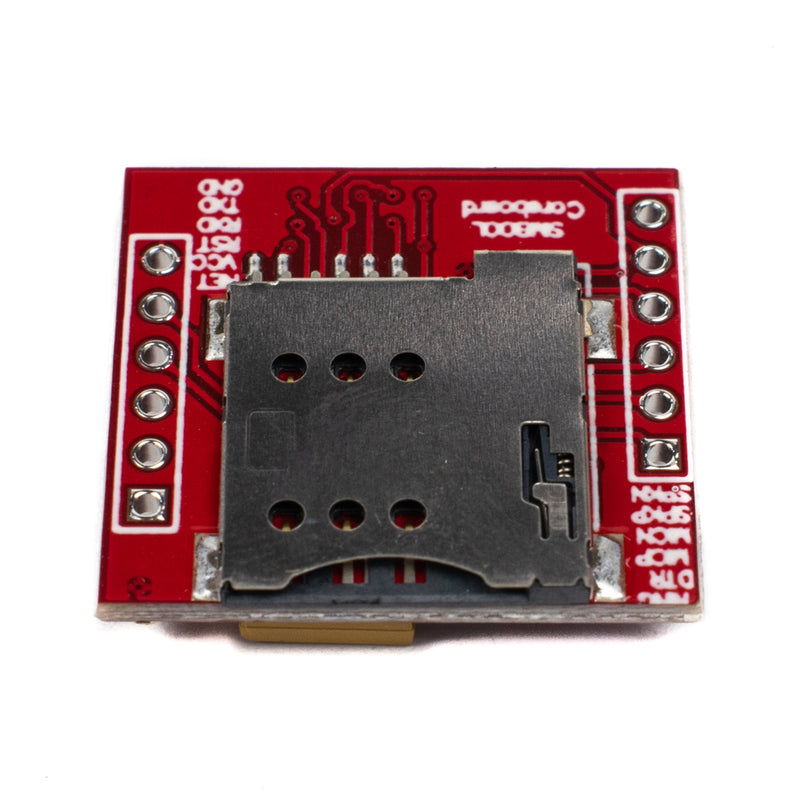

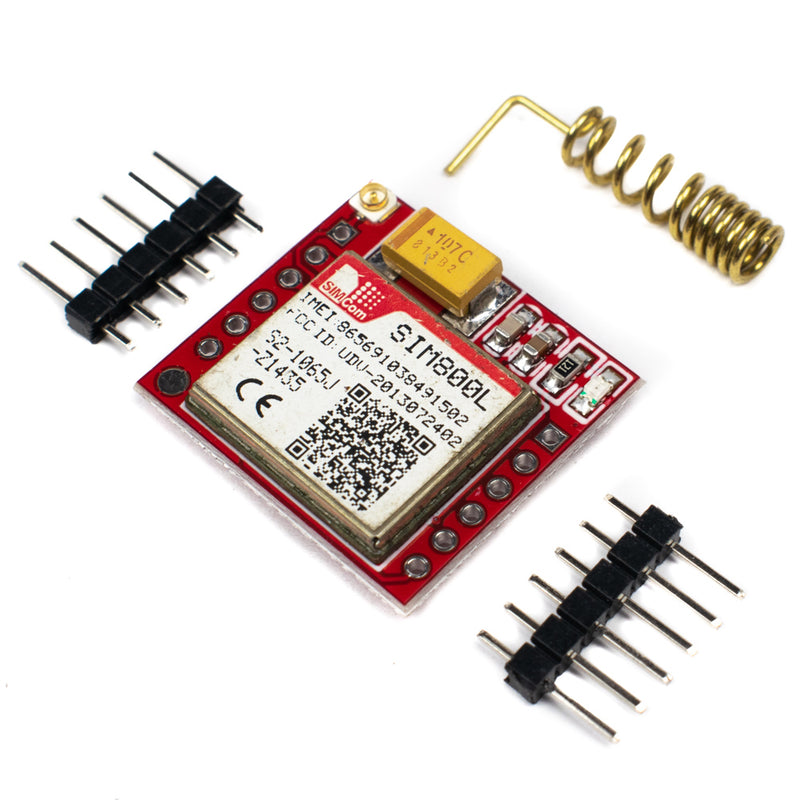

SIM800L GSM/GPRS module is a miniature GSM modem, which can be integrated into a great number of IoT projects. You can use this module to accomplish almost anything a normal cell phone can; SMS text messages, make or receive phone calls, connect to the internet through GPRS, TCP/IP, and more. The module supports quad-band GSM/GPRS network, meaning it works pretty much anywhere in the world. The SIM800L is a GSM module from Simcom that gives any microcontroller GSM functionality, meaning it can connect to the mobile network to receive calls and send and receive text messages, and also connect to the internet using GPRS, TCP.
Features:
- The SIM800L Module supports quad-band GSM/GPRS network, available for GPRS and SMS message data remote transmission.
- The SIM800L supports command including 3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands.
- The board also supports the A-GPS technique which is called mobile positioning. These features make it can also be a tracker module.
- Supports Real-Time Clock
- Micro SIM Card
Specifications
| Supply Voltage | 3.7-4.4 volts |
| Quad-Band | 850/950/1800/1900 MHz |
| Logic Level | 3-5 volts |
| Sleep Mode current consumption | 1 mA |
| Peak Current | 2 A |
| Interface type | UART(TTL Logic Level) |
| Size(LengthxWidth) | 23x35 mm |
| Country of Origin | China |
