Description
Rating at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
Features
- Surge overload -240~500 Amperes peak
- Low forward voltage drop
- Electrically isolated base -2000 Volts
- Solderable 0.25" FAST ON terminals
- Materials used carries UL recognition
Mechanical Data
- Mounting Position : Any
- Reverse Voltage : 50 to 1000 Volts
- Forward Current : 10/15/25/35/50 Ampere
Specifications

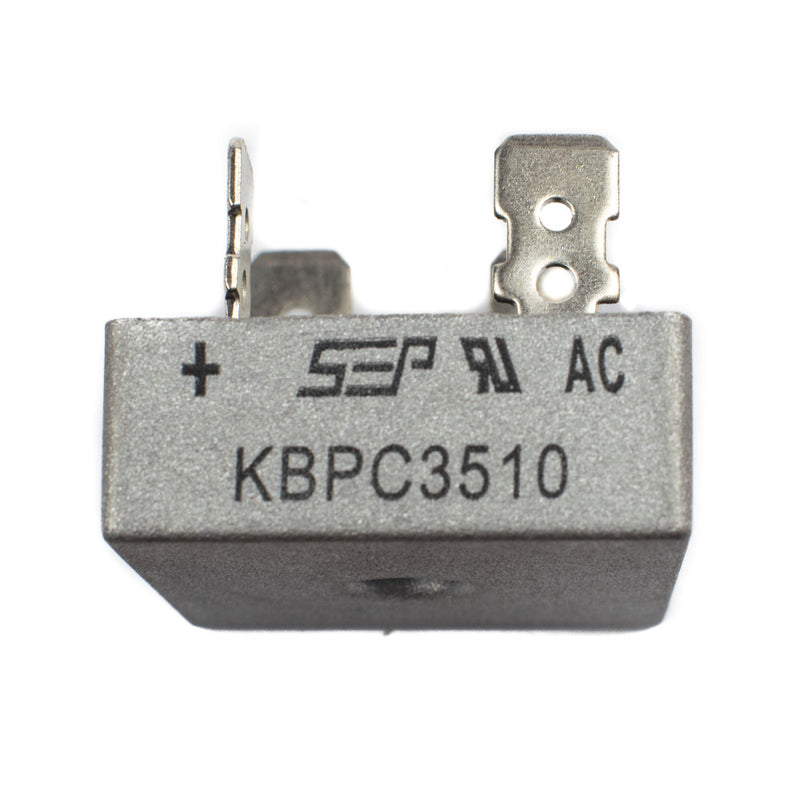

| Product Series | KBPC3510 | |
| Brand | SEP | |
| Package | DIP | |
| Repetitive Peak Reverse Voltage | 1000V | |
| Average Rectified Output Current | 50A | |
| Surge(Non repetitive)Forward Current | 500A | |
| Storage Temperature | -55 - +150 | |
| Junction Temperature |
|
|
| Dielectric Strength | 2.5kV | |
| Mounting Torque | 20 | |
| Max Peak Forward Voltage | 1.1 | |
| Max Peak Reverse Current | 10 | |
| Max Thermal Resistance | 0.7 | |
| Quantity | 50 | |
| Country of Origin | China |
