Description

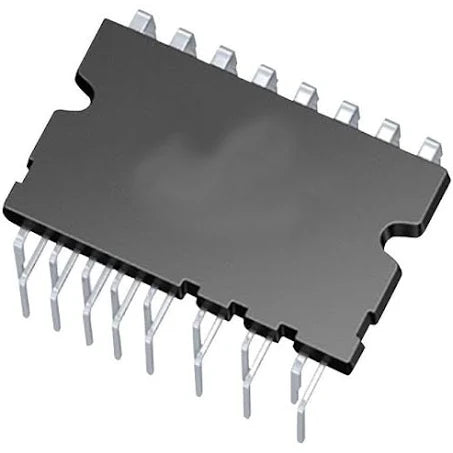

The SD20M60AC is an Intelligent Power Module (IPM) designed by Powerex. It operates at a voltage rating of 600V and a current rating of 20A. Integrated components include IGBTs, FRDs, and protection circuits. With its compact design and high reliability, it's suitable for various motor control applications in industrial settings.
Specifications:
- Voltage Rating: 600V
- Current Rating: 20A
-
Integrated Components:
- Insulated Gate Bipolar Transistor (IGBT)
- Fast Recovery Diode (FRD)
- Protection Circuits
- Package Type: Typically in a compact module package suitable for power electronic applications
- Control Interface: May include optical isolation for gate drive signals
- Applications: Suitable for motor control applications in industrial settings
-
Features:
- Compact design
- High reliability and efficiency
- Overcurrent and overtemperature protection
- Fault feedback signal
- Under-voltage lockout (UVLO)
