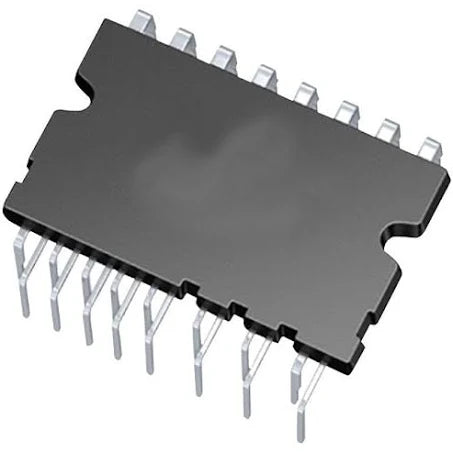

The SD20A60FA is an Intelligent Power Module (IPM) by Infineon Technologies. It features a voltage rating of 600V and a current rating of 20A. This IPM integrates IGBTs, FRDs, and protective features like overcurrent and overtemperature protection, making it suitable for motor control applications in various industries.
Specifications:
-
Voltage Rating: 600V
-
Current Rating: 20A
-
Integrated Components:
- Insulated Gate Bipolar Transistor (IGBT)
- Fast Recovery Diode (FRD)
-
Package Type: DIP (Dual In-line Package) with an insulated metal baseplate
-
Control Interface: Optically isolated gate drive signals
-
Protection Features:
- Overcurrent Protection
- Overtemperature Protection
- Fault Feedback Signal
- Under-voltage Lockout (UVLO)
-
Applications: Suitable for motor control applications in various industries, including HVAC systems, industrial drives, and power electronics systems.
