Description

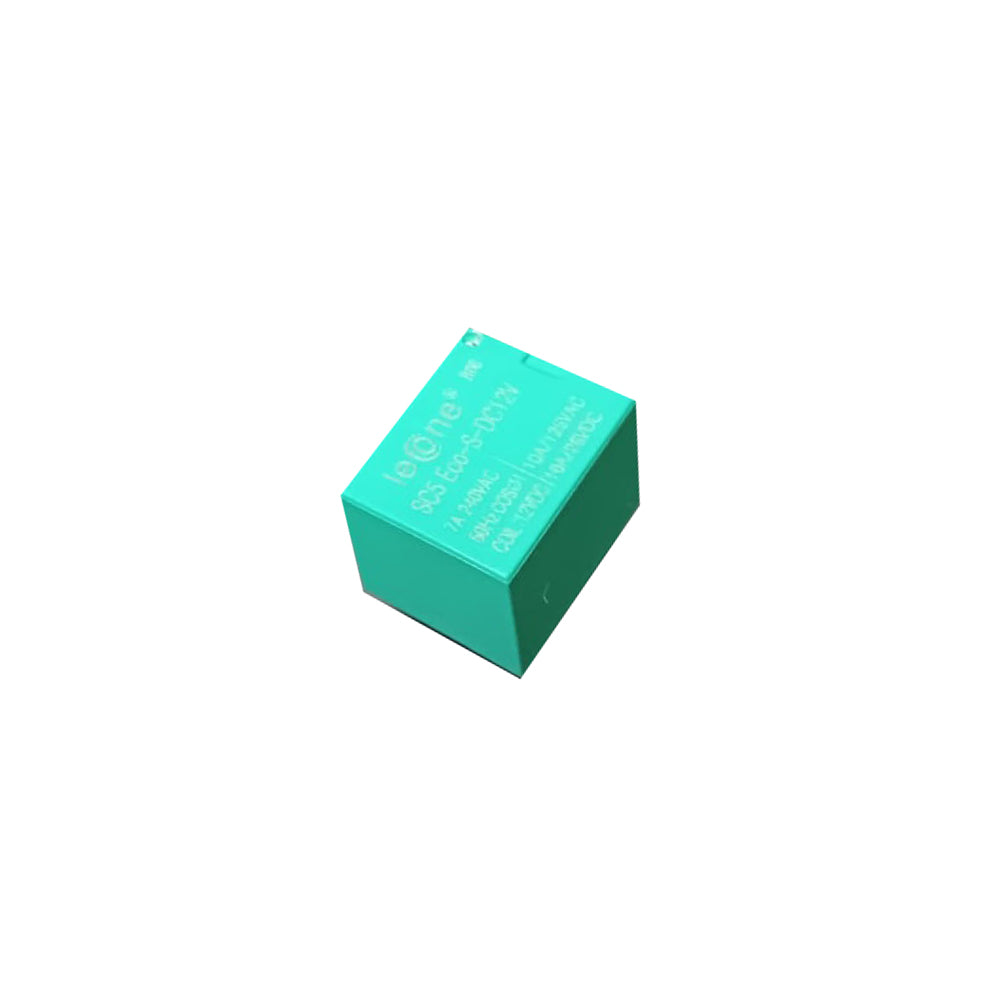

It's a general-purpose Relay 12V DC 10A. Mostly, relays are used to perform switching operations without manual touch. It is used to control the flow of current. General-purpose Relays are primarily used as a control circuit (relay sequence) for automated machinery employed at various industrial sites as well as for other control systems including lighting, air conditioning, and water treatment in buildings.
Applications:
- Relays are electrically operated switches
- It consists of a set of input terminals for a single or multiple control signals, and a set of operating contact terminals.
- Power relays open or close a circuit by using an electromagnetic coil for seamless power flow.
- The operating voltage of a relay is generally in DC.
Specification
| Brand Name | LEONE |
| Model | SC5 Eco-S-DC12V |
| Type | Signal Relay |
| Operating Voltage | 12V DC |
| DC Coil Operating Voltage | 28V DC/ 10A |
| AC Coil Operating Voltage |
125V AC/ 10A |
| Mounting Type | Through Hole |
| Size (L,W,H) | 19 x 15 x 15 mm |
| No. of Terminals | 5 |
| Quantity | 2 |
| Country of Origin | China |
