Description

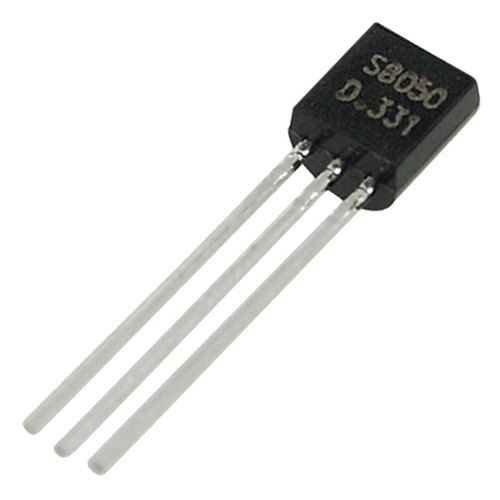

S8050 is a low voltage and high current transistor. It is a general-purpose PNP transistor designed for audio amplification and class B push-pull application. The collector current Ic is a function of the base current Ib for a given collector-emitter voltage VCE, and a change in the base current gives a corresponding amplified change in the collector current for a given collector-emitter voltage VCE.
Features:
- Its high current transistor
- Its used in Switching applications
- Its Collector-Emitter Voltage (VCEO) 20V
- Its maximum power is 2W
Specification
| Part Number | S8050 |
| Transistor Polarity | NPN |
| Collector-Emitter Voltage (VCEO) | 20V |
| Collector-Base Voltage (VCBO) | 30V |
| Continuous Collector-Current (Ic) | 700mA |
| Emitter-Base Voltage (VEBO) | 5V |
| Operating Temperature Range | -65°C to 150°C |
| DC Current Gain (hFE) | 120-400 |
| Current Gain Bandwidth | 100MHz |
| Maximum Power | 2 Watt |
| Output Capacitance | 9pF |
| Country of Origin | China |
