Description

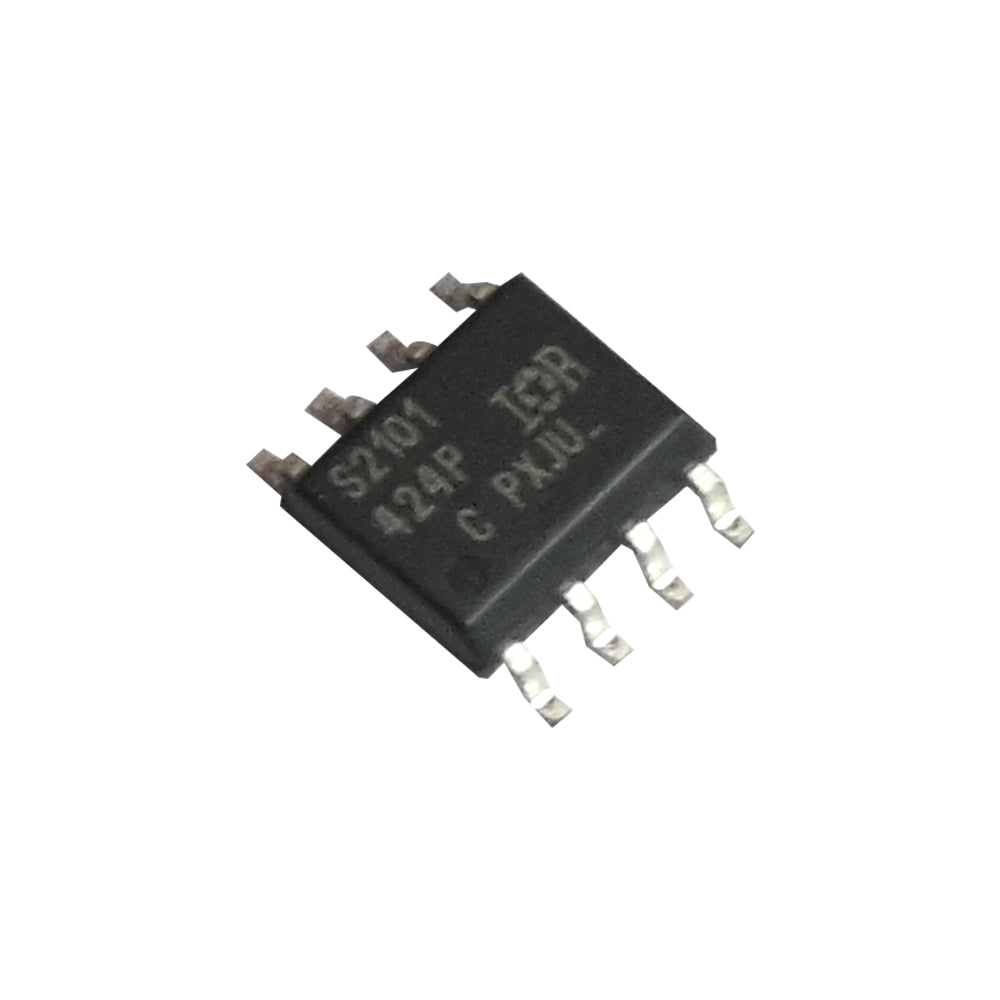

Its S2101 High and Low Side Driver SOIC-8 Package, S2101 is an independent high-side and low-side referenced output channel power MOSFET and IGBT driver with high voltage and high speed. Proprietary Ruggedized monolithic construction is possible because of HVIC and latch-immune CMOS technologies. The logic input is compatible with 3.3 V or conventional CMOS or LSTTL output. The output drivers have a high pulse current buffer stage that is built with little driver cross-conduction in mind. A high side N-channel power MOSFET or IGBT that operates up to 600 V can be driven using the floating channel.
Features:
- Floating channel designed for bootstrap operation
- Fully operational to +600 V
- Tolerant to negative transient voltage, dV/dt immune
- Gate drive supply range from 10 V to 20 V
- Undervoltage lockout
- 3.3 V, 5 V, and 15 V logic input compatible
- Matched propagation delay for both channels
- Outputs in phase with inputs
| Specifications | |
|---|---|
| Power Dissipation | 1W |
| Part Number | S2101 |
| Temperature | -55 to 150 |
| Mounting Type | SMD |
| Package | SOIC-8 |
| No. of Pins | 8 |
| Current | 130 mA/270 mA |
| Type | Driver IC |
| Brand | International Rectifier |
