Description

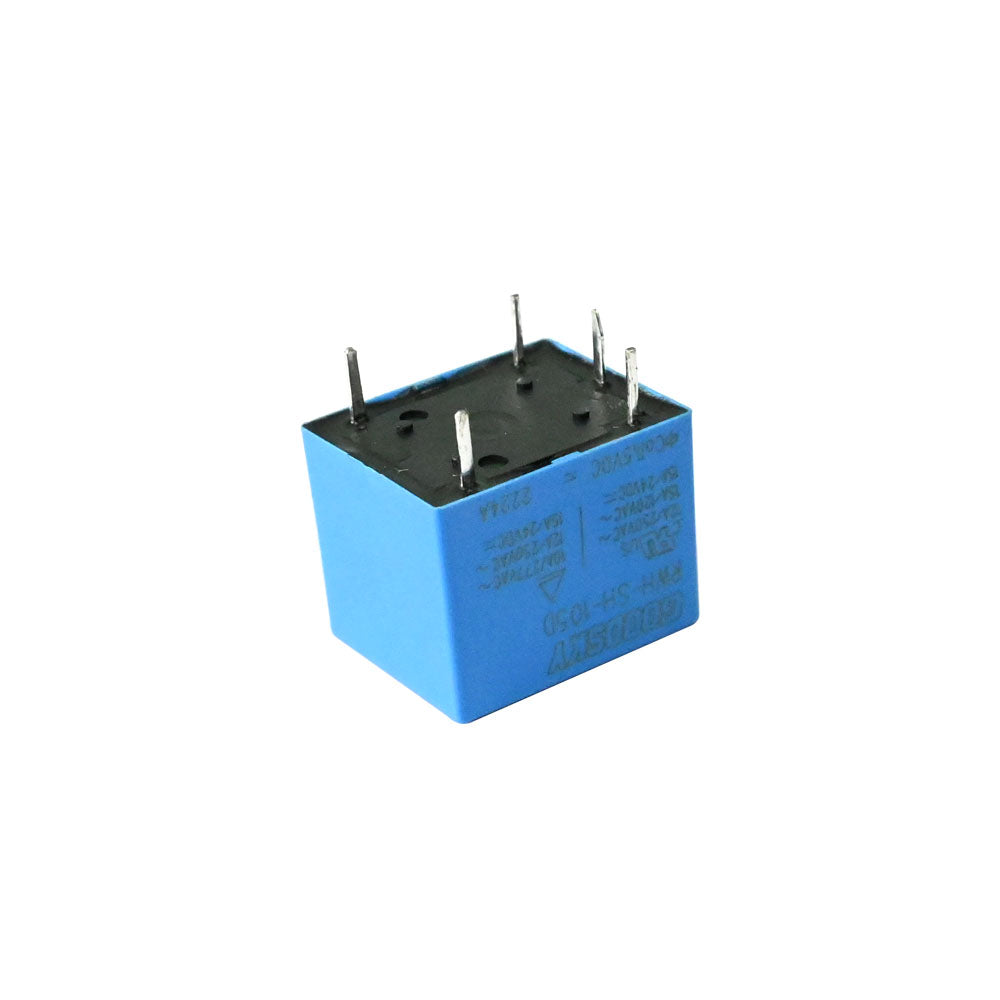

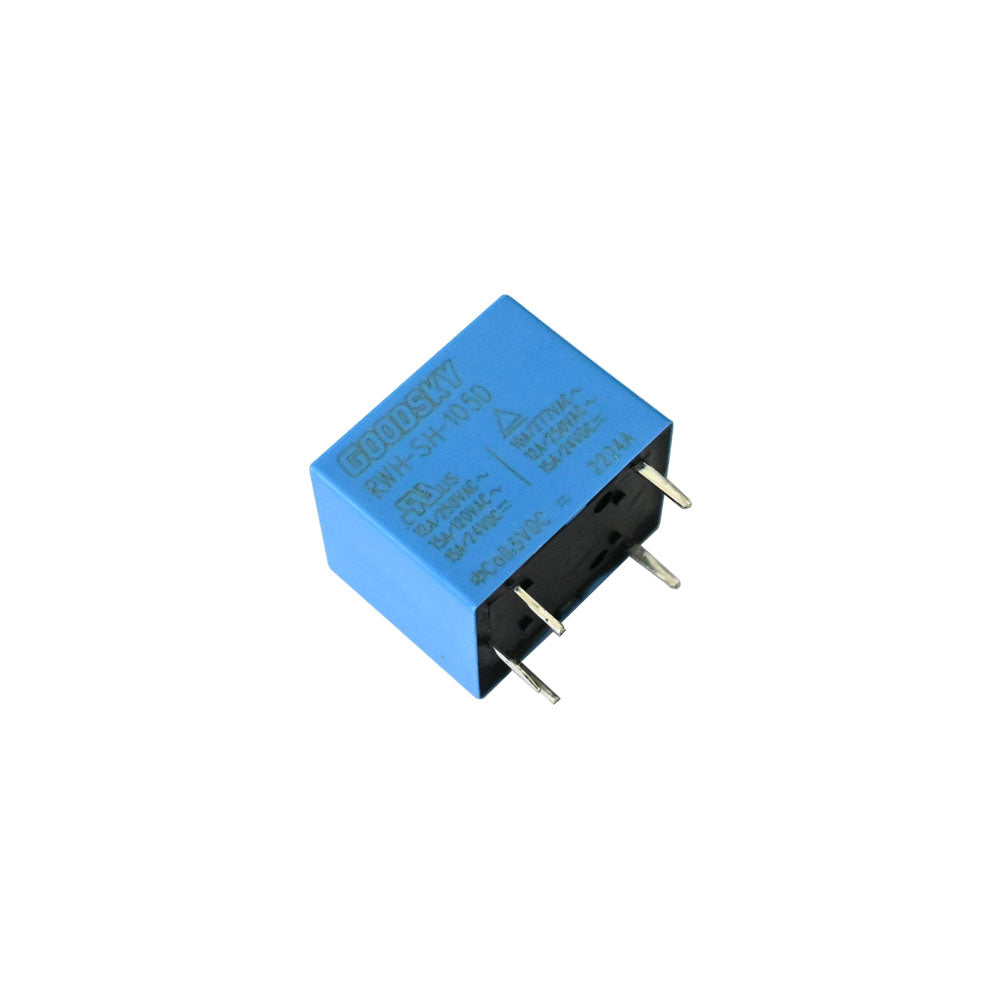

It's a general-purpose Relay 5V DC 15A. Mostly, relays are used to perform switching operations without manual touch. It is used to control the flow of current. General-purpose Relays are primarily used as a control circuit (relay sequence) for automated machinery employed at various industrial sites as well as for other control systems including lighting, air conditioning, and water treatment in buildings.
Applications:
- Relays are electrically operated switches
- It consists of a set of input terminals for a single or multiple control signals, and a set of operating contact terminals.
- Power relays open or close a circuit by using an electromagnetic coil for seamless power flow.
- The operating voltage of a relay is generally in DC.
Specification
| Brand Name | GOODSKY |
| Model | RWH-SH-105D |
| Type | Signal Relay |
| Operating Voltage | 5V DC |
| AC Coil Operating Voltage | 240V AC/ 12A |
| AC Coil Operating Voltage |
120V AC/ 15A |
| DC Coil Operating Voltage | 24V DC/ 15A |
| Mounting Type | Through Hole |
| Size (L,W,H) | 19 x 15 x 15 mm |
| No. of Terminals | 5 Pin |
| Quantity | 1 |
| Country of Origin | China |
