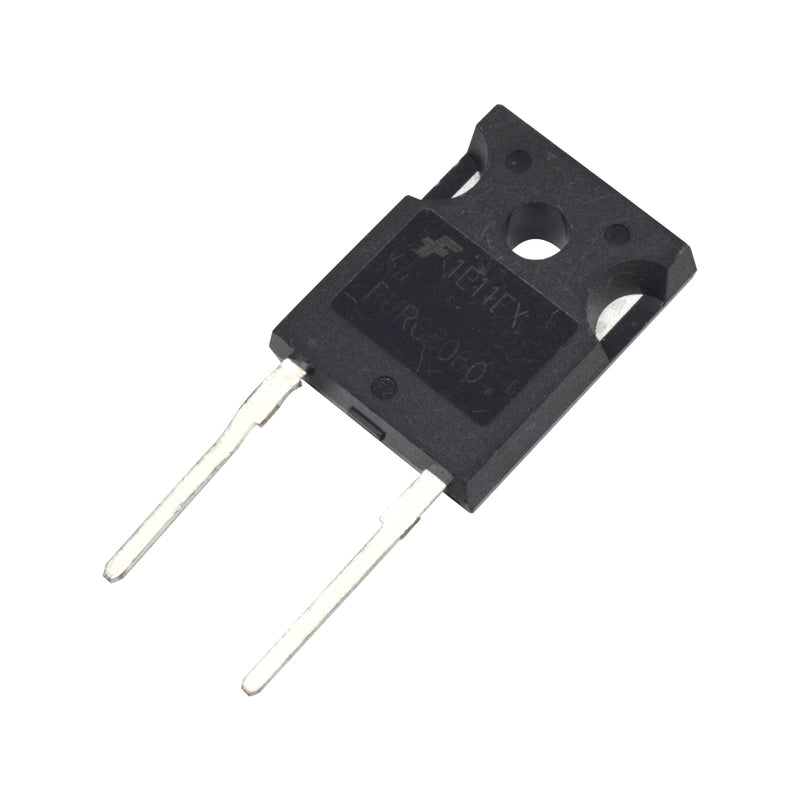

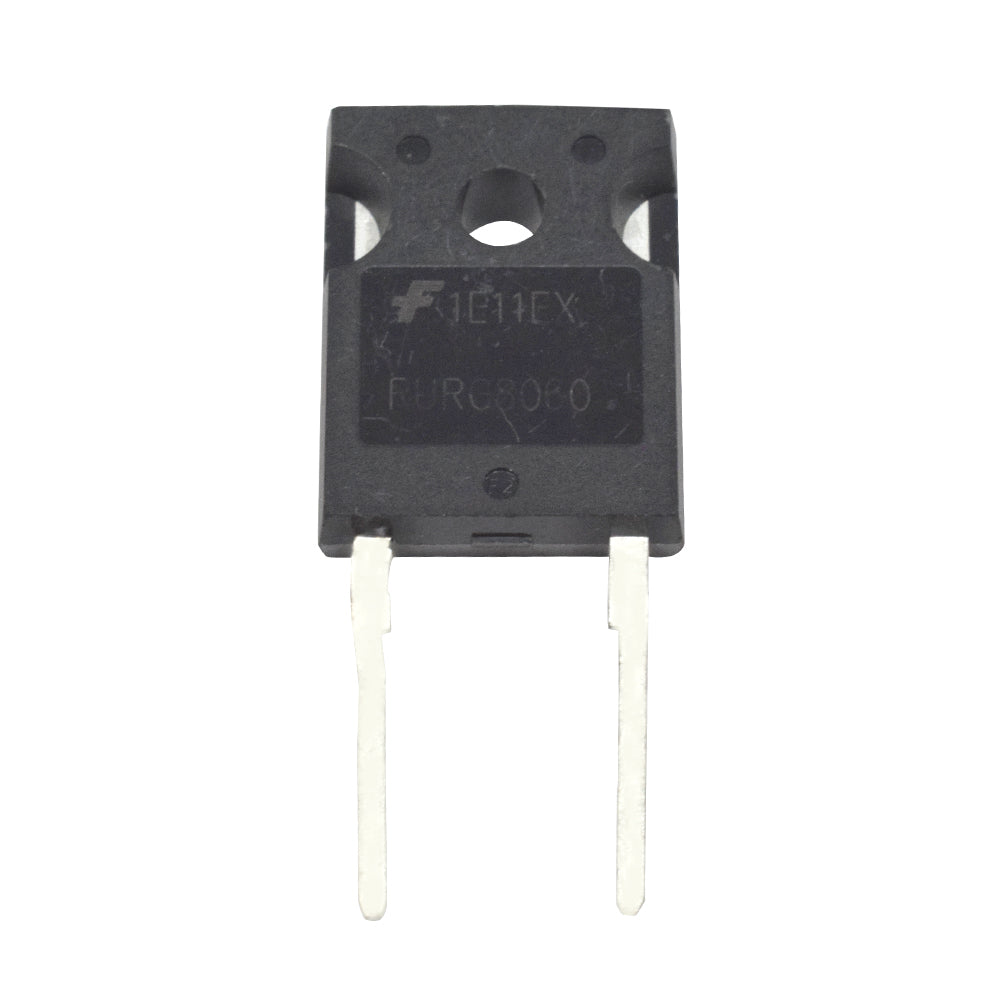

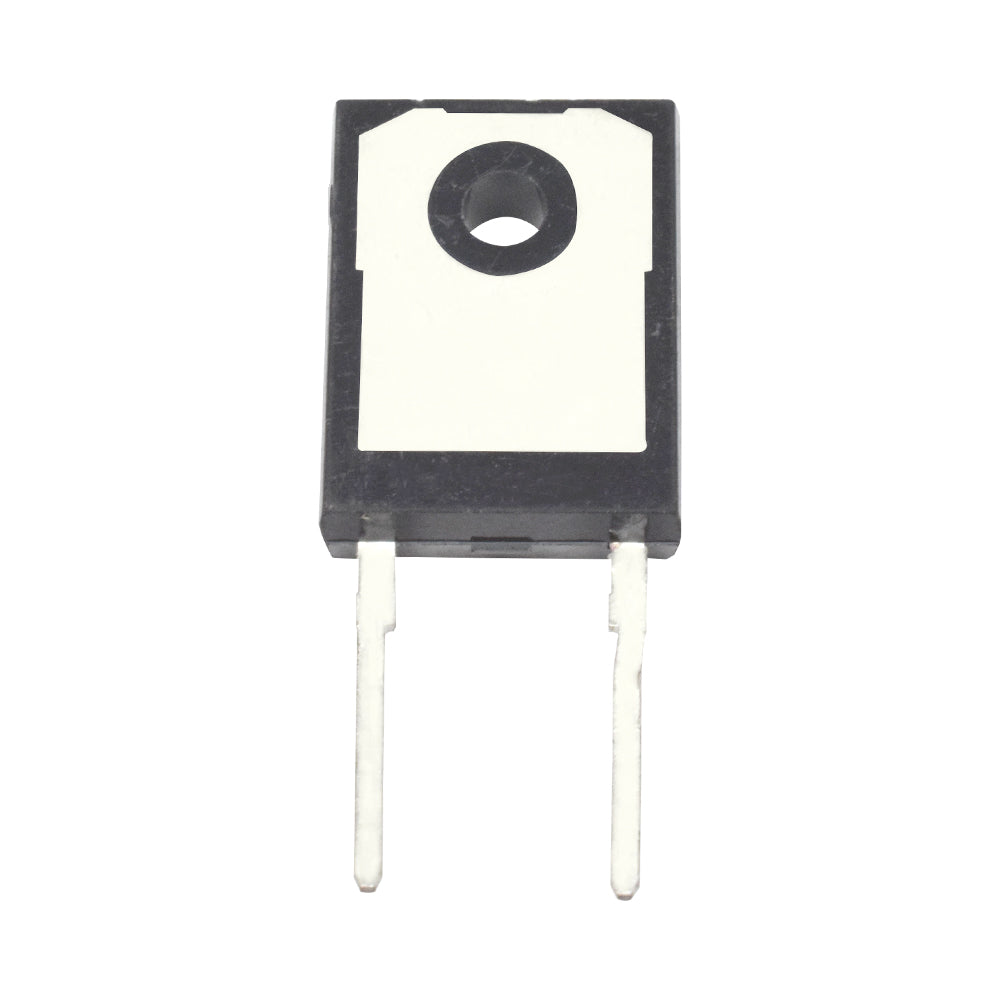

RURG8060 Ultrafast diode

Save ₹ 30.00
Sold By: Sanpra EnterprisesSKU: SN421

Price:
Sale price₹ 215.00 Regular price₹ 245.00

Tax included Shipping calculated at checkout

Min Qty:

Description

An ultrafast diode with soft recovery properties (t r r 75ns), the RURG8060. It is of silicon nitride passivated ion-implanted epitaxial planar structure with low forward voltage drop. This component is designed to be used in a range of switching power supply and other power switching applications as a freewheeling/clamping diode and rectifier. Its low stored charge and rapid recovery with soft recovery feature reduce electrical noise and ringing in many switching circuits, hence lowering switching transistor power loss.

Features

  • Its ultrafast  with soft recovery time <75nS

  • its max reverse voltage is 600V

  • Its operating temperature is 175 degree centigrade

  • avalanche energy rated
Specification
Part number RURG8060
Type Ultrafast diode
Package TO-247
Brand Fairchild
Average Rectified Forward Current 80A
DC Blocking Voltage 600V
Maximum power dissipation 180W
