Description

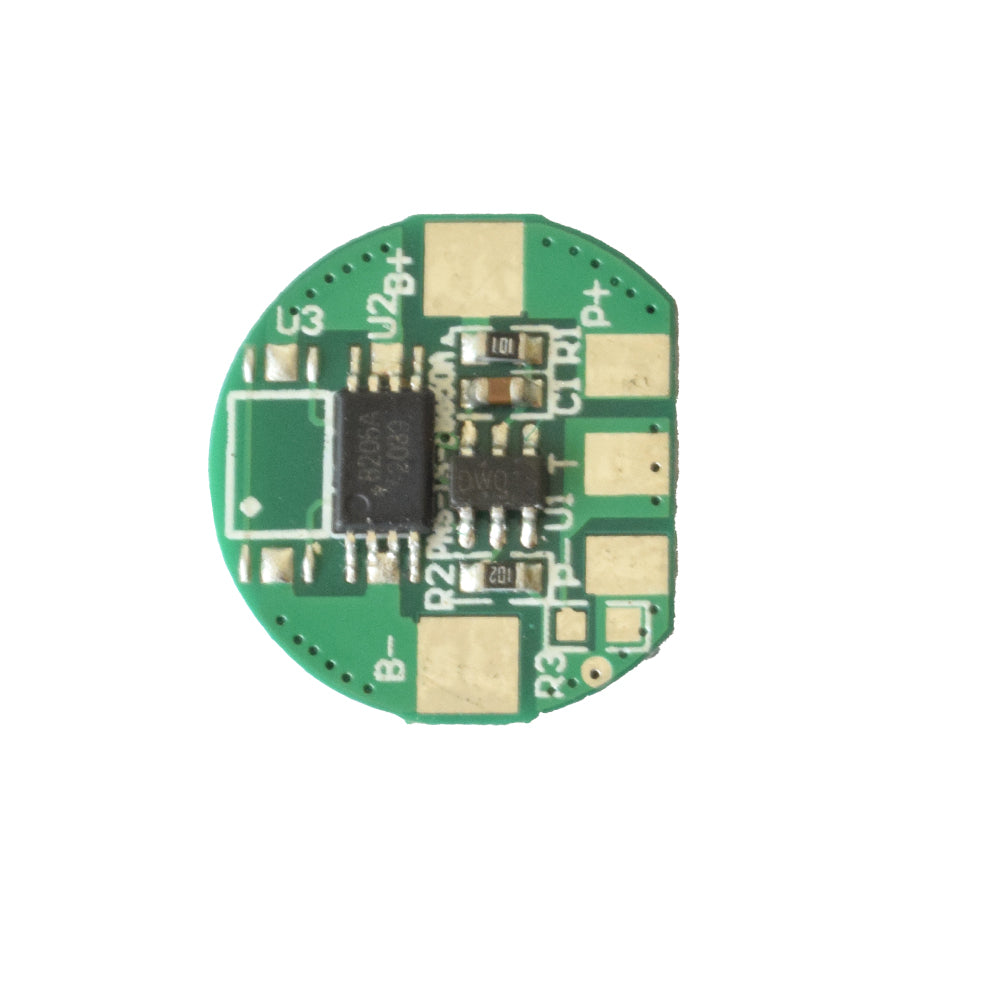

Its a Battery charger controller module it has an eight-pin IC 8205A is an IC it includes high-accuracy voltage detection circuits and delay circuits in single-use, making it possible for users to monitor the status of 4-series or 5-series cell lithium-ion rechargeable battery. It has DW01 IC, The DW01 battery protection IC is designed to protect lithium-ion/polymer batteries from damage or degrading the lifetime due to overcharge, over-discharge, and/or overcurrent for one-cell lithium-ion/polymer battery-powered systems, such as cellular phones. Over-charge, over-discharge, over-current, and short circuit protection are all included in the lithium-ion charge protection circuit. Built-in three-stage over-current detection circuit for 3.7 V lithium-ion batteries of various shapes. This is a high-precision voltage detection circuit with a low standby current consumption.
Features:
- It has two IC
- Small size
- Battery Protection
Specifications:
| Model | 3.7V Lithium ion BMS |
| Type | Battery Charger Controller |
| Voltage | 3.7V |
| Current | 2A |
| No of IC used | 2 |
| IC used |
8205A |
| Diameter | 16mm |
| Thickness | 1.8mm |
| Country of Origin | China |
