Description

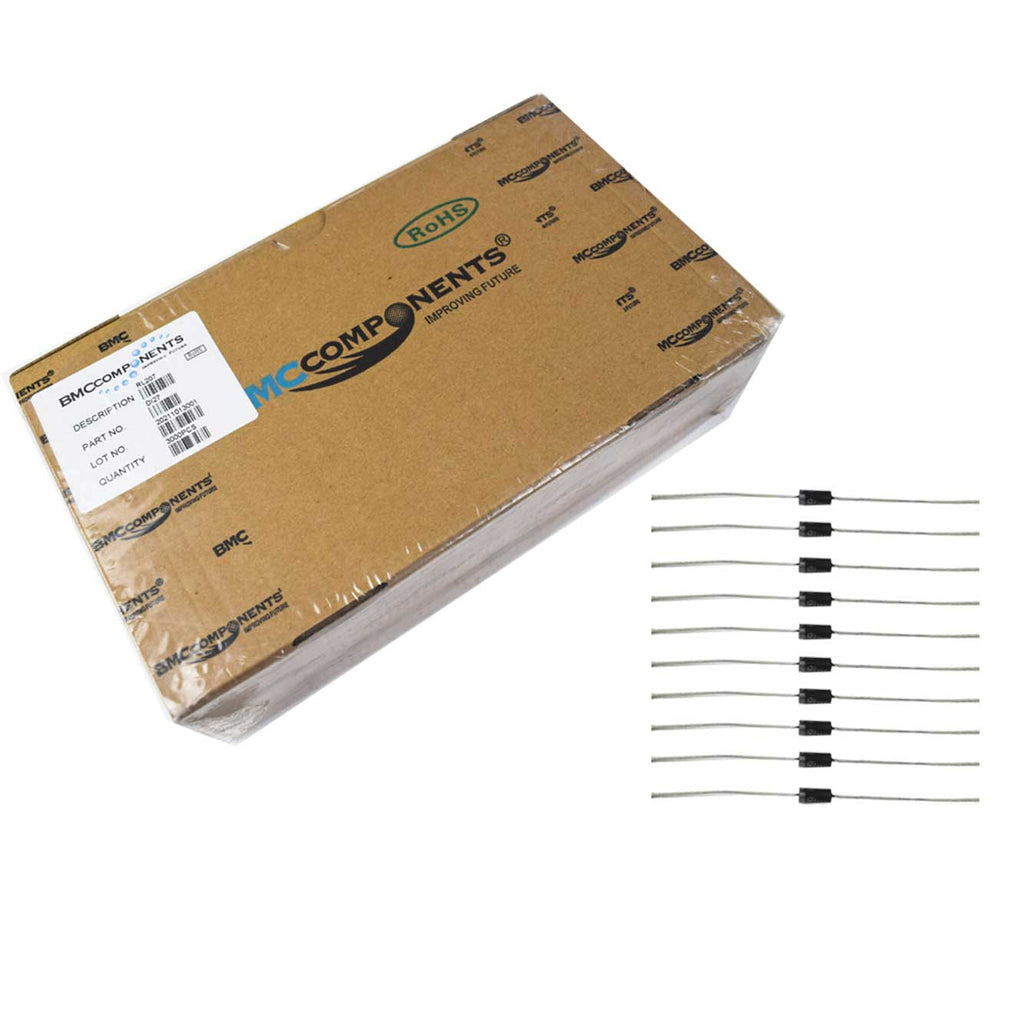

The RL207 is a 2A 1000V Standard Diode in DO-15 Case Package. It is a two-terminal passive component with Axial leads are solderable. The cathode end polarity is indicated by the colour band. It has diffused junction, low forward voltage drop, high current capability, high surge current capability.
Features
- Diffused Junction
- Low Forward Voltage Drop
- High Current Capability
- High Reliability
- High Surge Current Capability
Specifications
| Model | RL207 |
| Make | BMC Components |
| Type | Standard Diode |
| Max. Average Forward Rectified Current | 2,0 Amp |
| Max. Recurrent Peak Reverse Voltage | 1000V |
| Forward Surge Current | 70 Amp |
| Case | DO-15 |
| Mounting Type | Through Hole |
| No of Pin | 02 |
| Operating Temperature Range | -65 to +125 °C |
| Quantity | 3000 |
| Country of Origin | China |
