Description

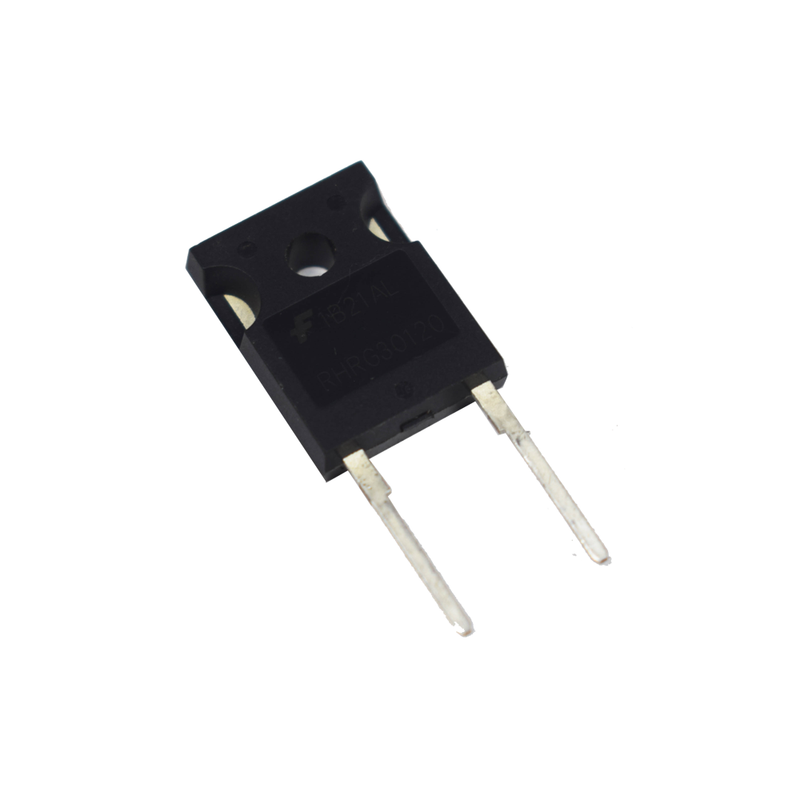

The RHRG30120 is a 30A 1200V Diode with a TO−247 Package. The RHRG30120 is a high-speed diode with a soft recovery characteristic. It is silicon nitride passivated ion-implanted epitaxial planar construction with half the recovery time of ultrafast diodes. These devices are designed for use as freewheeling/clamping diodes and diodes in a wide range of switching power supplies and other power-switching applications. Because of their low stored charge and hyper fast soft recovery, they reduce ringing and electrical noise in many power switching circuits, lowering power loss in the switching transistors.
Features
- Hyper fast Recovery trr = 85 ns (@ IF = 30 A)
- Max Forward Voltage, VF = 3.2 V (@ TC = 25°C)
- 1200 V Reverse Voltage and High Reliability
- Avalanche Energy Rated
- This Device is Pb−Free and is RoHS Compliant
- Switching Power Supplies
- Power Switching Circuits
- General Purpose
Specifications
| Model | RHRG30120 |
| Brand | Fairchild |
| Working Peak Reverse Voltage | 1200 V |
| Peak Repetitive Reverse Voltage | 1200 V |
| DC Blocking Voltage | 1200 V |
| Average Rectified Forward Current | 30 A |
| Repetitive Peak Surge Current (Square Wave, 20 kHz) | 60A |
| Maximum Power Dissipation | 125W |
| Mounting Style | Through Hole |
| Lead Pin | 02 |
| Package | TO247 |
| Operating and Storage Temperature | −65 to 175°C |
| Country of Origin | China |
