Description

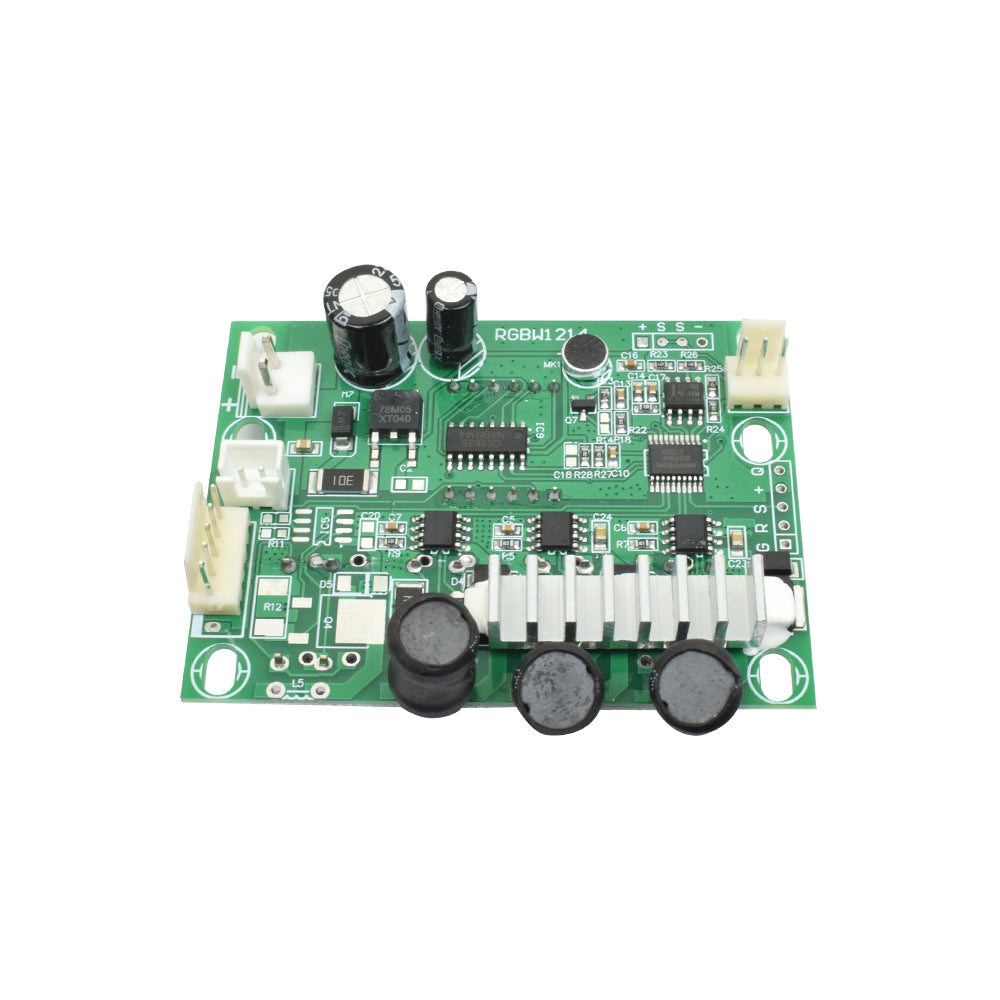

Its an RGBW LED controller mother board which is used to control the LED's color it can control four colors like Red, Green, Blue, White. This motherboard has too many IC every ICs have their own functions like CS1635 its micro love chip LED driver which is used to drive the LED. 78M05 series of three-terminal positive regulators are available in the SMD package with several fixed output voltages making it useful in a wide range of applications. MS51FB9AE is embedded with based on 1T 8051-based CMOS microcontroller, runs up to 24 MHz, features 16 K bytes flash, 1 K bytes SRAM, and 4 K bytes loader ROM for the ISP, also equipped with rich peripherals: 2 sets of UART; 1 set of I²C, and 1 set of SPI, 18 GPIO, 8 channels of 12-bit ADC, Watchdog Timer, Window Watchdog Timer and 6*16-bit PWM channel, package is available in TSSOP20. It has a super cap 220uF 50V. It has three male connector and a Female connector.
Features:

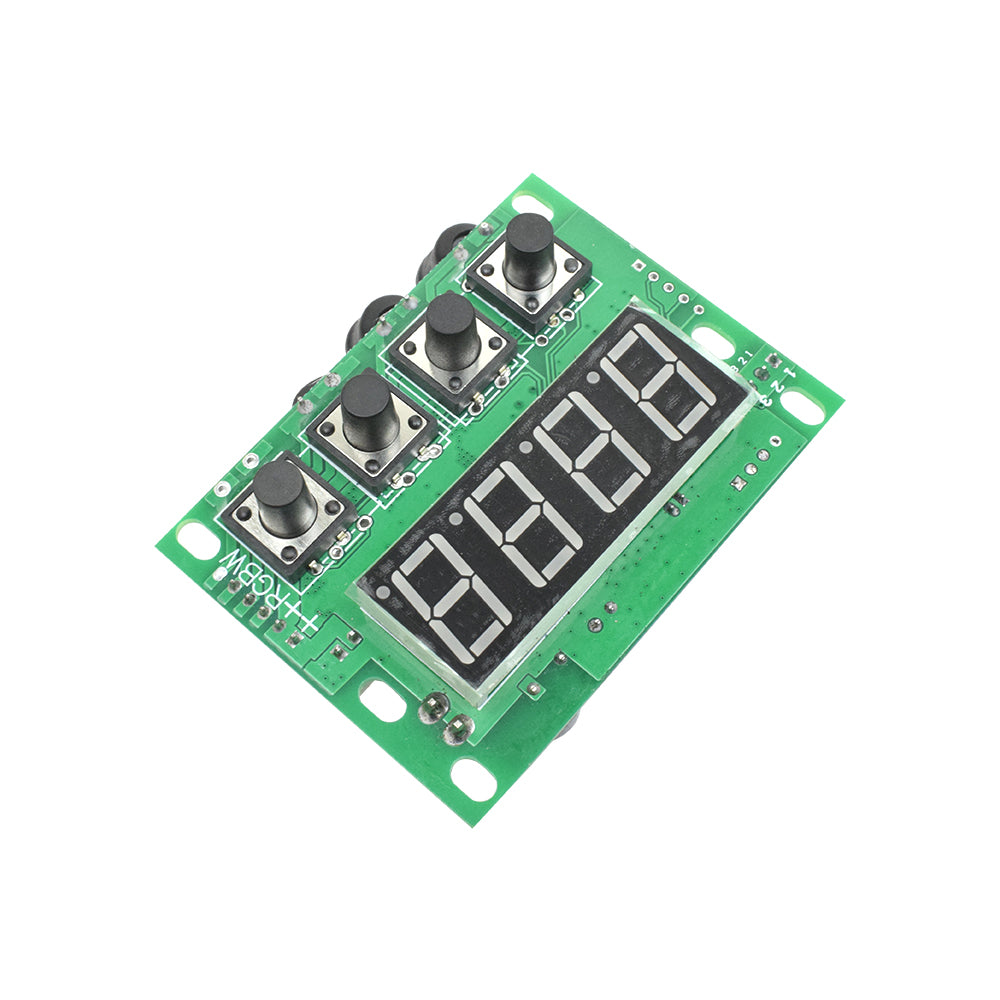

- It has 4 push Buttons

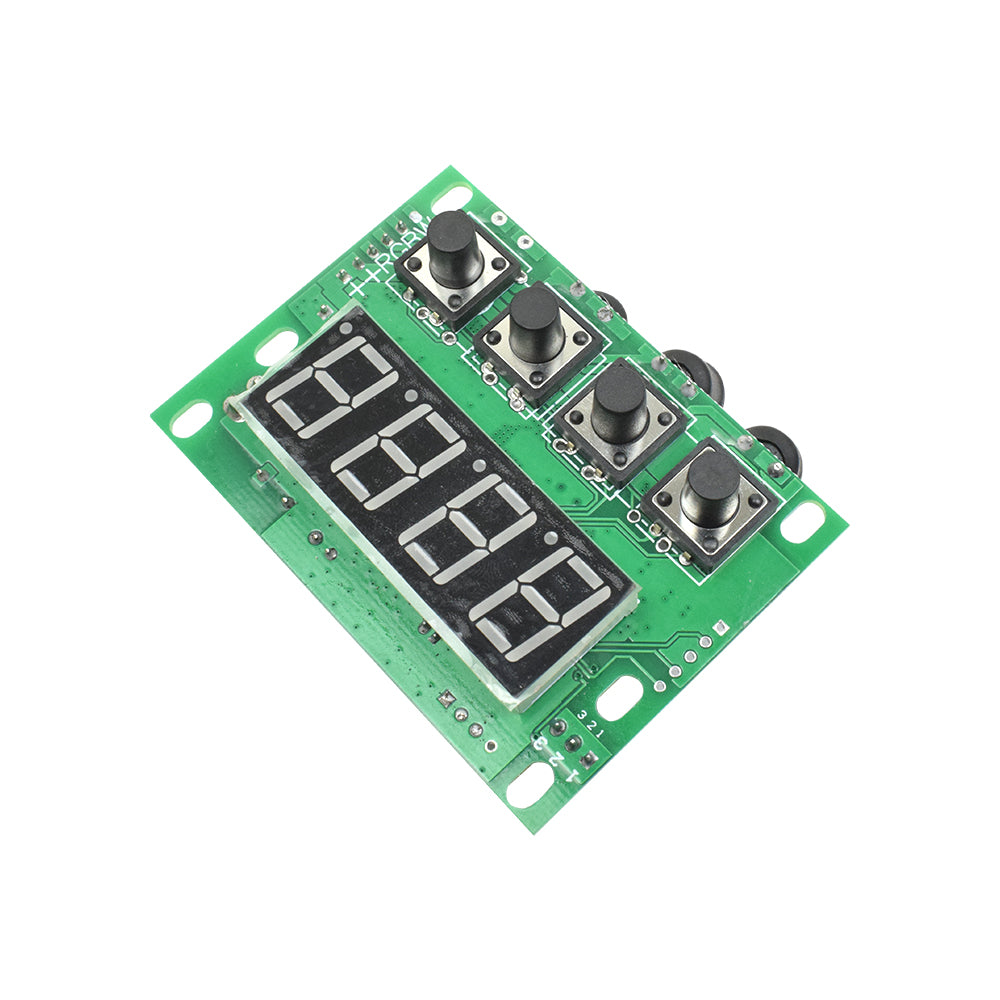

- It has four set of Seven Segment Display
- It has a connector for RGBW LEDs which is used to connect with LED Board
- It has an SMD mic
Specifications:
| Model | RGBW1214 |
| Type | LED Controller Mother |
| 7 Segment Display | 5461BS-1 30 |
| No of Push Buttons | 4 |
| Dimensions | 74mmx54mmx30mm |
| Country of Origin | China |
