Description

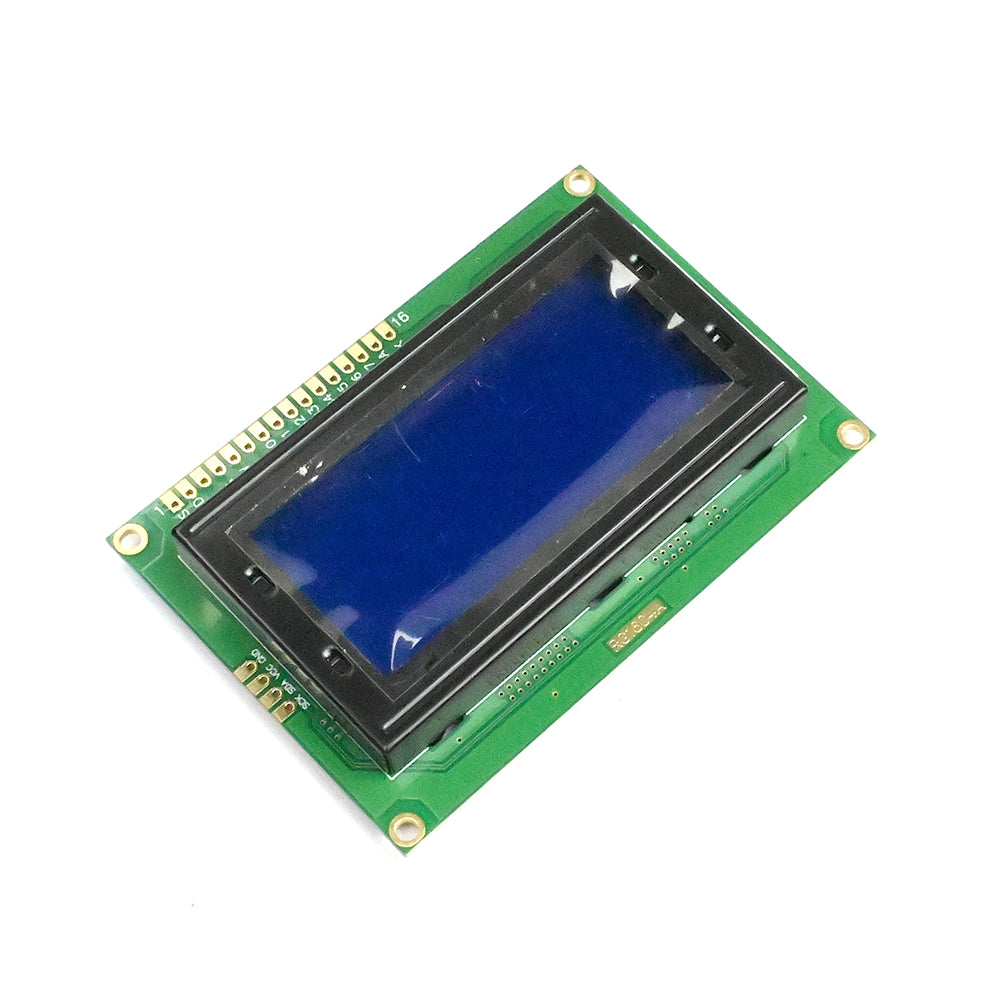

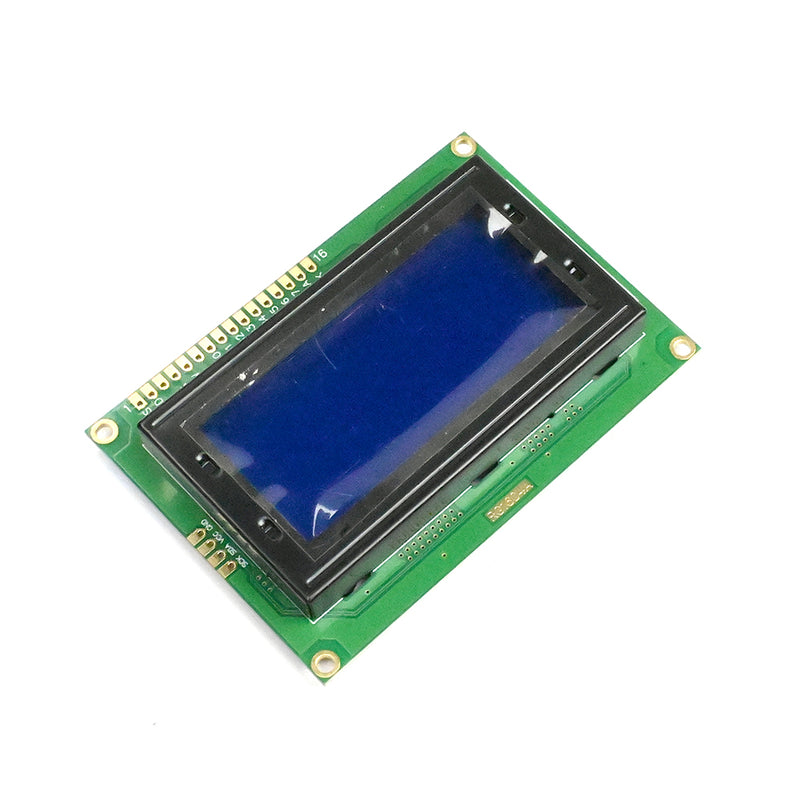

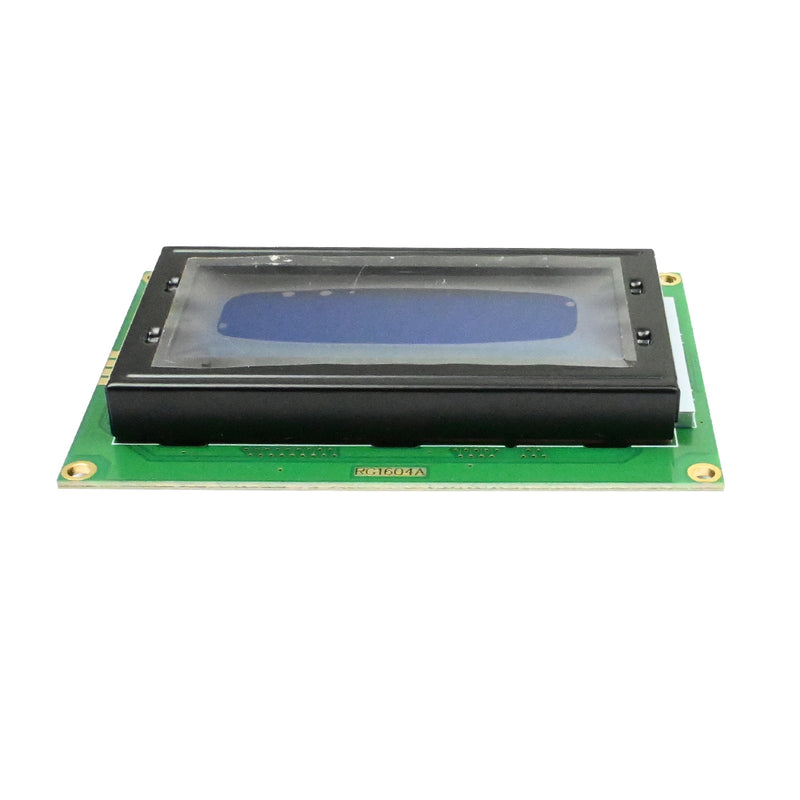

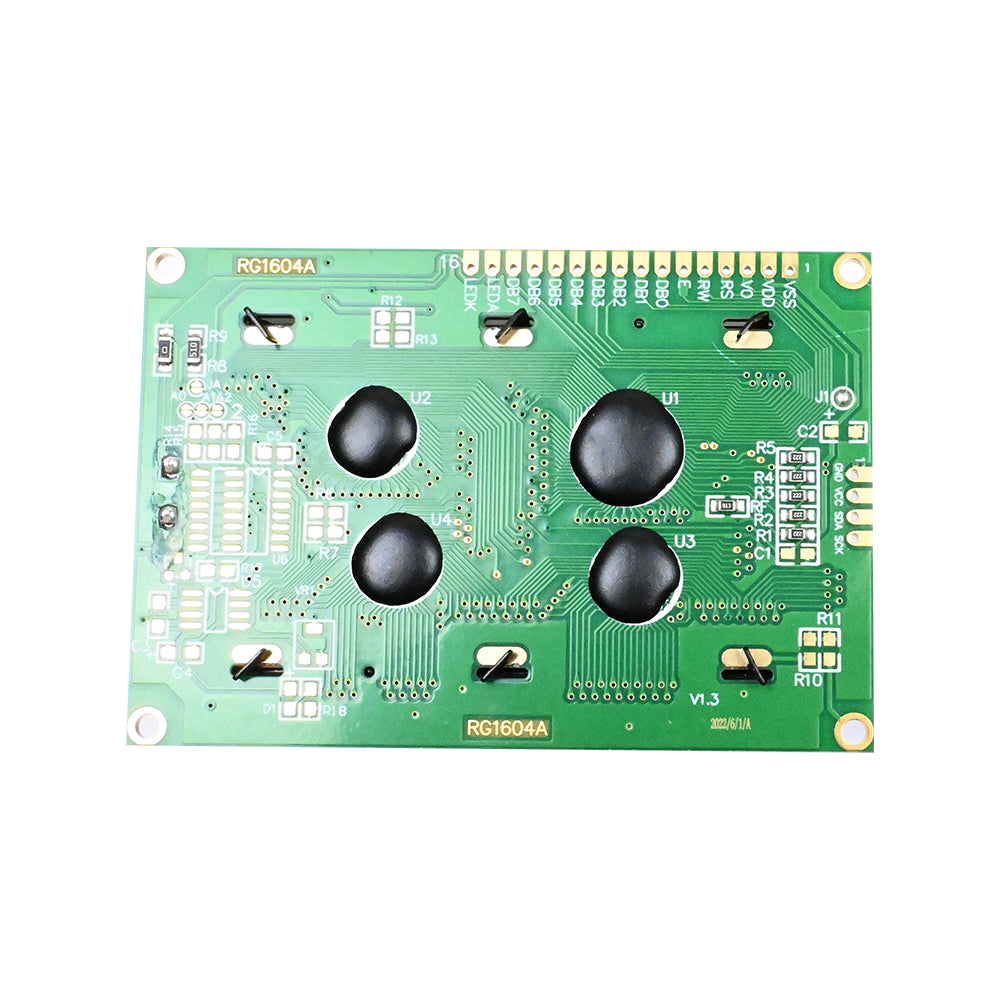

Its RG1604A 5V Character 16X4 LCD Display. It can display 16 characters per line and there are 4 such lines. It uses standard 16-pin interface. It is based on the SPLC780 or S6A0069 display controller, making it simple to connect this display with the majority of microcontrollers in a variety of applications. Its extreme popularity ensures that no matter which micro controller platform you are using, you will definitely find ready libraries to use this LCD.
Features
- 1/16 Duty Cycle
- Built-in controller ST7066 or Equivalent
- LED can be driven by PIN1, PIN2, PIN15, PIN16 or A and K
- 5x8 dots includes cursor
Specifications
| Model | RG1604A |
| Brand | Raystar Optronics |
| Dimensions | 87X60X10.5 |
| Voltage | 5V |
| Country of Origin | China |
