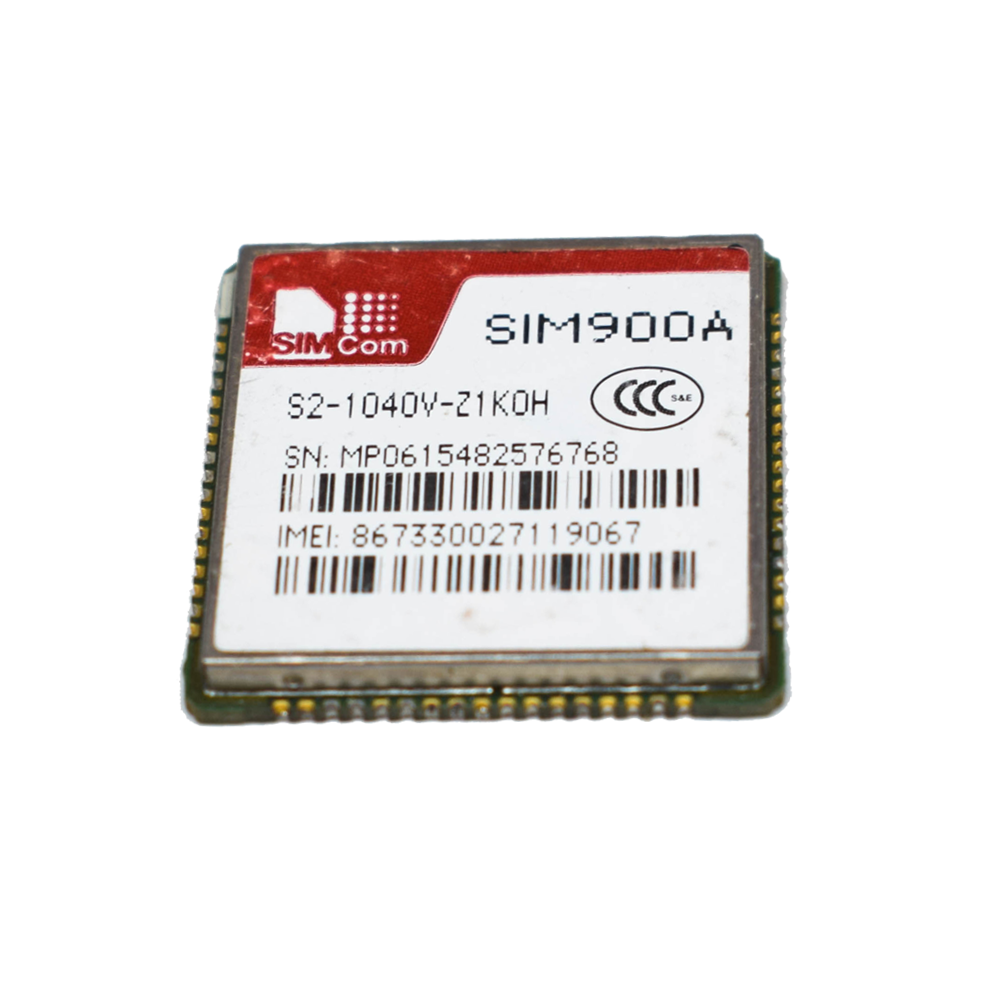

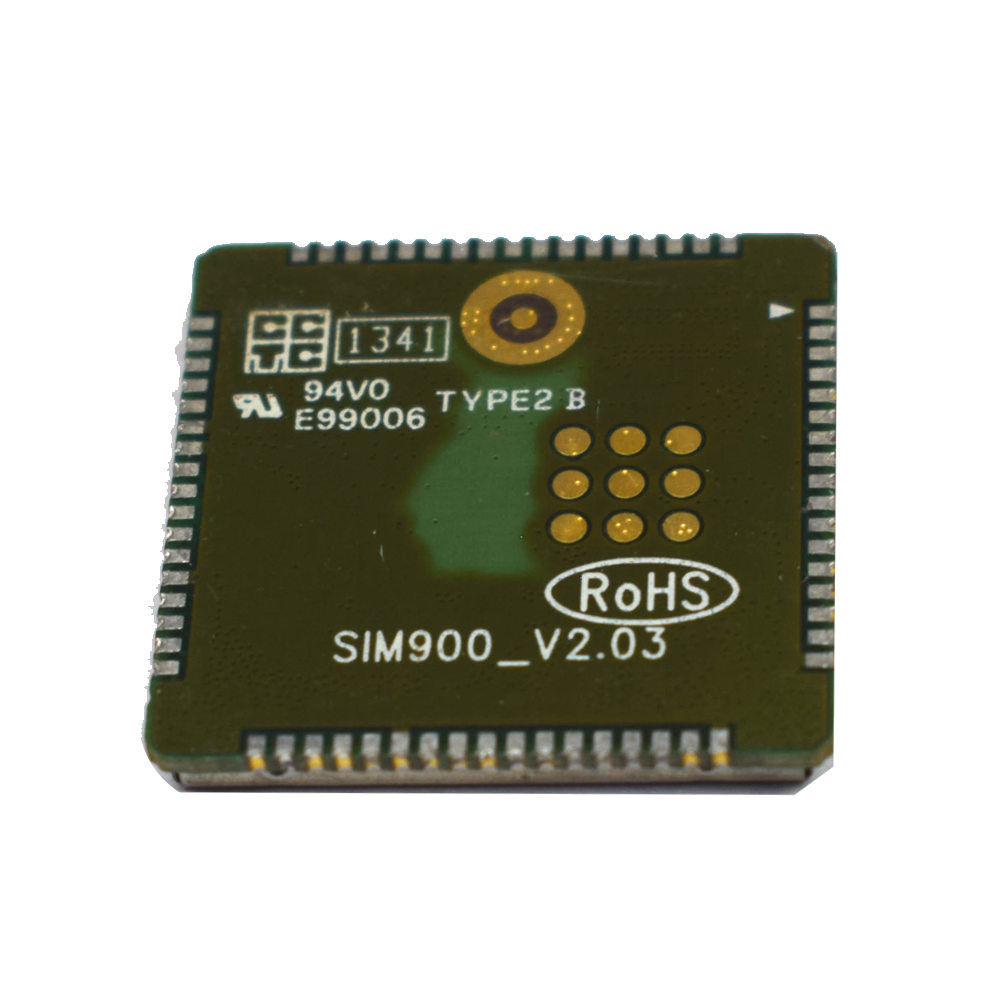

Refurbished SIM900A GPRS Module

Sold By: EnGenius LabSKU: ENG-85

Price:
Sale price₹ 430.00

Tax included Shipping calculated at checkout

Min Qty:

Description

This Refurbished SIM900A GSM Module is the smallest and cheapest module for GPRS/GSM communication. It is common with Arduino and microcontrollers in most embedded applications. The module offers GPRS/GSM technology for communication with the use of a mobile sim. It uses a 900 and 1800MHz frequency band and allows users to receive/send mobile calls and SMS. The keypad and display interface allows the developers to make customized applications with it. Furthermore, it also has modes, command mode and data mode.                                                                                          The Module SIM900A looks like a single chip, but it has a bunch of features that can help to build almost many commercial applications. Although there are a total of 68 pins on SIM900A and using these pins helps to build the applications. But we will need a few pins if you use a module for interfacing with Arduino.

Pin Configuration

Applications

  • The module is the best application for designing a graphic for Voice calls and SMS applications.
  • Some IoT applications, mostly in an emergency, have the module.
  • The location tracing system also uses SIM900A.
  • SIM900A can be used for mobile communication.



Specification

Power Input

3.4V to 4.5V

Operating Frequency

EGSM900 and DCS1800

Transmitting Power Range

2V for EGSM900 and 1W for DCS1800

Data Transfer Link

Download: 85.6kbps, Upload:42.8kbps

SMS

MT, MO, CB, Text and PDU modes.

Low power consumption

1.5mA(sleep mode)

Antenna Support

Available

Audio Input/output

Available

Serial Port

I2C and UART

Dimensions

24x24x3mm

Operation temperature

-40°C to +85 °C
