Description

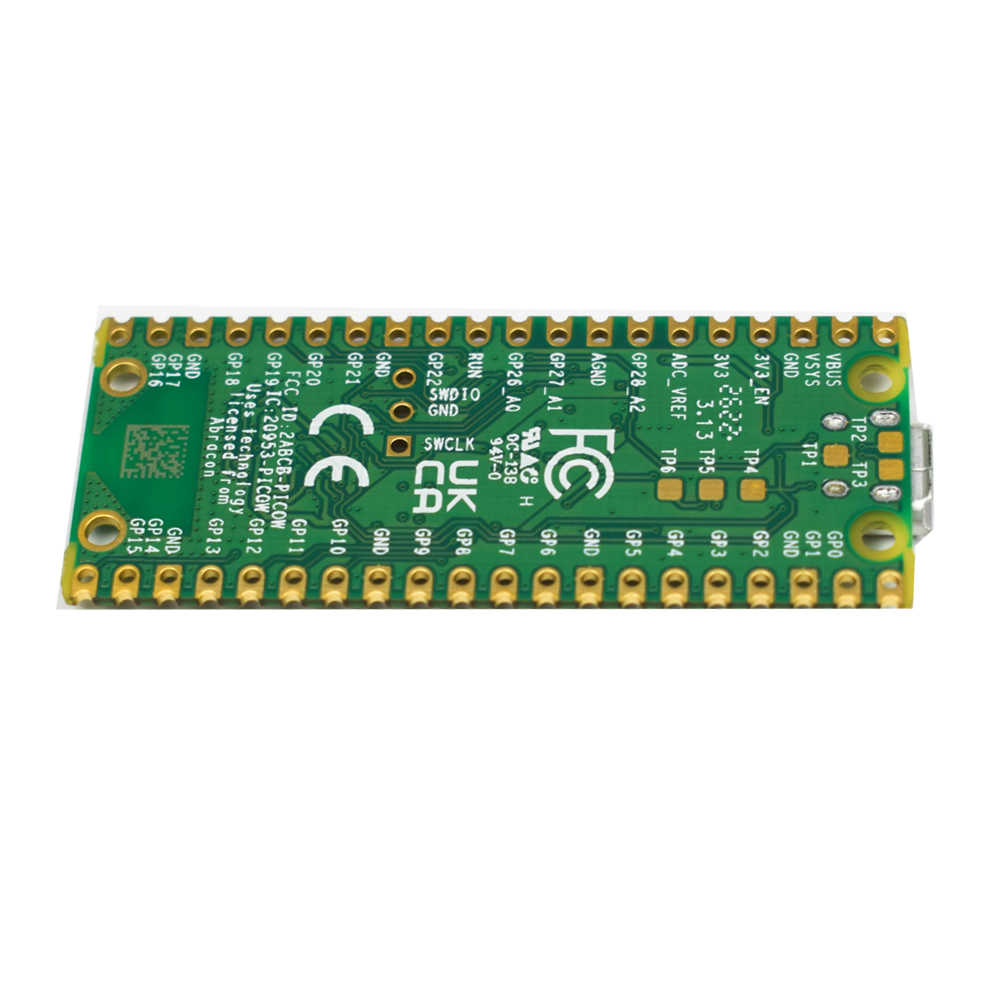

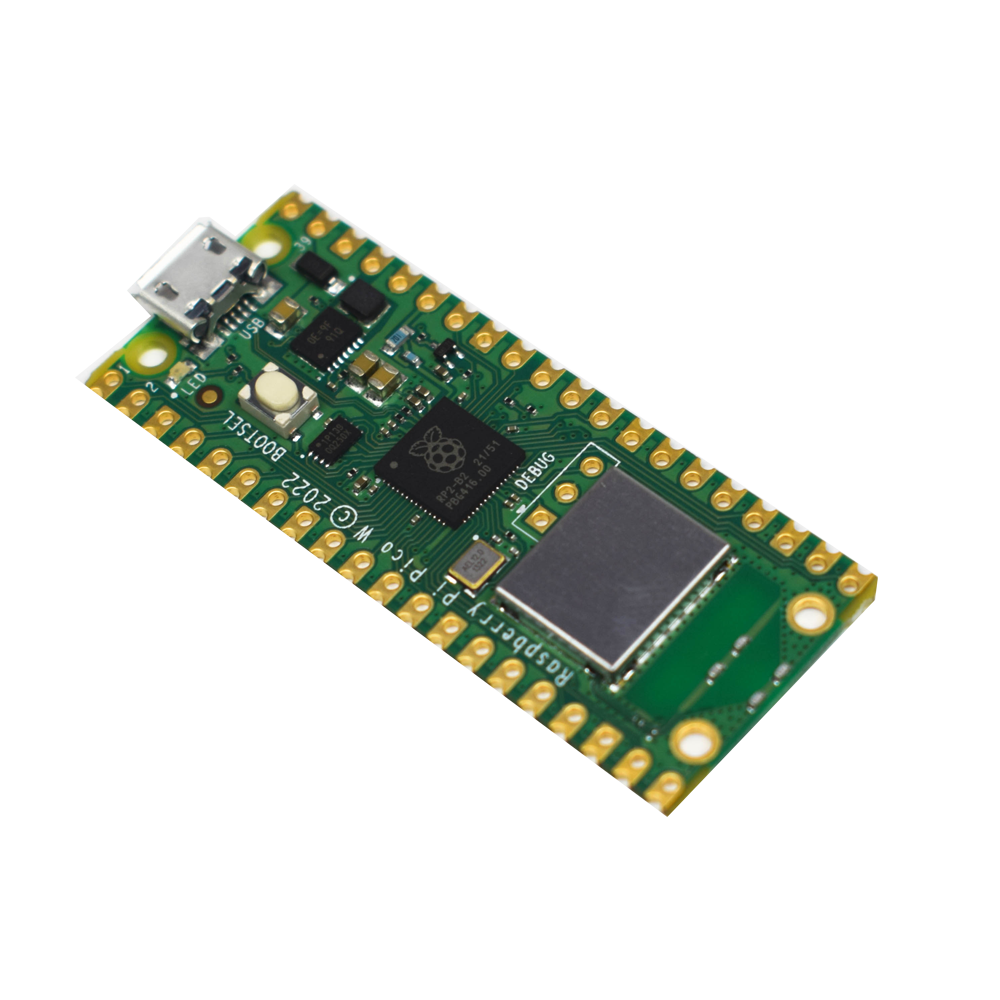

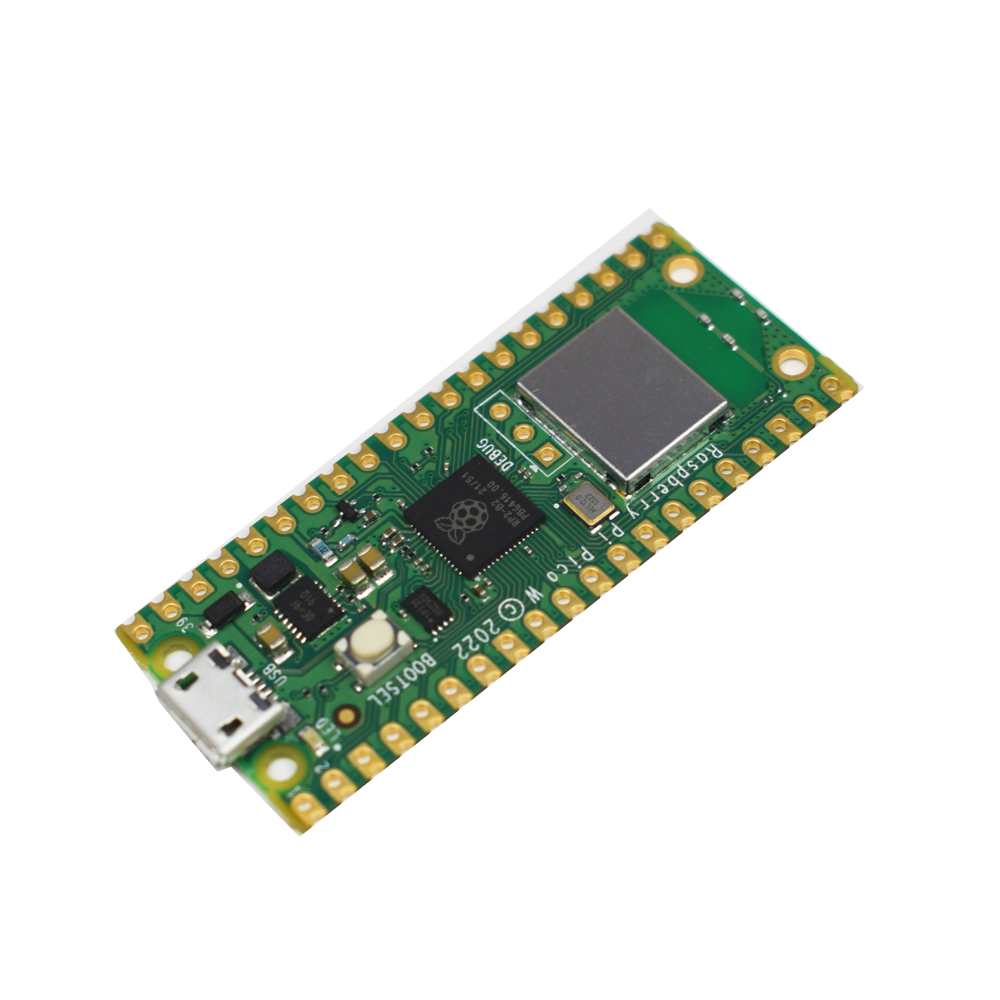

This is a Raspberry Pi Pico W Board. Each product is powered by the RP2040, a Raspberry Pi-designed chip with two ARM Cortex-M0 + cores clocked at 133MHz, 256KB RAM, 30 GPIO pins, and a variety of interfacing options. This is paired with 2MB of onboard QSPI Flash memory for storing code and data. The Raspberry Pi Pico W has an onboard buck-boost SMPS that can generate 3.3V (to power the RP2040 and external circuitry) from a wide range of input voltages (1.8 to 5.5V). This gives you a lot of options for powering the unit, such as a single lithium-ion cell or three AA cells in series. Battery chargers can be easily integrated into the Pico W power chain as well.
Features:-
- RP2040 microcontroller with 2MB of flash memory
- On-board single-band 2.4GHz wireless interfaces (802.11n)
- Micro USB port for power and data (and for reprogramming the flash)
- Exposes 26 multi-function 3.3V general purpose I/O (GPIO)
- It can be surface-mounted as a module
- 3-pin Arm serial wire debug (SWD) port
- Simple yet highly flexible power supply architecture
- High quality, low cost, high availability
Package Includes:
1 x Raspberry Pi Pico W
Specifications
| Product | Raspberry Pi Pico W |
| Brand | Raspberry Pi |
| CPU | Dual-core Arm Cortex-M0+ @ 133MHz |
| Memory | 264KB on-chip SRAM; 2MB onboard QSPI flash |
| Connectivity | 2.4GHz IEEE 802.11b/g/n wireless LAN, On-Board Antenna |
| Input Power | 1.8–5.5V DC |
| Operating temperature | -20°C to +70°C |
| Total No. of Pin | 40 |
| Flash memory | 2 MB |
| Board Dimension |
51 x 21mm |
| Country of Origin | China |
