Description
- Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
- 1GB LPDDR2 SDRAM
- 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
- Gigabit Ethernet over USB 2.0 (maximum throughput of 300 Mbps)
- Extended 40-pin GPIO header, Full-size HDMI
- 4 USB 2.0 ports
- CSI camera port, DSI display port for connecting a Raspberry Pi touchscreen display
- 4-pole stereo output and composite video port
| UPC |
713179640259 |
|---|---|
| Model |

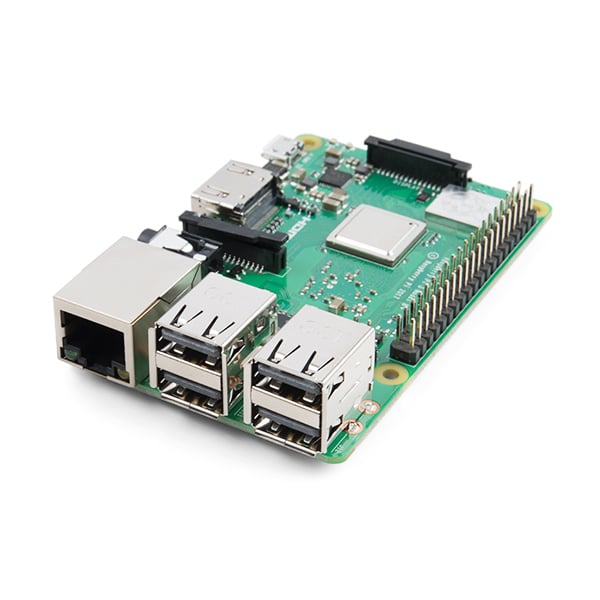

Raspberry Pi 3 Model B+ |
| Processor |
Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz |
| RAM |
1GB LPDDR2 |
| Connectivity |
Gigabit Ethernet over USB 2.0 |
| Operating Power |
5V/2.5A DC |
| GPIO |
Standard 40-pin GPIO Header |
| Video and Sound |
2-Lane MIPI DSI Display Port |
| Clock Speed |
1.4 GHz |
| On Board Ports |
15-pin MIPI Camera Serial Interface (CSI-2), 4 x USB 2.0 Connector, 4-pole stereo output and composite video port, 40-pin 2.54 mm (2×20 strip) GPIO, Full-size HDMI Output Port |
| Micro-SD Card Slot |
Yes (FAT32 format), support maximum 32G Micro SD Card |
| Operating Temperature (°C): |
-10 to 60 |
| Weight (g): |
44 |
| Length (mm): |
85 |
| Width (mm): |
56 |
| Height (mm): |
23 |
| HDMI Port |
Full Size |
| Shipping Weight | 0.047 kg |
| Shipping Dimensions | 9 × 6 × 4 cm |
