Description

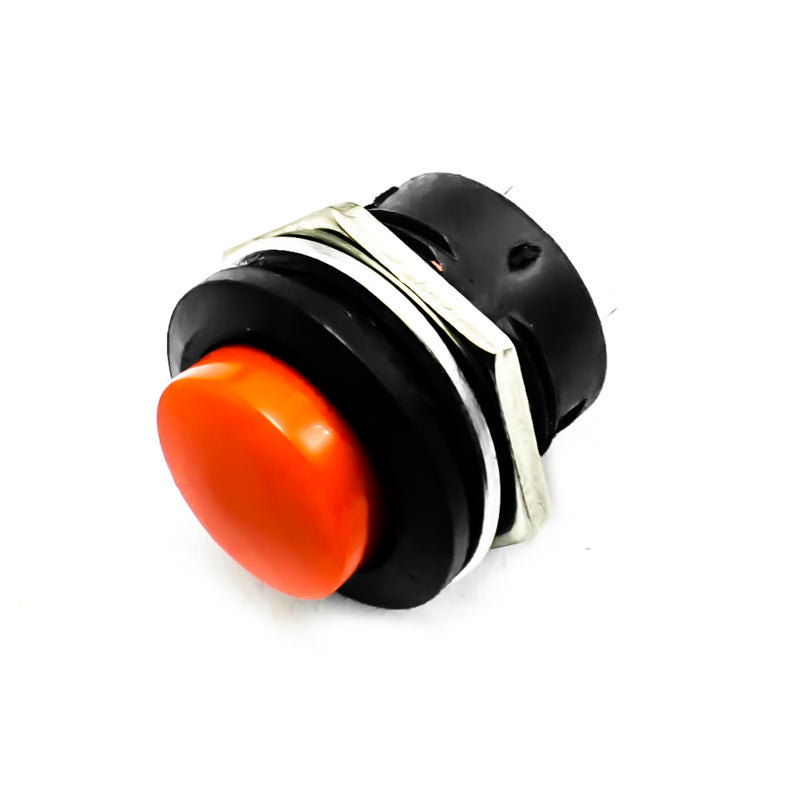

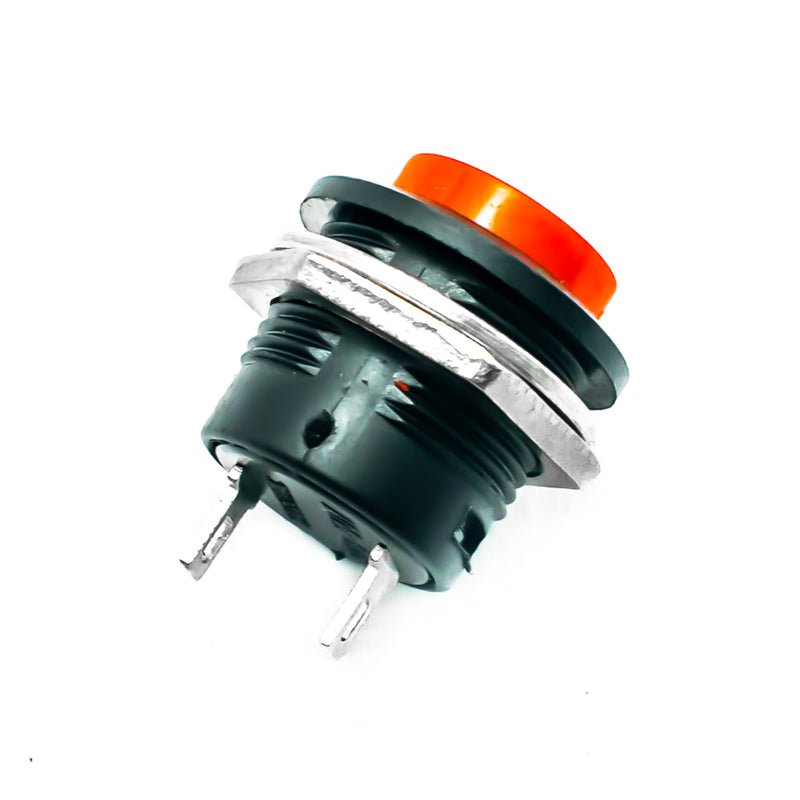

The Push-button switch is widely used as an operational unit in various electrical circuits, electrical devices, and machines in the home and industry. The switch can operate circuits, turning on and offloads such as contactors, engines, relays, and so on. It is a push ON release OFF type switch.
Specifications
| Model | R13-507 |
| Voltage Rating | 250V AC |
| Current Rating | 3A |
| Type | SPST |
| Function | Momentary |
| Contact Resistance | 100mΩ |
| Operating Temperature | -25°C to 85°C |
| Colour | Red |
| Actuator Diameter | 12.8mm |
| Country of Origin | China |
