Description

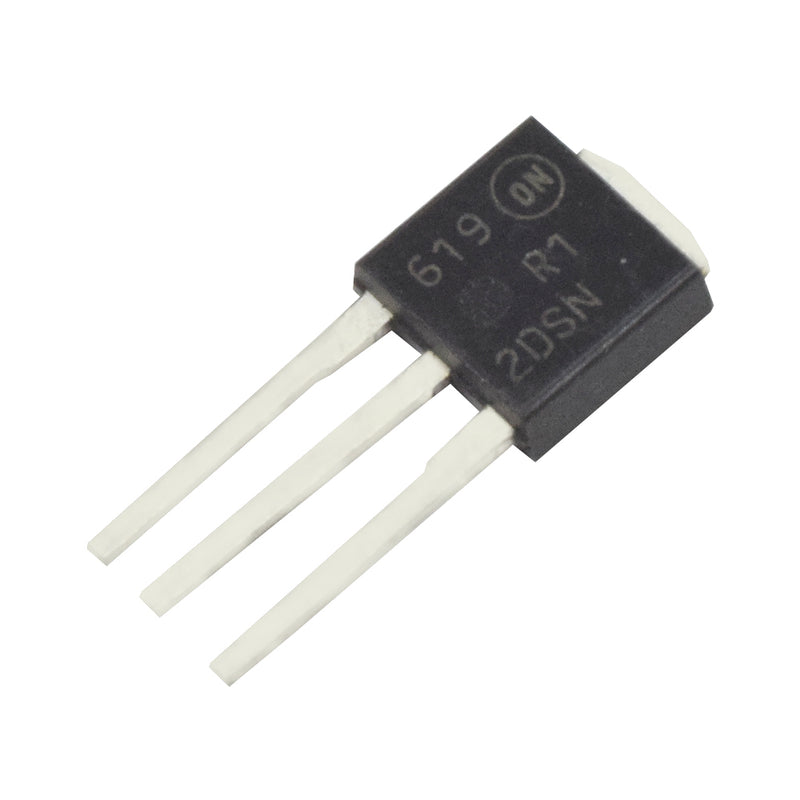

R12DSN is a reverse blocking thyristor its mainly designed for high volume, low cost industrial and consumer applications. its use to control motors , process, light, speed and temperature this IC has three terminal. A thyristor has three terminals: anode (positive terminal), cathode (negative terminal), and gate (control terminal). The gate controls the flow of current between the anode and cathode. The primary function of a thyristor is to control electric power and current by acting as a switch.
Features
-
Its use to control the motor, Light Etc.
-
Passivated die for reliability and uniformity
- Its Low level triggered and Holding characteristics
-
It has the capability to improved dv/dT
- 100% avalanche energy rated
Specification
| Model | R12DSN |
| Type | Thyristor |
| Package | Case 369D |
| Max operating current | 12A |
| Max operating voltage | 600 to 800V |
| Forward peak gate current | 2.0A |
| Peak non repetitive surge current | 100A |
| Operating and Storage Temperature Range | -40°C TO 150°C |
| Country of Origin | China |
