Description

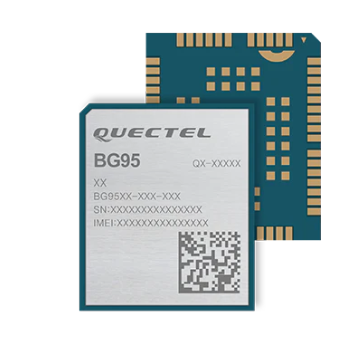

It's a Quectel BG95 Cat M1/Cat NB2/EGPRS Module. BG95 is a series of multi-mode LPWA modules supporting LTE Cat M1/Cat NB2/EGPRS and integrated GNSS.It is 3GPP Rel-14 compliant and offers maximum data rates of 588 kbps downlink and 1119 kbps uplink under LTE Cat M1. It features ultra-low power consumption by leveraging the integrated RAM/flash as well as the ARM Cortex A7 processor supporting ThreadX‚ achieving up to 70% reduction in PSM leakage and an 85% reduction in eDRX current consumption compared to its predecessor.
Features
- It is a LTE Cat M1/Cat NB2/EGPRS module with ultra-low power consumption
- It is Easy migration from Quectel GSM/GPRS‚ UMTS/HSPA‚ and LTE modules
- Integrated RAM and flash in the baseband chipset
- It has a Comprehensive set of hardware-based security features
| Specifications | |
|---|---|
| Temperature | -40°C to +85°C |
| Dimension | 23.6 × 19.9 × 2.3 mm |
| Model | BG95 |
| Type | LPWA module |
| Support Standard | LTE Cat M1/Cat NB2/EGPRS |
| Brand | Quectel |
