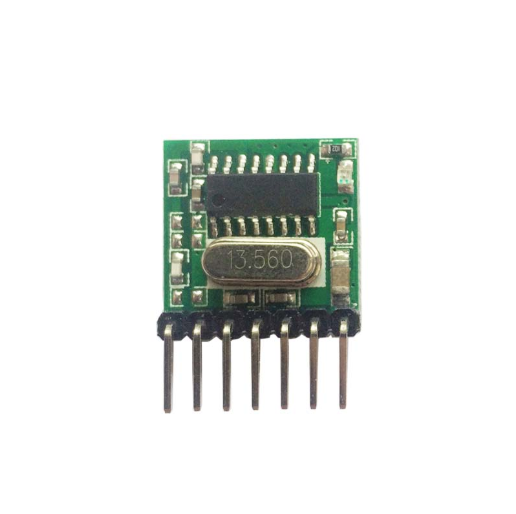

QIACHIP 433 mhz Mini Wireless RF Remote Control 1527 EV1527 Learning code 433mhz Transmitter For Gate garage door Alarm Light controller

Save 18%
Sold By: HatchnHackSKU: HOE-02

Price:
Sale price₹ 195.00 Regular price₹ 239.00

Tax included Shipping calculated at checkout

Min Qty:

Description

It's a QIACHIP 433 mhz Mini Wireless RF Remote Control 1527 EV1527 Learning code 433mhz Transmitter For Gate garage door Alarm Light controller.

Specification

  • Model: TX118SA-4
  • Transmitting power: 11dbm
  • Distance: 30-100m
  • Emission current: 10MA
  • Rate of fire: maximum 10KB / S
  • Transmit deviation: +/- 7. 5KHZ / narrow-band emission
  • Modulation: ASK
  • Operating Voltage: DC 3V-24V
  • Encoding : EV1527 1527 Learning code
  • Each module has a unique ID address code.
  • All modules K1-K4 four key code is the same.

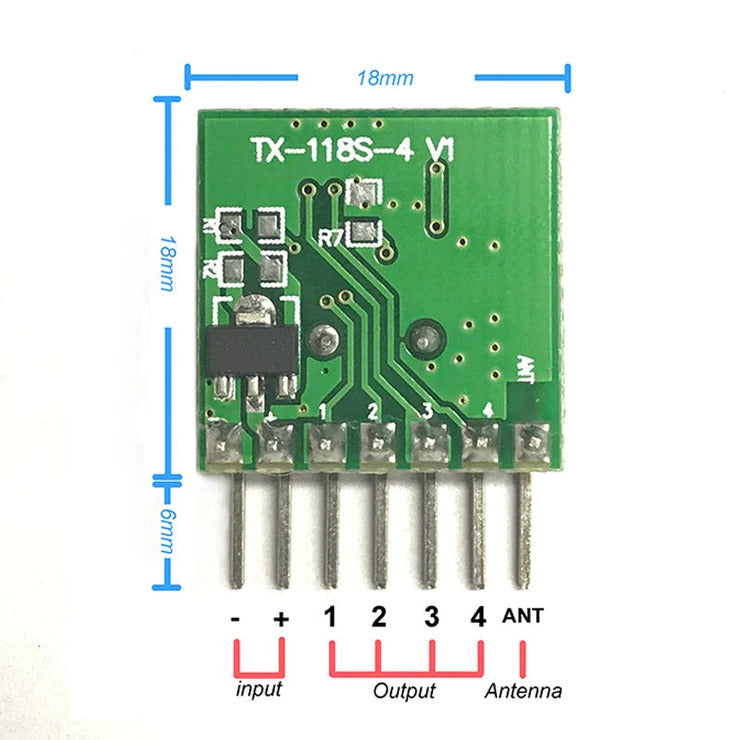

Pin Description:

- : Negative power supply

+: Positive power supply, DC 3-24V

Pin Description:

- : Negative power supply

+: Positive power supply, DC 3-24V

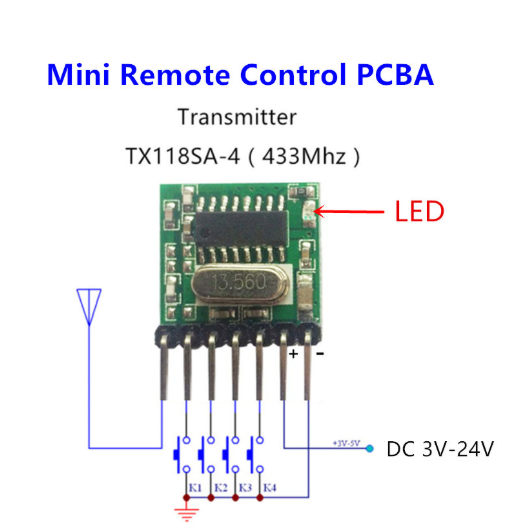

K1: 1 short to  Negative  start transmitting data, Similar the A button on the remote control.

K2:  2 short to  Negative  start transmitting data, Similar the B  button on the remote control.

K3:  3 short to  Negative  start transmitting data, Similar the C  button on the remote control.

K4:  4 short to  Negative  start transmitting data, Similar the D  button on the remote control.

ANT: transmitting antenna
