Description

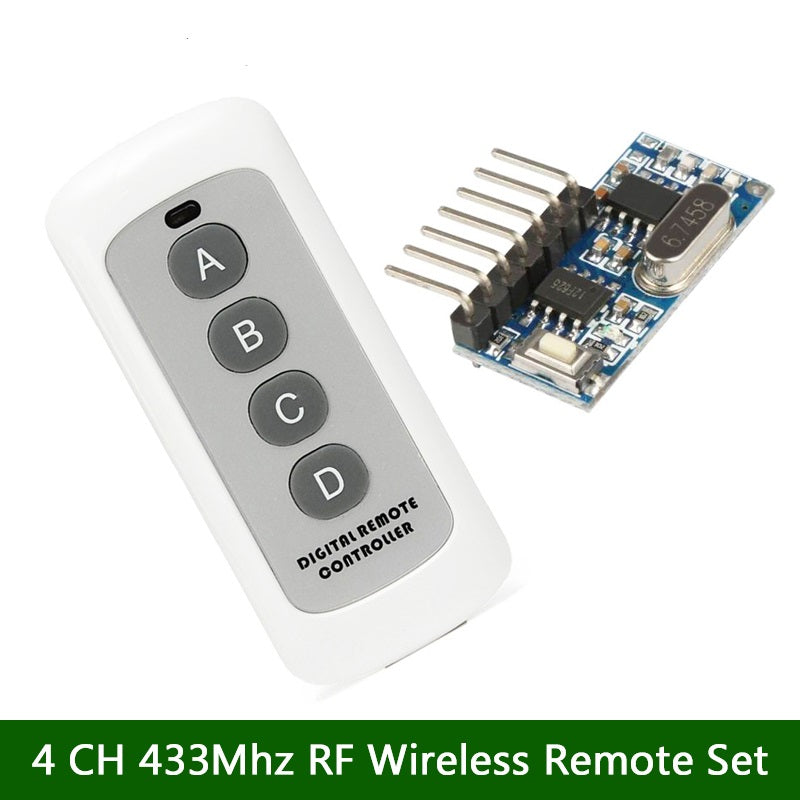

It's a Qiachip 4 Buttons 433MHz Universal 4 CH RF Wireless Remote Control Transmitter Receiver Set.
Features
- 100% New and High Quality RF Wireless Remote Control Set
- 433MHz 4 Buttons RF Remote Control Transmitter with Battery
- 433MHz 4 Channels Wireless Receiver Module
- EV1527 Learning code Remote Control Receiver + Transmitter
- Complete Set 1x Remote Receiver + 1x Remote Controller
- Note: The installation and usage of these modules require some basic knowledge of electronics, if you do not know how to install, please don’t buy it.
Specification
100% brand new, high quality.
Size: 58.7*30*13.5 (mm)
Working frequency: 433MHZ
Remote control distance: 50-100m (in an open environment)
Working mode: fixed welding code type, learning type, copy type optional Working voltage: DC 12V
Working current: 11mA
Working environment: -15*75 degrees Celsius
Application: Suitable for electric door remote control, telescopic door remote control, garage door remote control, motor control remote control, curtain control remote control, car motorcycle remote control, etc.

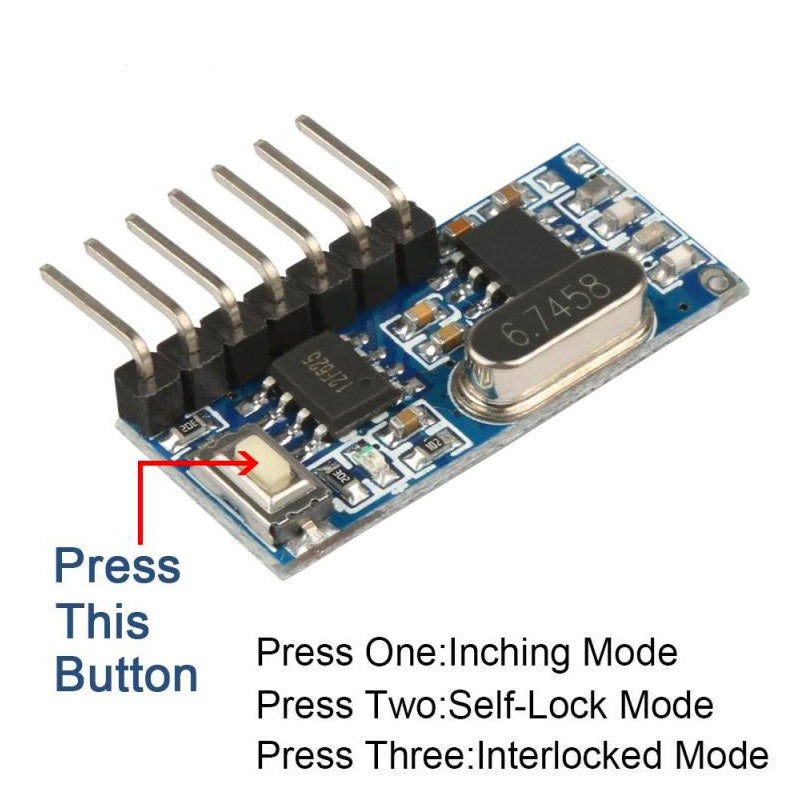

Receiver Module RX480-E4
Working Voltage : DC3.3~5V
Quiescent Current : Less than 5mA
Output current: 10 mA
Working Frequency: 433MHz ( Others can be customized )
Receive Sensitivity: -108dB
Receive Distance:15 meters above
Frequency band: ±0.2MHz
Working Temperature : -25~75
