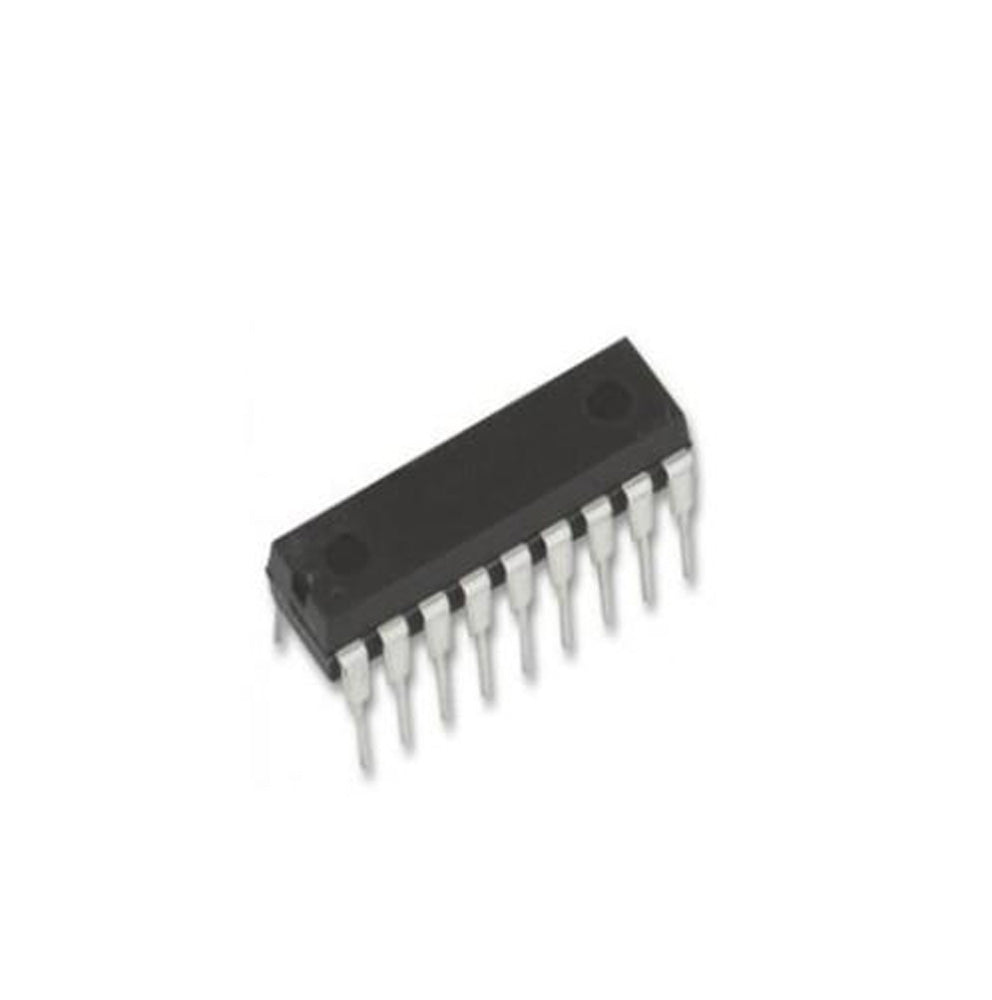

PT2272 Remote Control Decoder IC

PT2272 Remote Control Decoder IC

  • ₹ 27.00
    Unit price per
  • Save ₹ 8
Shipping calculated at checkout.

Only 5 left!

Description:

PT2272 is a remote control decoder paired with PT2262 utilizing CMOS Technology. It has 12-bit of tri-state address pins providing a maximum of 531,441 (or 312) address codes; thereby, drastically reducing any code collision and unauthorized code scanning possibilities. PT2272 is available in several options to suit every application need: variable number of data output pins, latch or momentary output type.

Applications:

  • Car Security System
  • Garbage Door Controller
  • Remote Control Fan
  • Home Security/Automation System
  • Remote Control Toys

Features:

  • CMOS Technology
  • Low Power Consumption
  • Very High Noise Immunity
  • Up to 12 Tri-State Code Address Pins
  • Up to 6 Data Pins
  • Wide Range of Operating Voltage: VCC=4~15V
  • Single Resistor Oscillator
  • Latch or Momentary Output Type
  • Available in DIP Package

PT2274-M4 | PT2262 | PT2272 | Encoder Decoder IC | Remote Control Decoder | DIP | Robotics | DIY | Prototyping.
