Description

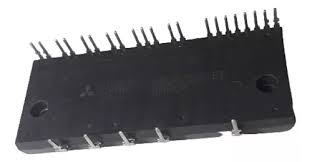

The PS21255-E is an Intelligent Power Module (IPM) manufactured by Mitsubishi Electric. It features a voltage rating of 600V and a current rating of 20A. This IPM integrates IGBTs, freewheeling diodes, gate drivers, and protection circuits. It's designed for motor control applications in appliances, HVAC systems, and industrial automation.
Specifications:
-
Voltage Rating: 600V
-
Current Rating:
- Continuous Collector Current (IC): 20A
- Pulsed Collector Current (ICP): 40A
-
Package Type: DIP (Dual In-line Package) with an insulated metal baseplate
-
Integrated Components:
- IGBT (Insulated Gate Bipolar Transistor)
- Freewheeling Diode
- Gate Drivers
- Protection Circuits: Overcurrent, Overtemperature, and Fault Protection
-
Control Interface: Optical isolation for gate drive signals
-
Applications: Suitable for motor control applications in appliances, HVAC systems, industrial automation, and other power electronics systems.
