Description

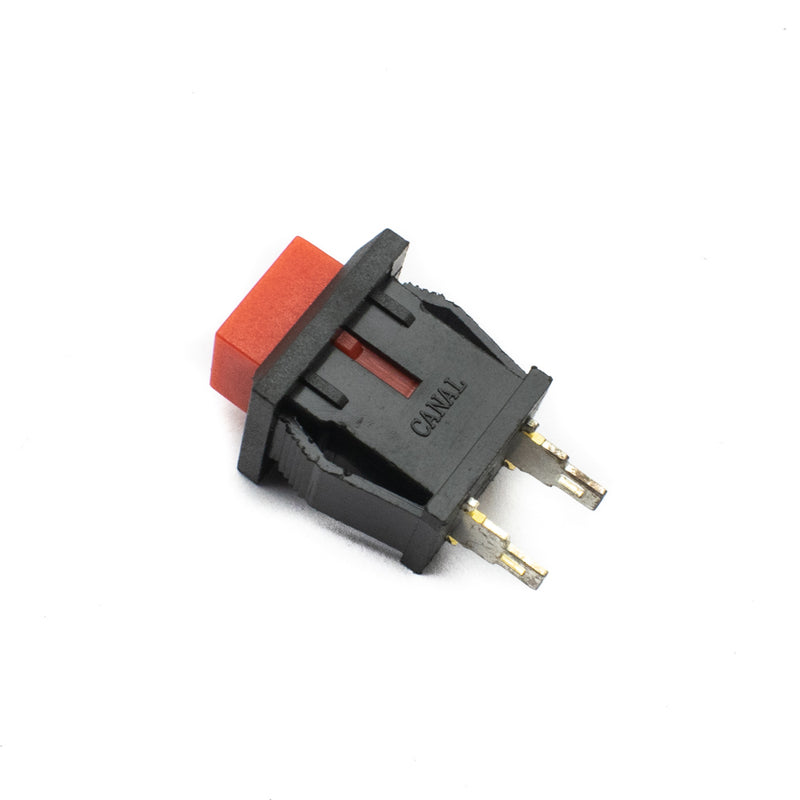

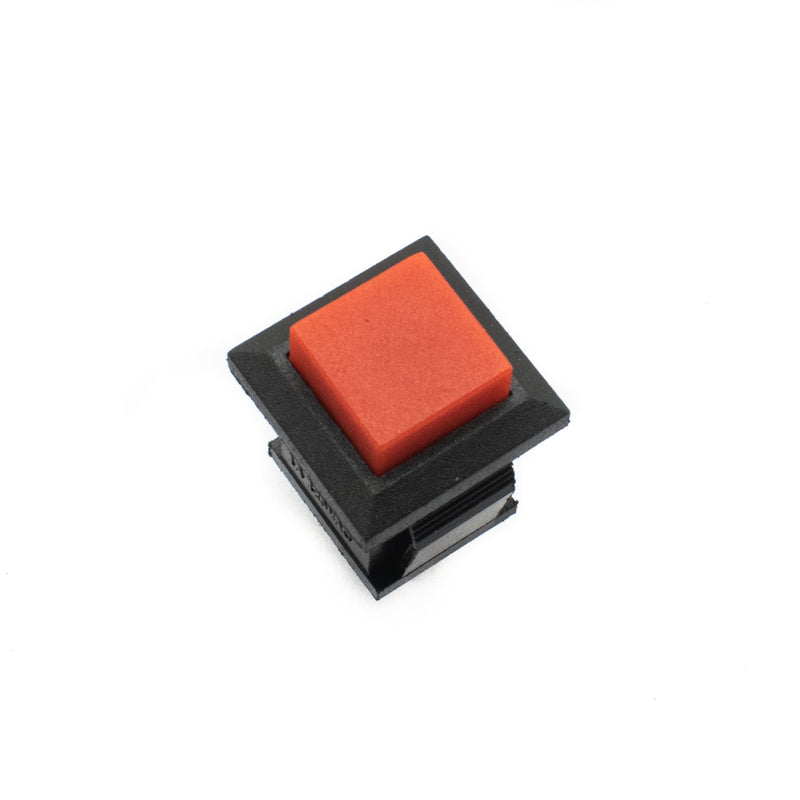

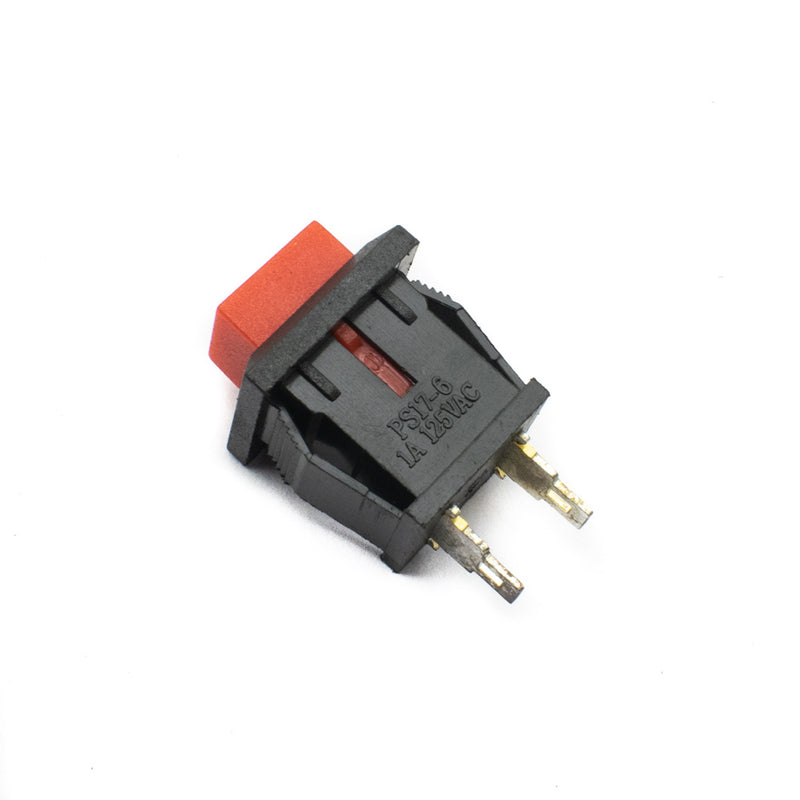

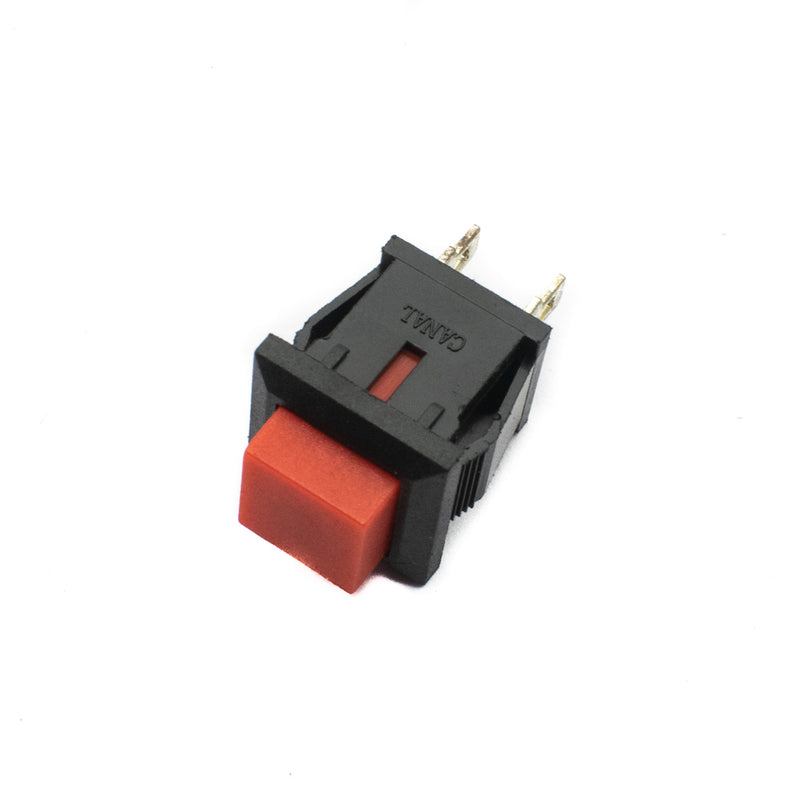

Push-button switch is one of the simplest and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labelled as graphic convenience, operating the switch lead to user satisfaction. This switch is default OFF and Push-ON which makes it convenient to use in the systems where reset/ push-ON is needed.
Specifications
| Rating | 3A @125V AC, 1A @250V AC |
| Function | Push ON |
| Contact Resistance | 20mΩ |
| Model | PS17-6 |
| Life Cycle | 10000 operations |
| Size | 8.8x14x24mm |
| Country of Origin | China |
