Description
This is a High-Quality Blue Colour SMD LED. These LEDs consume low power and generally produce a wide angle of light disbursement which can be narrowed through the use of external lenses. The Forward Voltage is 3.0-3.2 volts and the wavelength is 450-460nm.
SMD LEDs are substantially smaller than lead frame-type components, they can be used on smaller boards, with higher packing density, less storage area, and smaller equipment. Just like the other SMD LEDs, it has two pins, an anode and a cathode for powering the LED. The most common application of these LEDs is as a Power, indicator purpose, pin status, blinky display, portable devices etc.
Pin Configuration
|
Pin Name |
Description |
|
Anode |
Positive terminal |
|
Cathode |
Negative terminal |
Specifications
| Brand | Proton |
|
Product |
2835 0.2W Blue LED |
|
Power Consumption |
0.2 Watt |
| Led Shape |
Rectangle |
|
Colour |
Blue |
|
Forward Voltage(VF) |
3.0V-3.2VDC |
|
Wavelength(nm) |
450-460nm |
|
Forward Current(IF) |
60mA |
| Lumens(LM) | 3-5 |
|
Mounting |
SMD |
| Dimensions(LxB) | 3.5mm x 2.8mm |

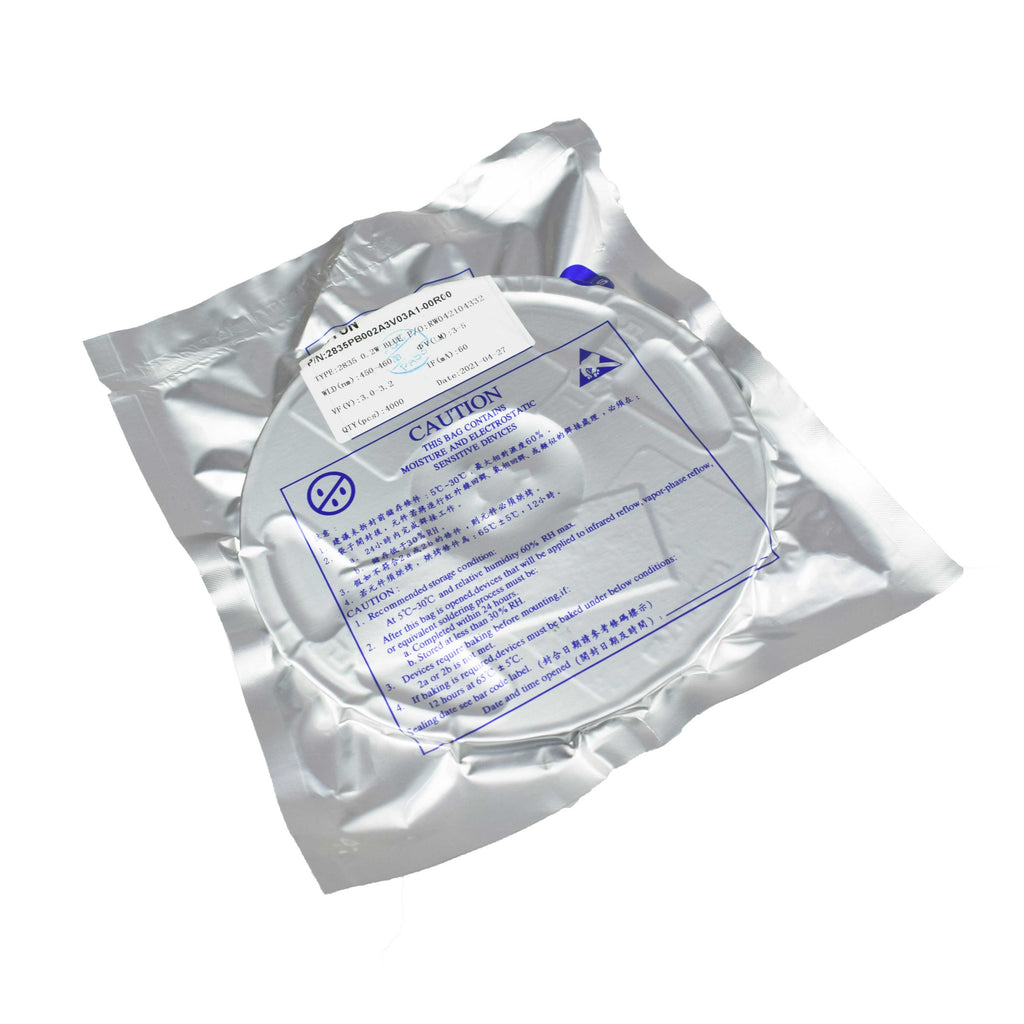

| Quantity | Pack of 4000Pcs in 1 Pack |
| Country of Origin | China |
