Professional Grade Universal Cable Cutter and Stripper
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

Professional Grade Universal Cable Cutter and Stripper

In Stock - SKU: 4D09

275.00
[ ₹ 233.05 + ₹ 41.95 (18% GST) ]
  • Material: High Strength Steel and Durable Plastic
  • Strip Cables: 4.5-25mm Diameter
  • Coaxial Cable: RG-59/RG-6/RG-7/RG-11
  • Flat Wire: 4P/6P/8P
  • Twisted Pair: UTP/STP/Cat5e/Cat6
  • Order within

Adjustable stripping blade for different insulation thickness prevents damage of shielding and conductors. This allows the user to match the wire size, which is important to avoid wire damage. Although a knife would also strip or cut the wires, it could also cause damage to the wire by nicking or cutting into it. Stripping wire with a knife is also extremely dangerous! The knife is prone to slipping and inflicting severe injuries.

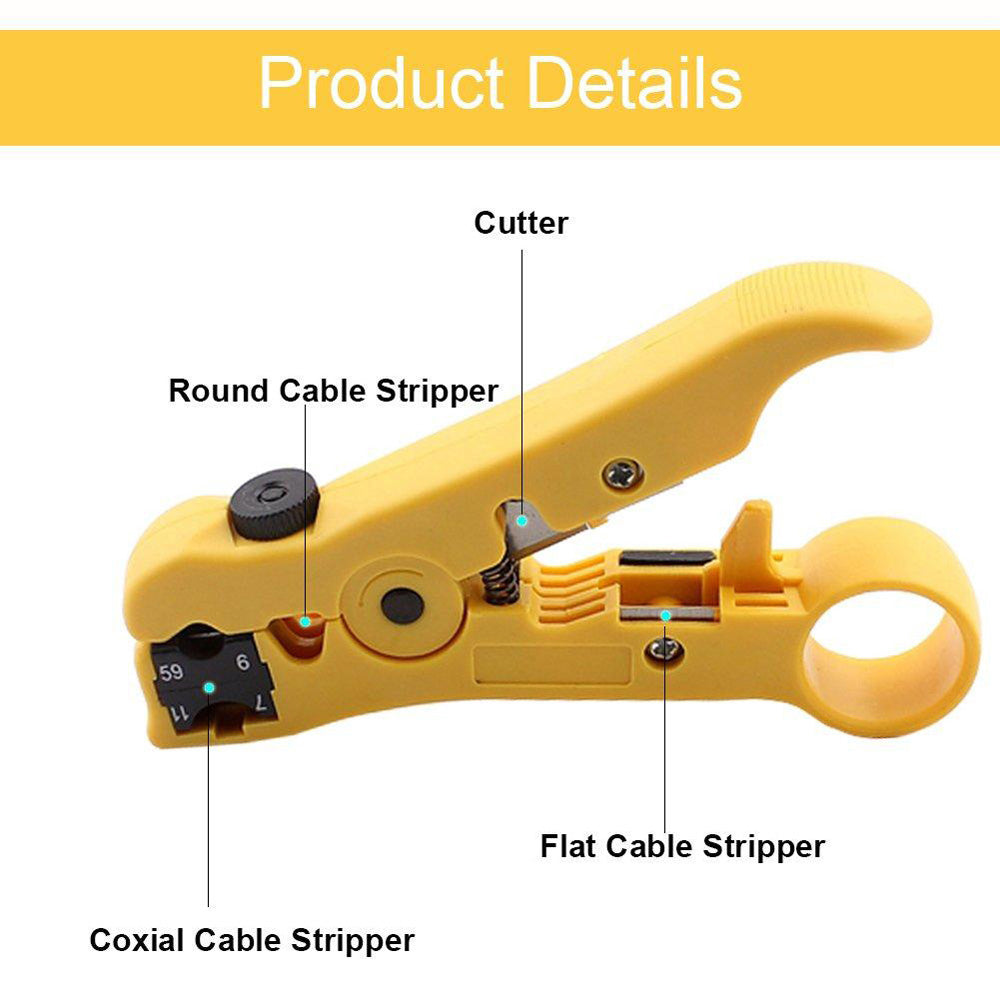

Features

  • Strips outer jacket of UTP and STP cable and CAT 5 round telephone cable
  • Strips RG-59/6/11/7 coaxial cable
  • Strips flat telephone cable
  • Cable cutter function

Instructions

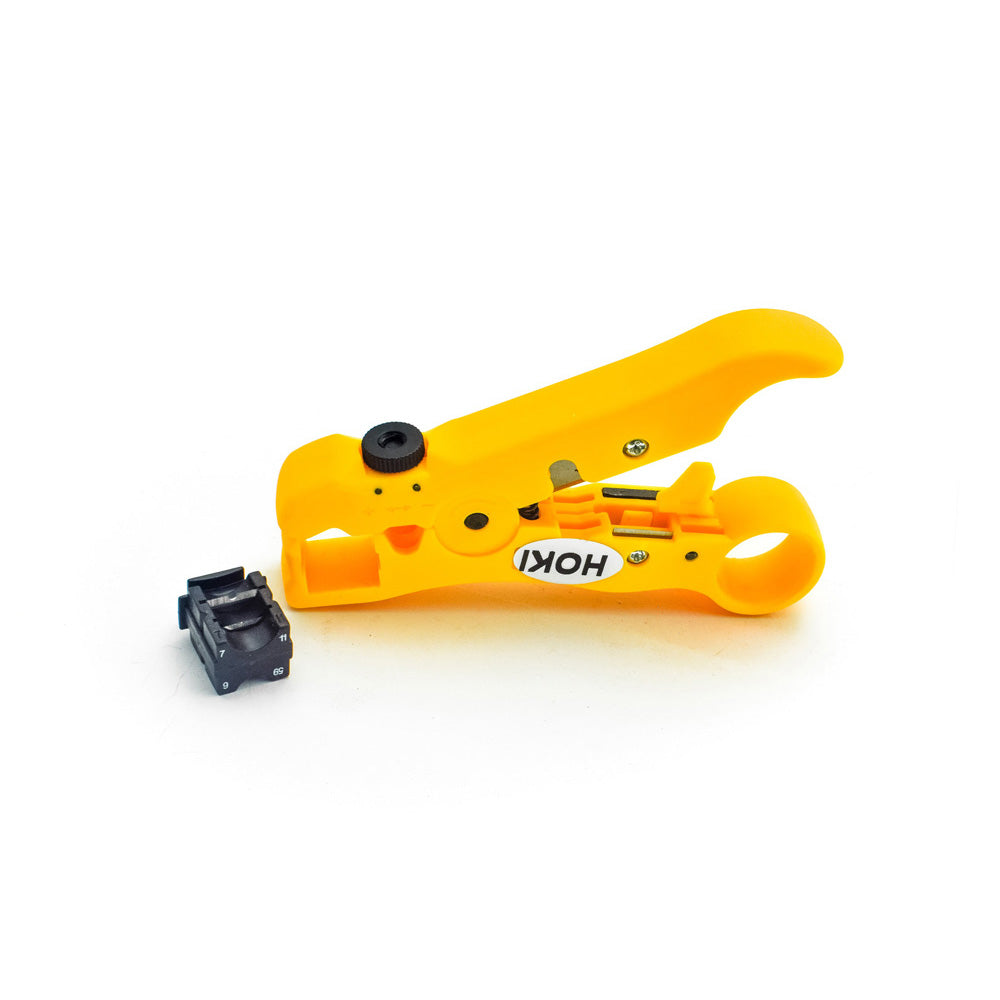

  1. Push the cassette out of the housing, push from the front of the cassette.
  2. Cassette is reversible, one side is available for RG-59/6 and another side is for RG-7/11
  3. For Stripping coaxial cable
  • Insert the cable until it aligns with the cable guide.

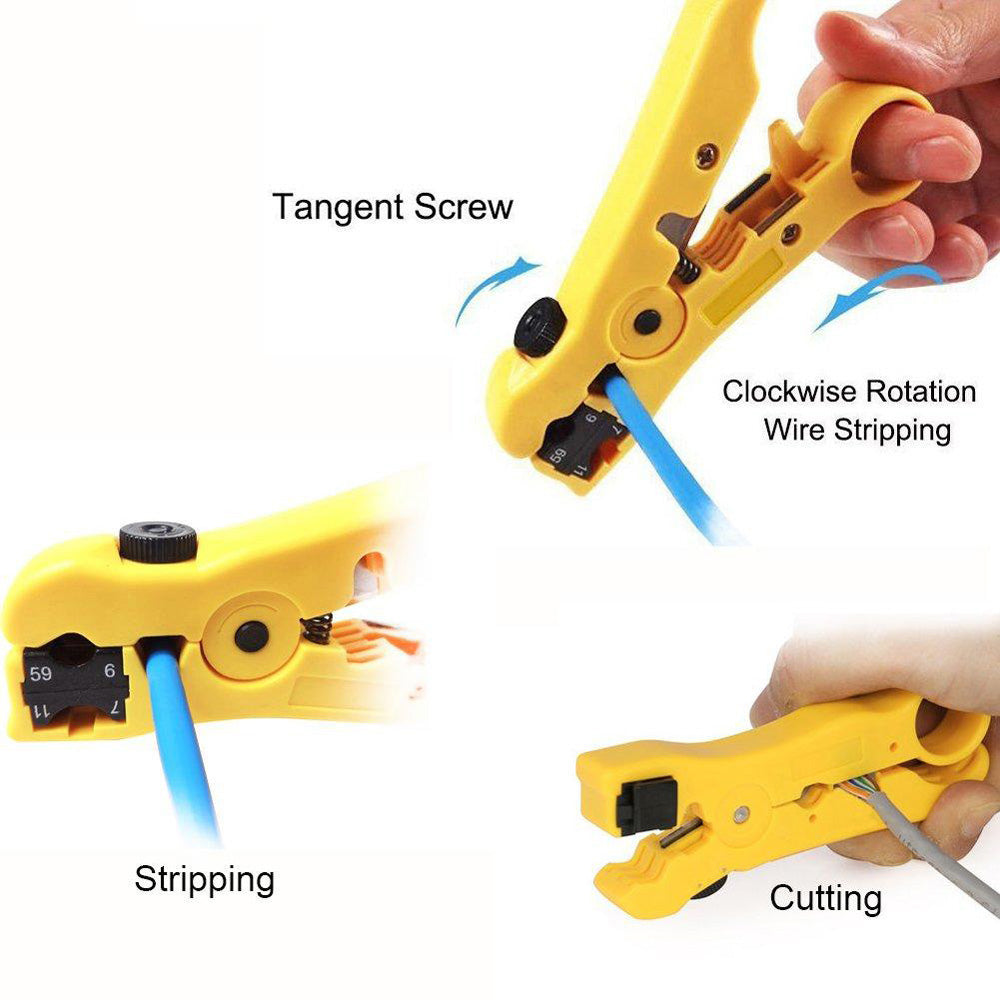

  • Insert your index finger into the stripper's finger ring, rotate the stripper counterclockwise 3-5 times. The cable insulation is cut while you are turning the stripper.
  • Open the jaws and remove the cable. Pull away the outer jacket and dielectric to expose the inner conductor.
  1. For stripping round networking cable
  • Insert the cable into the second stripping hole, rotate 1-3 times counterclockwise, and then open the jaw and remove the outer jacket
  • The black colour adjusting knob is for adjusting the blade’s depth. Turn clockwise for increasing the blade’s depth and counterclockwise for reducing the depth.
  1. For cutting coaxial cable,  round networking cable or flat telephone cable, place the cable in position and then squeeze the handles.
  2. For stripping flat cable, insert the cable between the stripper blades, squeeze handles,  Cable must be kept perpendicular and then pull from the tool.
  • Insert 4p/6P cable into the two-bladed side of the tool’s stripper until it touches the stop guide
  • Insert 8P cable into the two-bladed side of the tool’s stripper and let it extend a little past the lower cut blade.

Adjustable stripping blade for different insulation thickness prevents damage of shielding and conductors. This allows the user to match the wire size, which is important to avoid wire damage. Although a knife would also strip or cut the wires, it could also cause damage to the wire by nicking or cutting into it. Stripping wire with a knife is also extremely dangerous! The knife is prone to slipping and inflicting severe injuries.

Features

  • Strips outer jacket of UTP and STP cable and CAT 5 round telephone cable
  • Strips RG-59/6/11/7 coaxial cable
  • Strips flat telephone cable
  • Cable cutter function

Instructions

  1. Push the cassette out of the housing, push from the front of the cassette.
  2. Cassette is reversible, one side is available for RG-59/6 and another side is for RG-7/11
  3. For Stripping coaxial cable
  • Insert the cable until it aligns with the cable guide.
  • Insert your index finger into the stripper's finger ring, rotate the stripper counterclockwise 3-5 times. The cable insulation is cut while you are turning the stripper.
  • Open the jaws and remove the cable. Pull away the outer jacket and dielectric to expose the inner conductor.
  1. For stripping round networking cable
  • Insert the cable into the second stripping hole, rotate 1-3 times counterclockwise, and then open the jaw and remove the outer jacket
  • The black colour adjusting knob is for adjusting the blade’s depth. Turn clockwise for increasing the blade’s depth and counterclockwise for reducing the depth.
  1. For cutting coaxial cable,  round networking cable or flat telephone cable, place the cable in position and then squeeze the handles.
  2. For stripping flat cable, insert the cable between the stripper blades, squeeze handles,  Cable must be kept perpendicular and then pull from the tool.
  • Insert 4p/6P cable into the two-bladed side of the tool’s stripper until it touches the stop guide
  • Insert 8P cable into the two-bladed side of the tool’s stripper and let it extend a little past the lower cut blade.
Material High Strength Steel and Durable Plastic
Strip Cables 4.5-25mm Diameter
Coaxial Cable RG-59/RG-6/RG-7/RG-11
Flat Wire 4P/6P/8P
Twisted Pair UTP/STP/Cat5e/Cat6
