Description

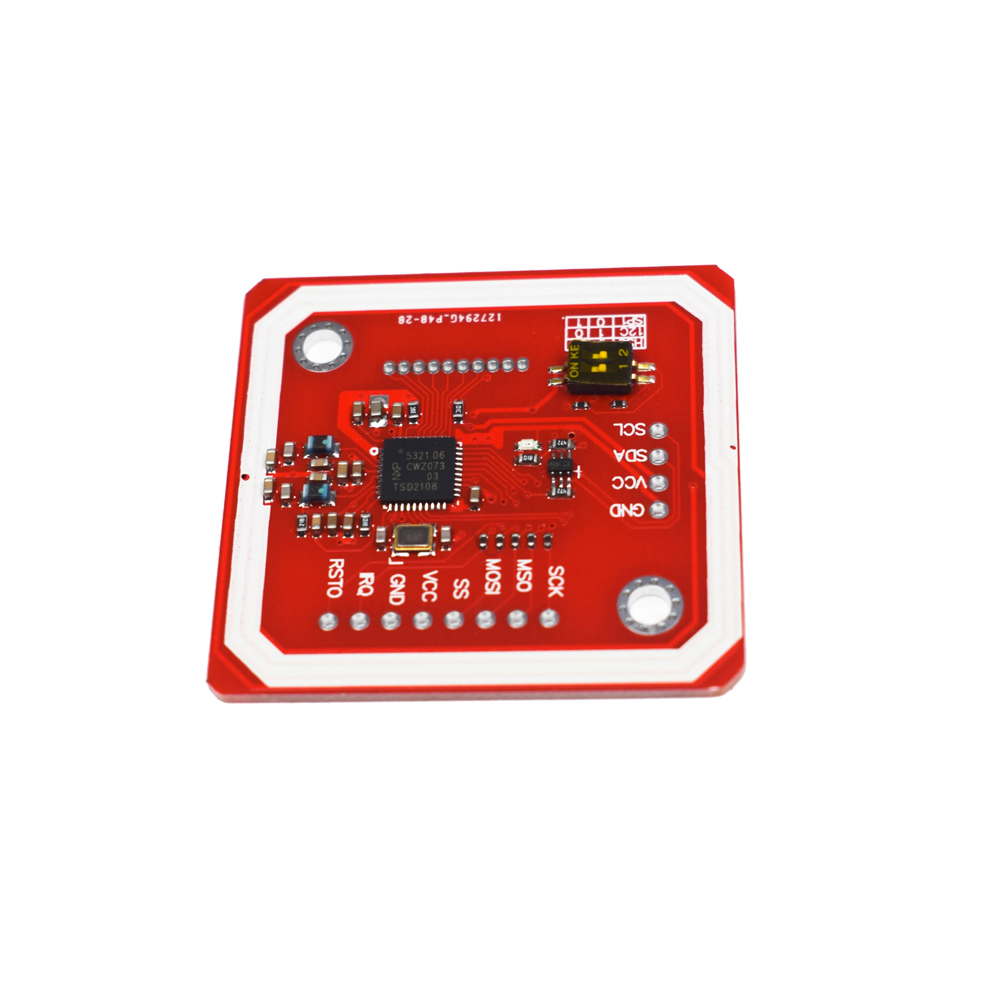

This is a PN532 NFC RFID Reader/Writer Module V3 with Tag and RFID Card. The PN532 is a highly integrated transmission module with microcontroller functionality that operates at 13.56 MHz and has 40KB of ROM and 1 KB of RAM. The PN532 combines a fully integrated modulation and demodulation concept for various contactless communication methods and protocols at 13.56 MHz with simple firmware for the various supported modes and host controller interfaces. It can function as an RFID reader/writer, 1443-A card, or virtual card, and it also supports NFC with an Android phone.

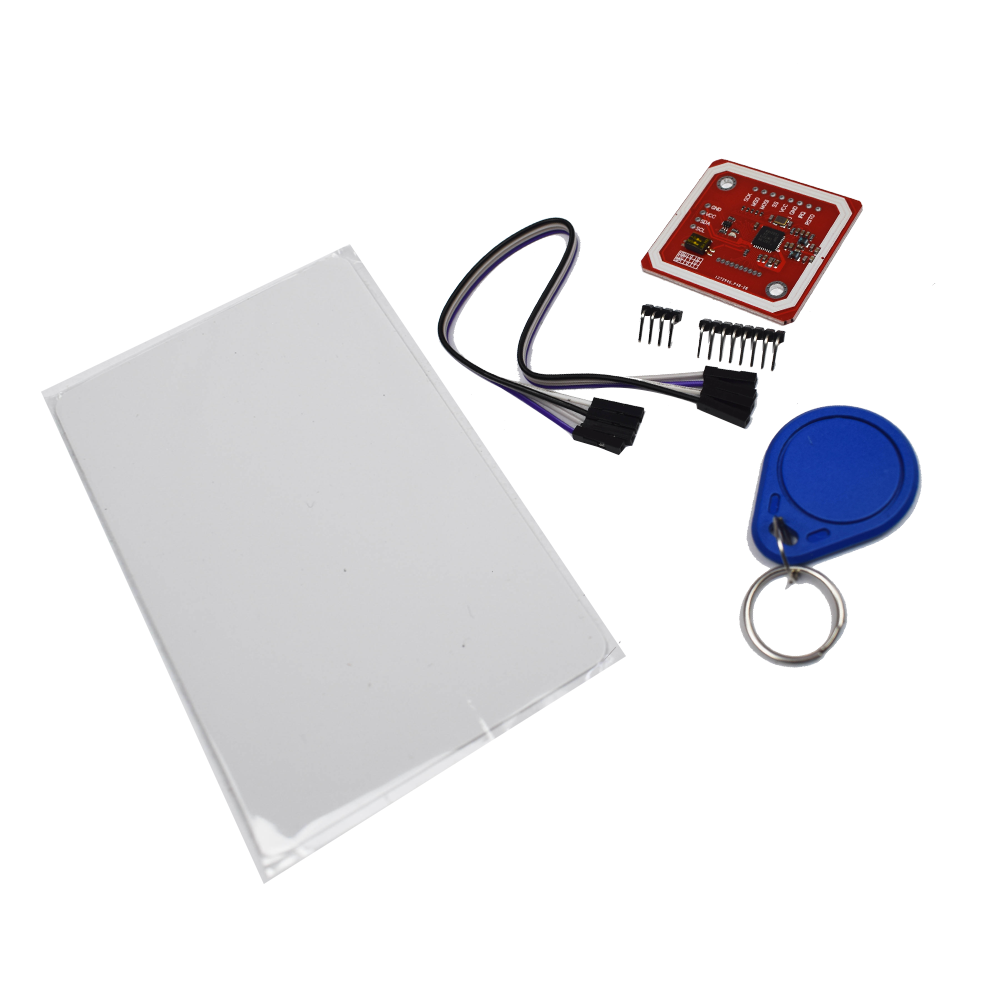

Package Included- 1x PN532 NFC RFID Module

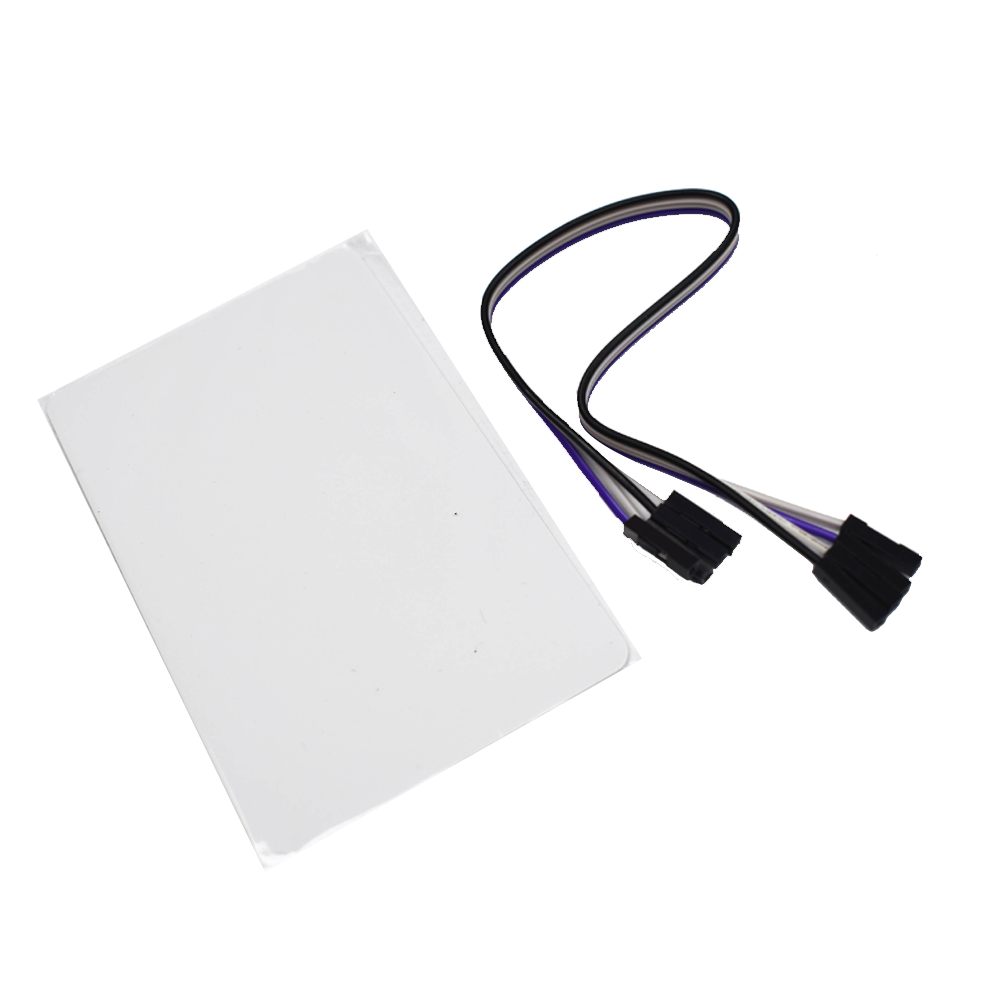

- 1x RFID plain white Card

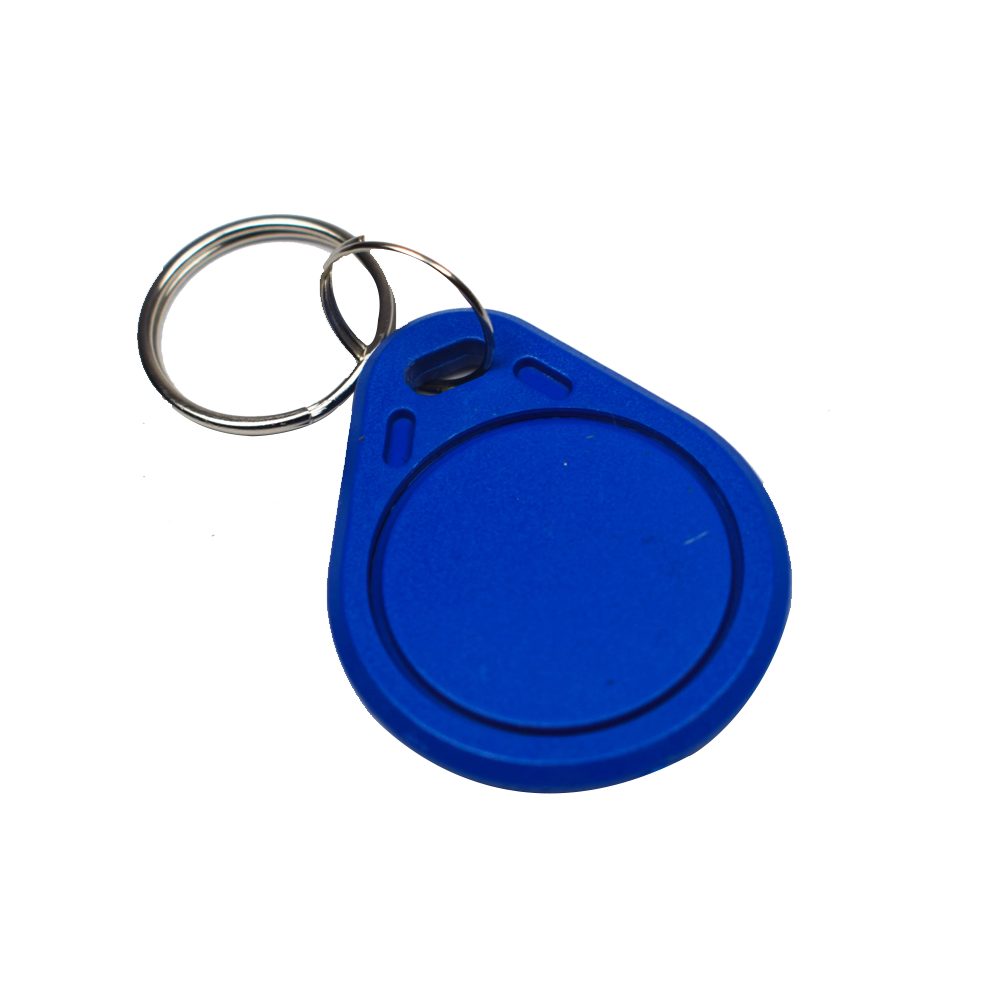

- 1x Tag

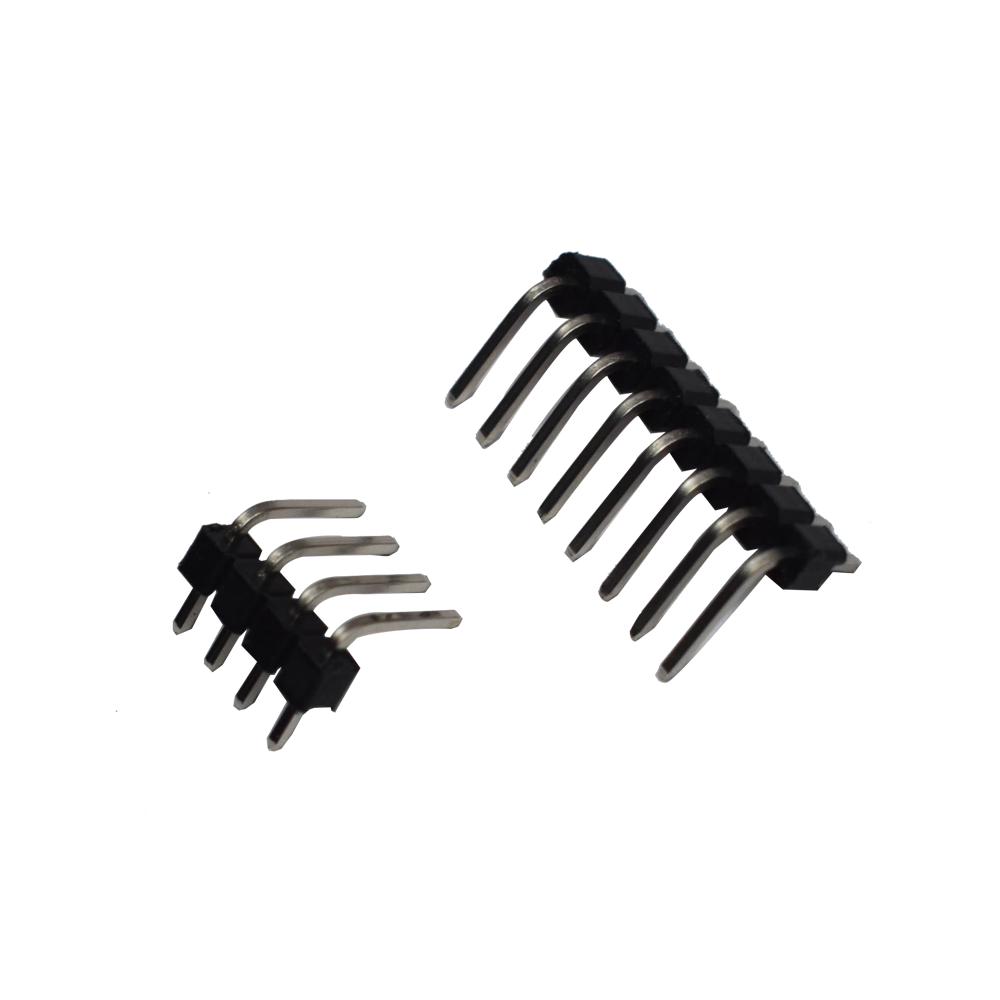

- 1x 4pin Female-to-female connector pin.
Specifications
| Model/Product |
PN532 NFC RFID Module |
| Type | RFID |
| Operating Voltage | 3.3~5V |
| Supporting Protocols |
II2, SPI and HSU (High-Speed UART) I2C / UART: 3.3V ~ 24V TTL SPI: 3.3V TTL with 100-ohm resistors in series |
| Communication Distance | 5cm~7cm |
| Module Dimensions | 41mm × 43mm |
| Card Dimension | 85.5mm × 54mm |
| Supported | II2, SPI and HSU (High-Speed UART) |
| Country of Origin | China |
