Description

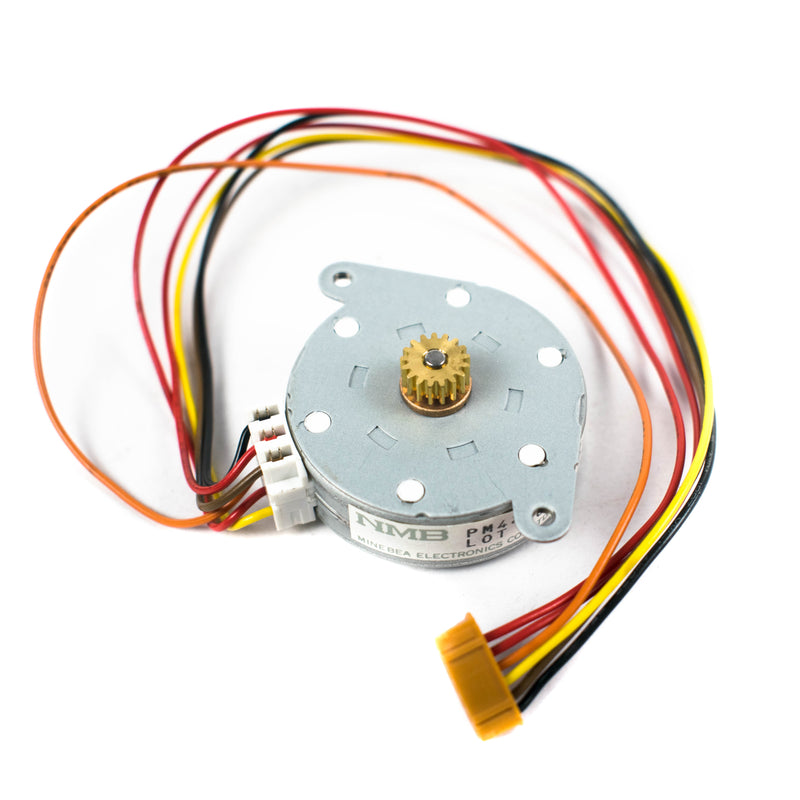

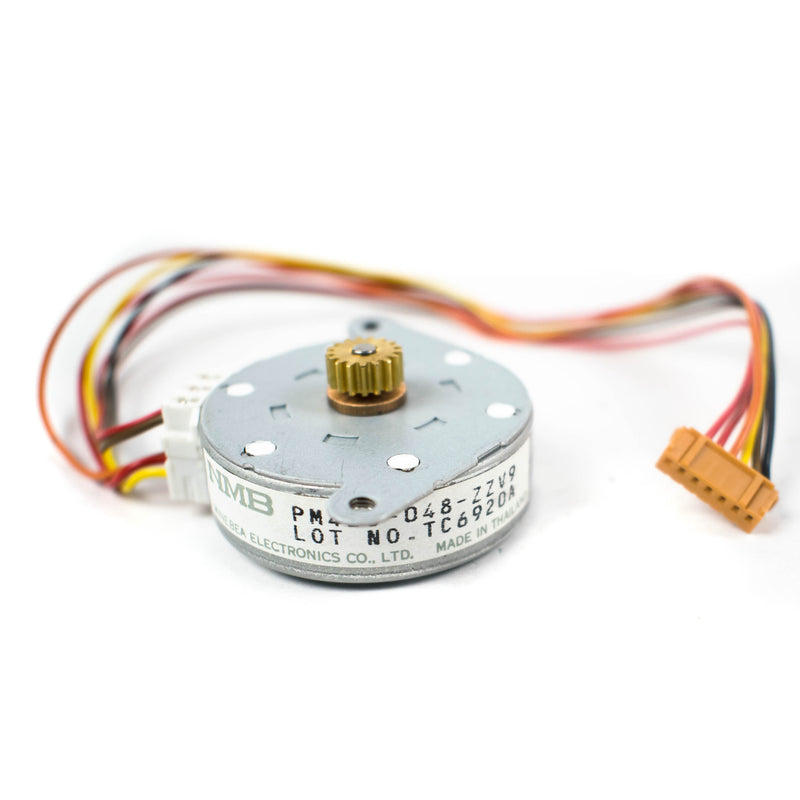

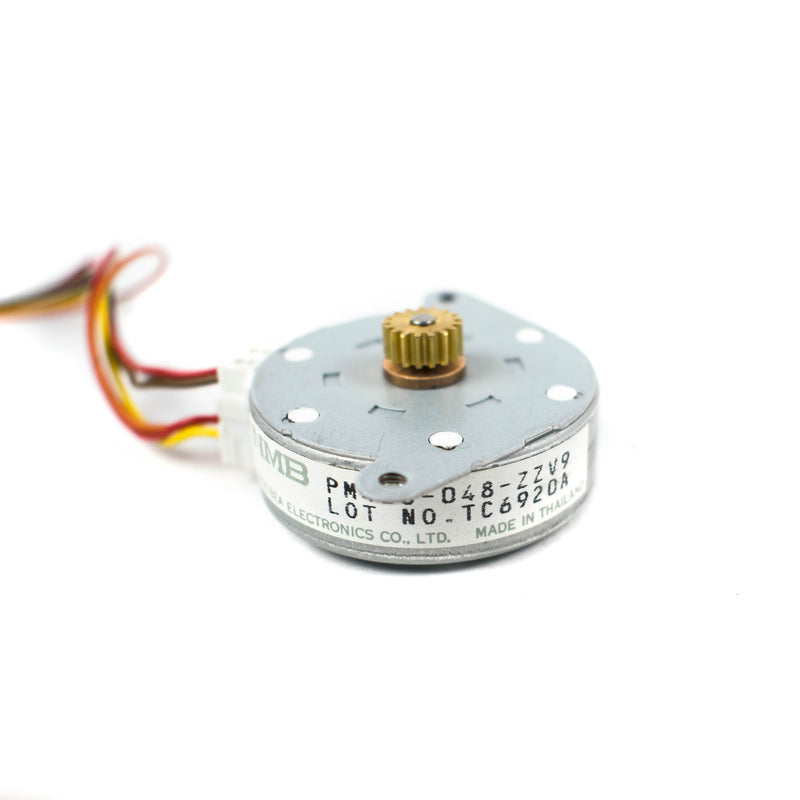

The PM42S-048 is a tiny 2-2 PHASE stepper motor with 48 steps per rotation and an operating voltage of 24v 600ma. It offers adequate torque to move small robots and comes with a gear shaft.
Application
- OA Equipment: Printer/Scanner
- Industrial Equipment: Flow control valve
- Vending Machines
- Sewing machine, Blind slider
Specifications
| Model | PM42S-048-ZZV9 |
| Operating Voltage | 24V DC |
| Max. Operating Current | 600mA |
| Number of Steps per Rotation | 48(7.5°/step) |
| Coil Resistance | 11.3Ω |
| Phase | 2-2 |
| Type | Bipolar |
| Holding Torque | 66mNm |
| Size | 42x47x22mm |
| Country of Origin | China |
