Description

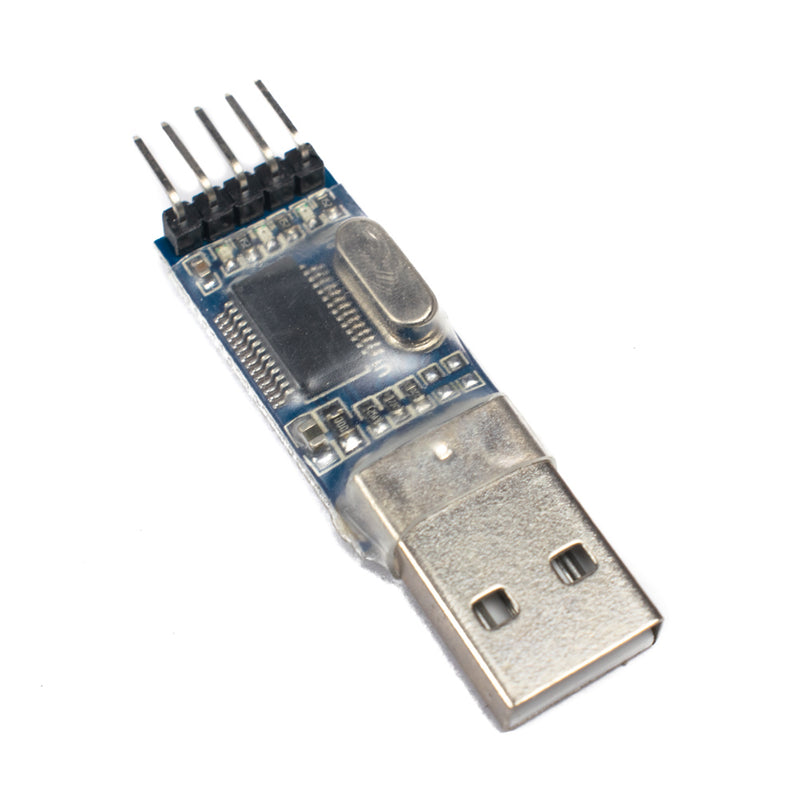

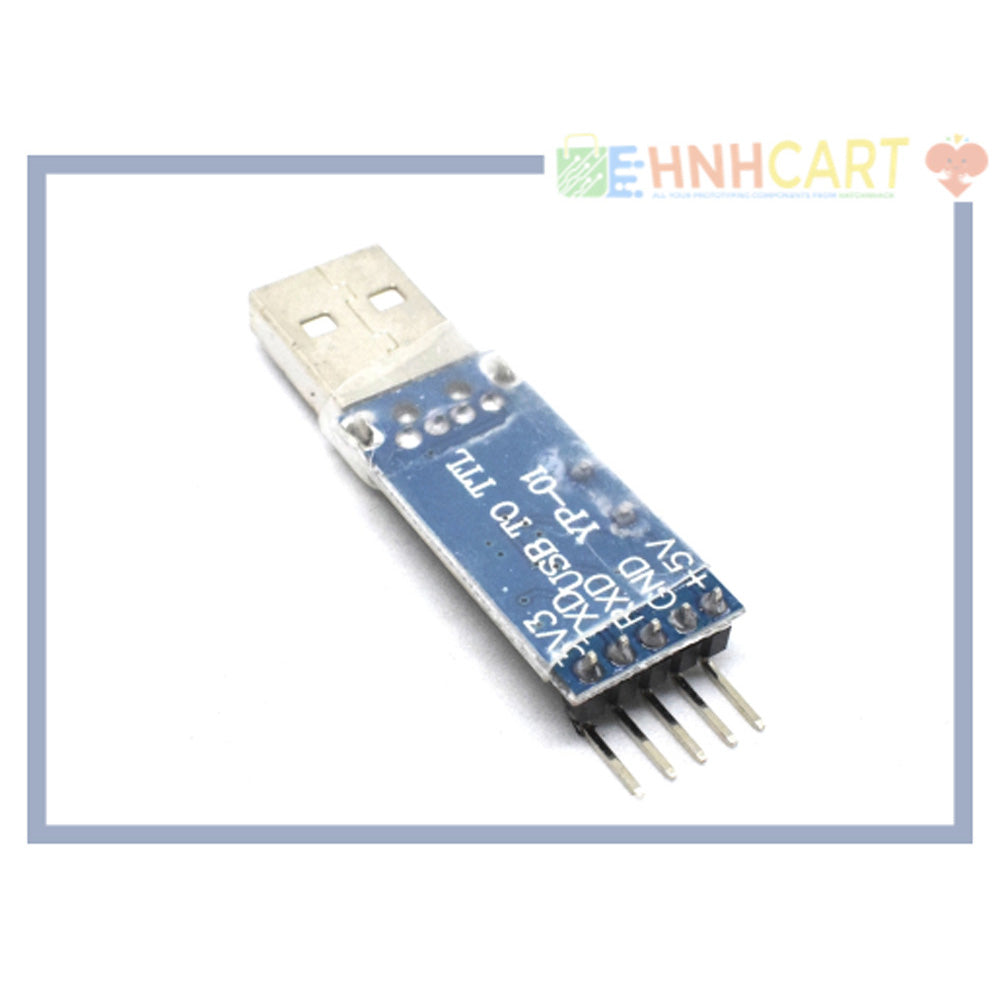

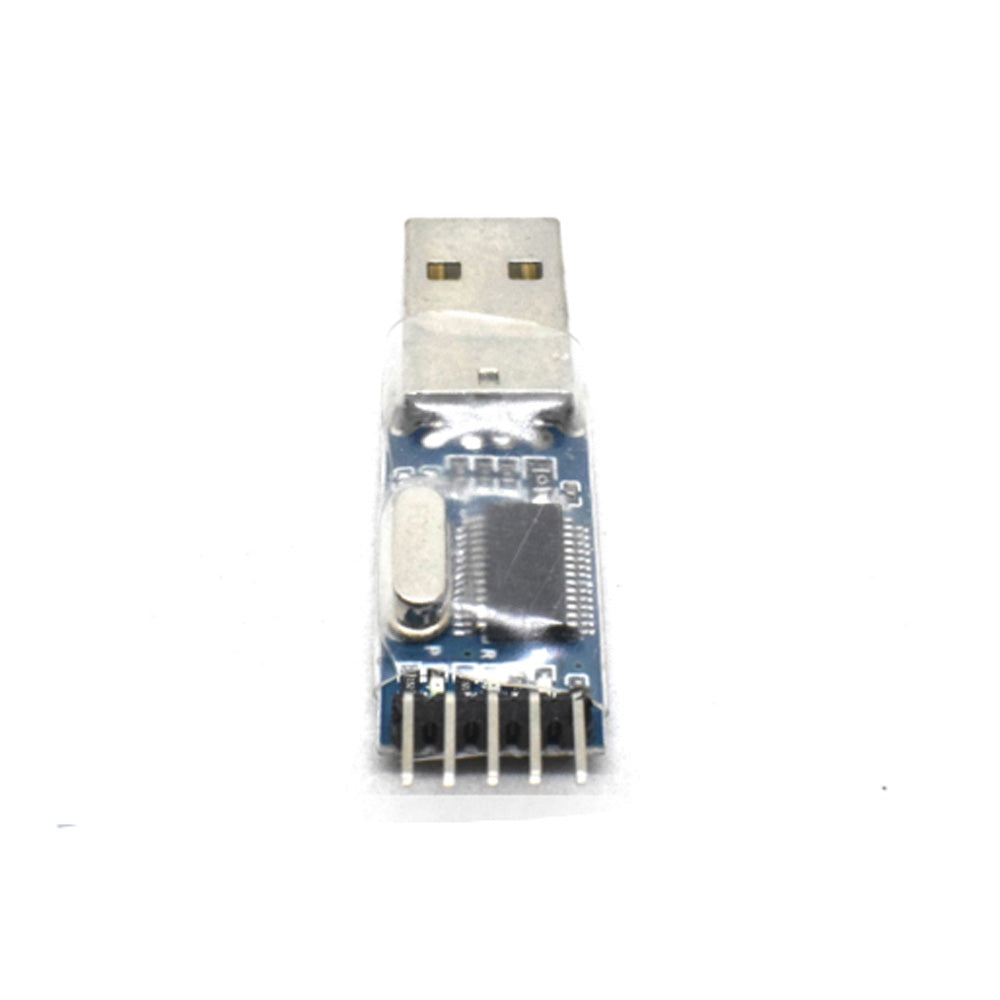

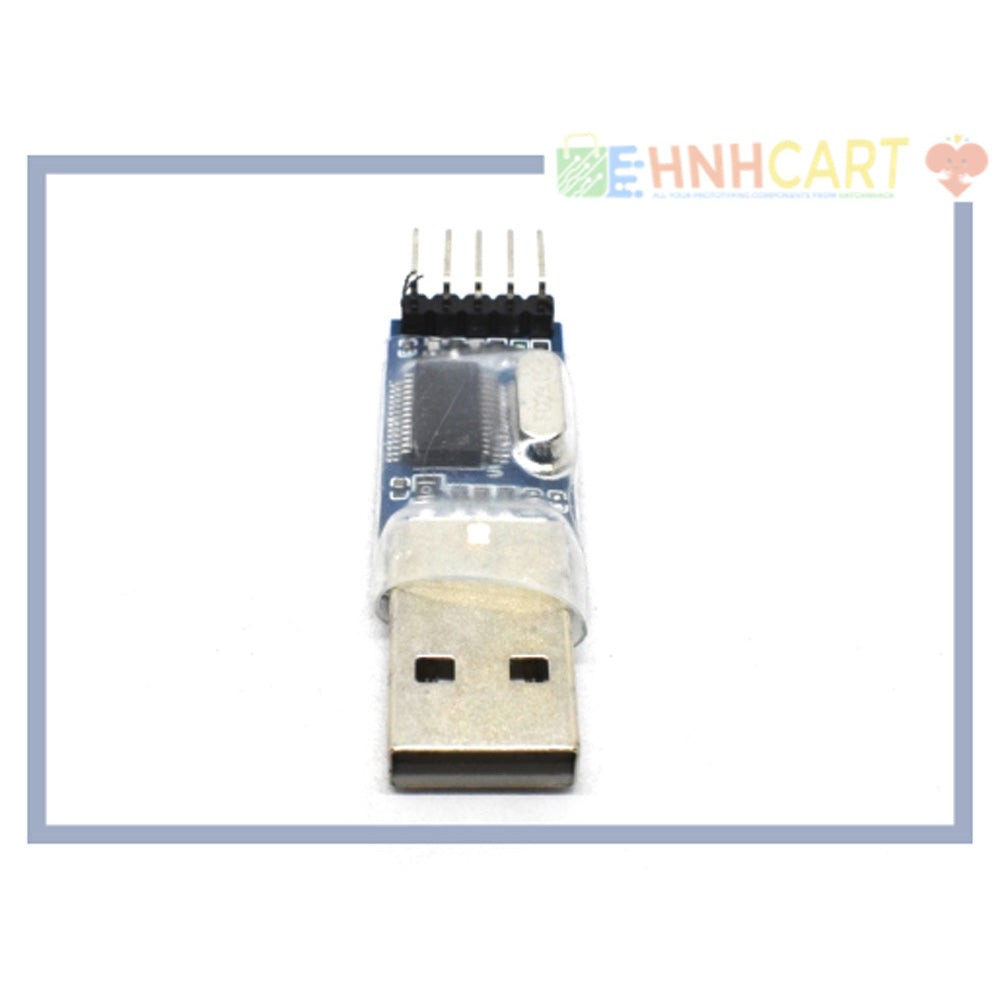

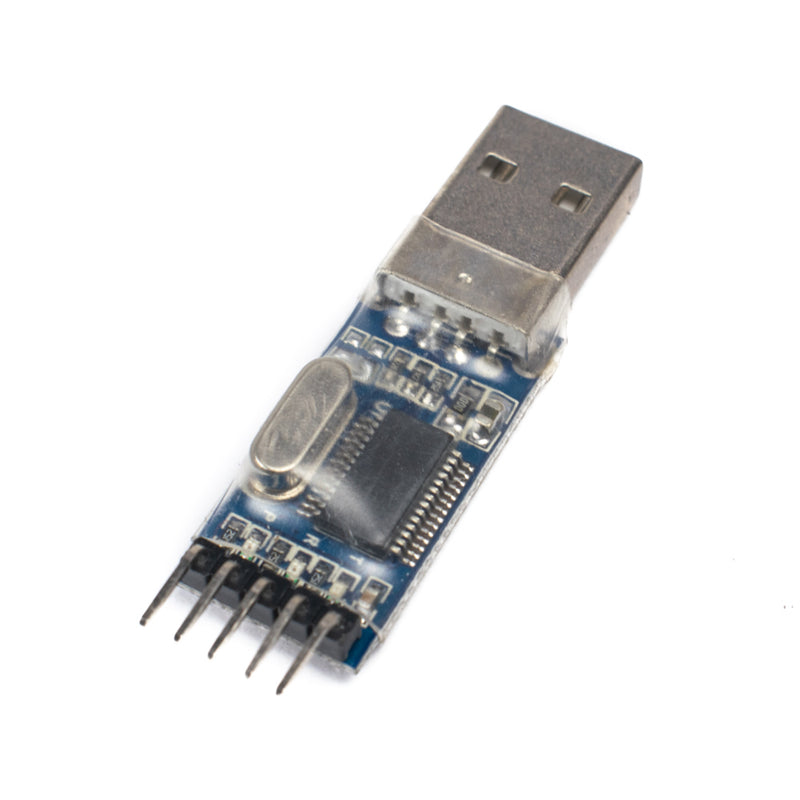

It's a PL2303 USB to TTL Converter Module. This module is a Transistor Transistor Logic to Universal Serial Bus converter. This module may be used to configure any device that uses the UART protocol for communication. The module is based on Prolific Technology's PL2303 bridge. It also contains a self-recovery fuse rated at roughly 500mA for safety. This module may be programmed to work with any microprocessor-based development kit that supports the UART communication protocol.
Features
- 500mA self-recovery fuse for protection
- Two data transmission indicator can monitor data transfer status in real-time.

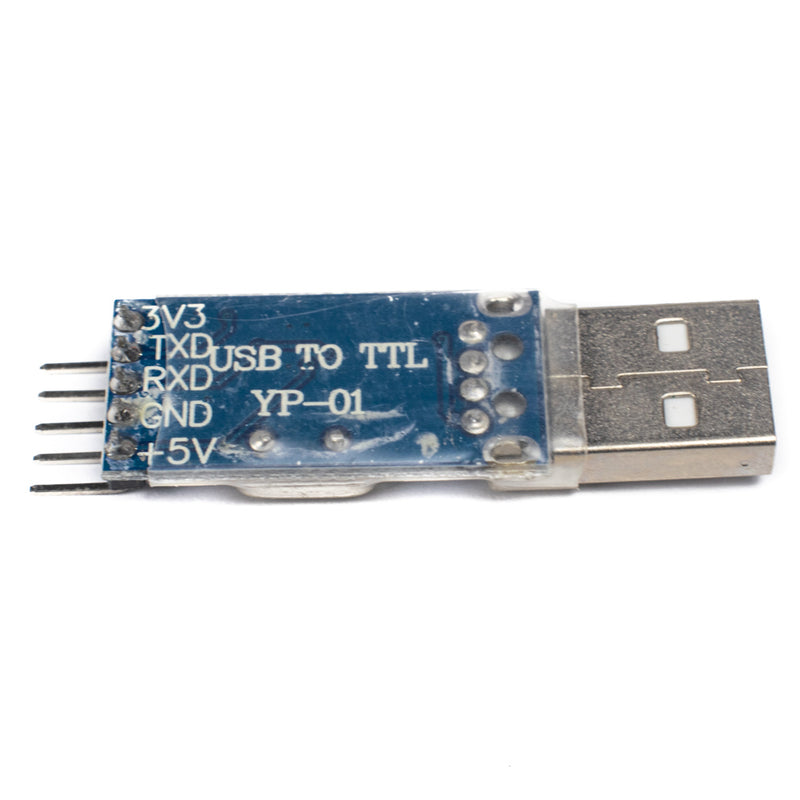

- Reserve 3.3V and 5V pin interface, easy for the DDWRT of different voltage system that needs power.
Specifications
| Input Supply voltage |
3.3V ~ 5V DC |
| Model |
PL2303HX |
| Support |
Windows 98 to Windows 7 (32 bit and 64 bit) |
| Country of Origin | China |
