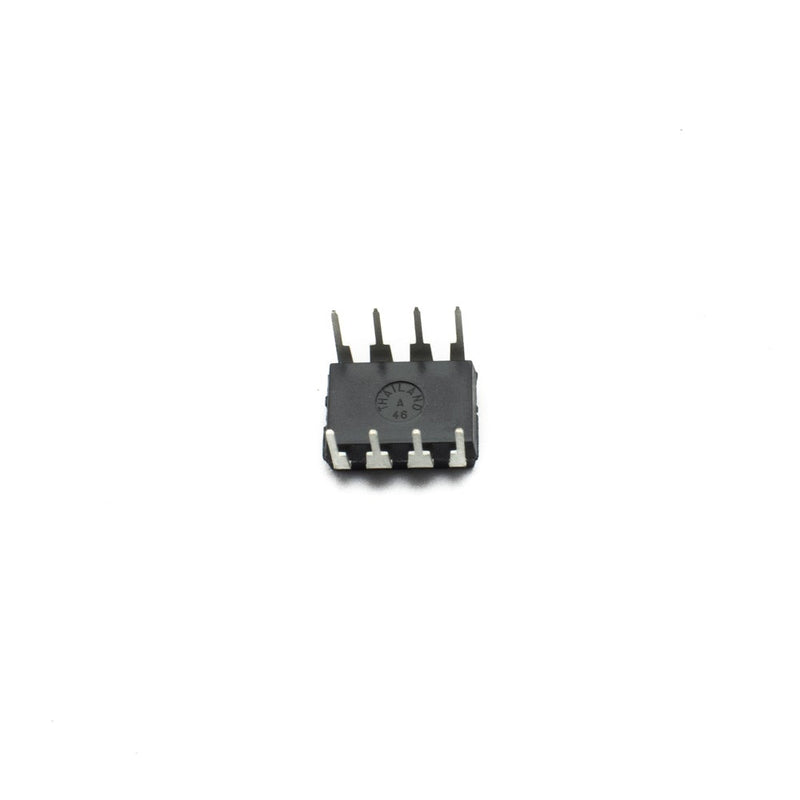

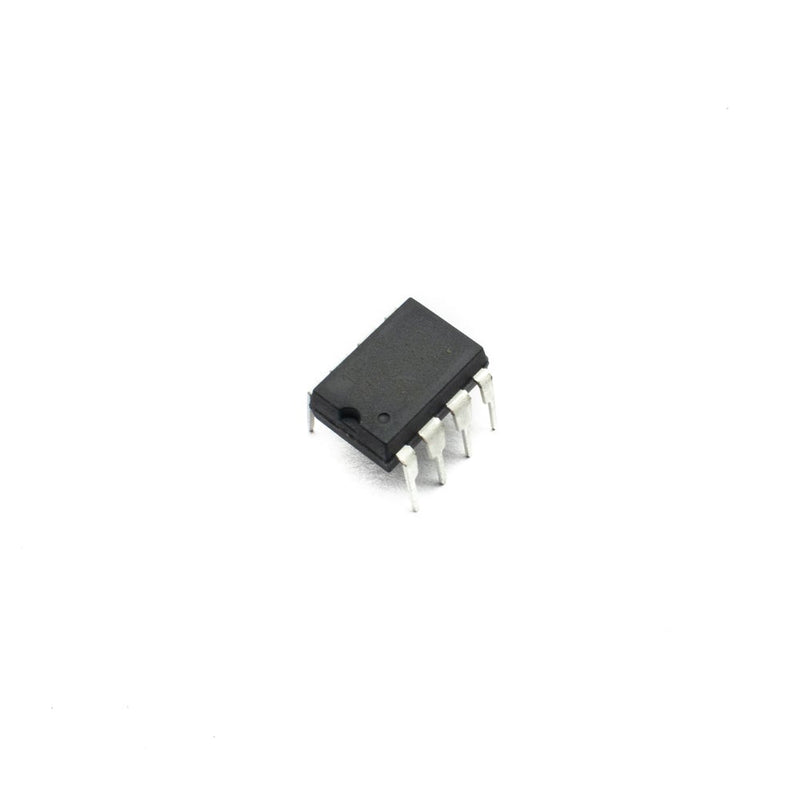

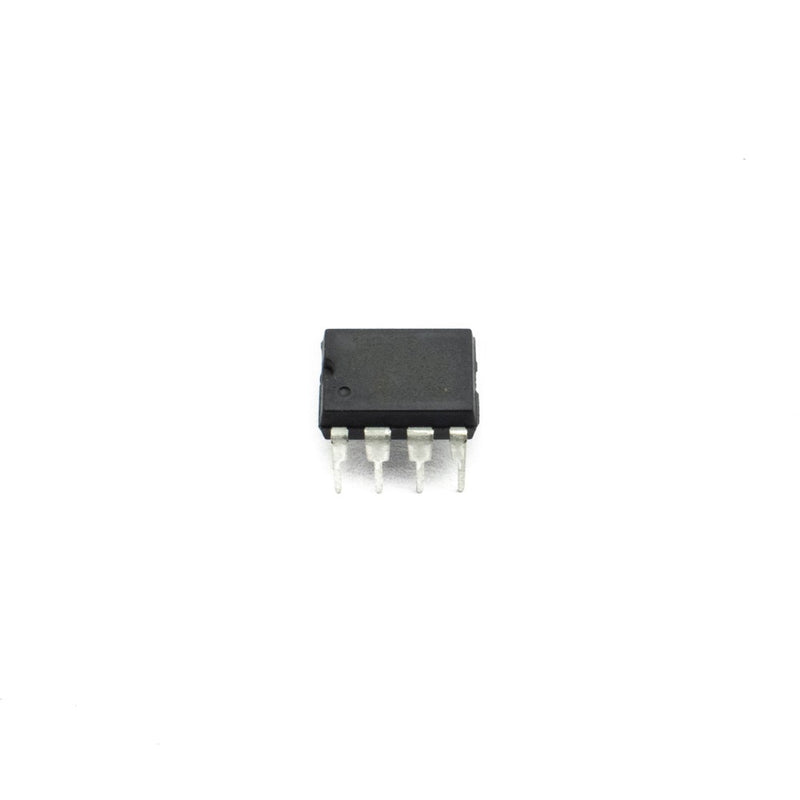

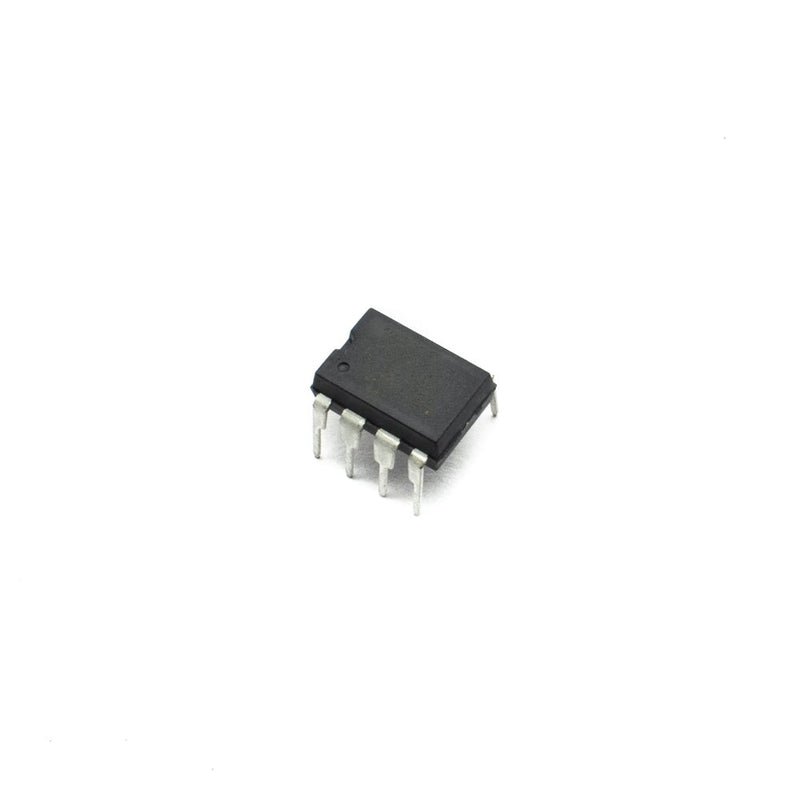

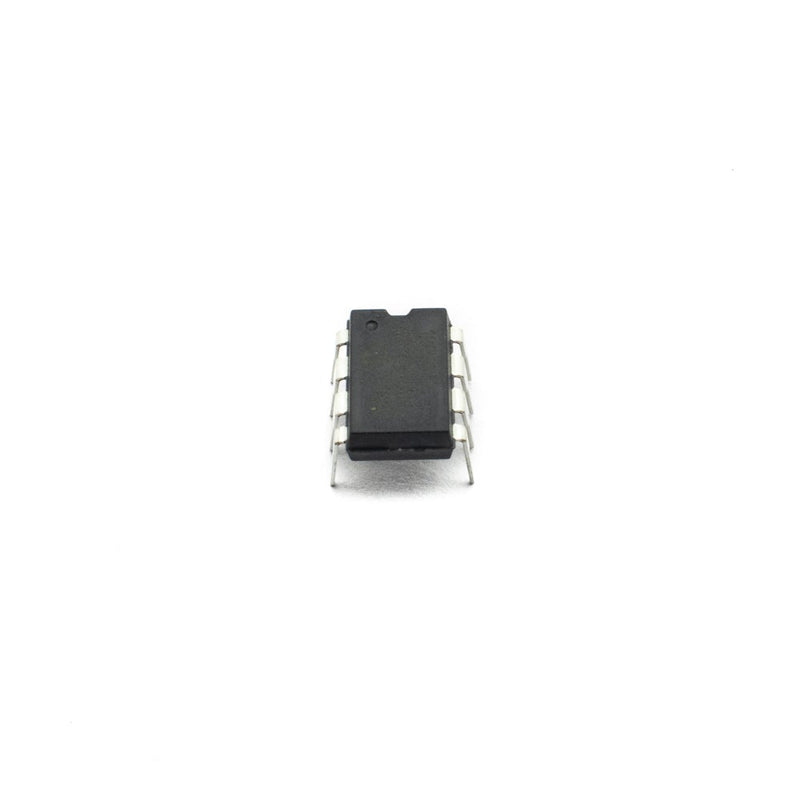

PIC12F675 8-Pin Flash-Based 8-Bit Microcontroller IC

Save 5%
Sold By: HatchnHackSKU: D12-62

Price:
Sale price₹ 91.00 Regular price₹ 96.00

Tax included Shipping calculated at checkout

Min Qty: 1

Description

PIC12F675 is an 8-Bit CMOS Microcontroller made by MICROCHIP TECHNOLOGY and is developed on high-performance RISC architecture. Because of its low cost and tiny size, this microcontroller is particularly popular among amateurs and engineers. The PIC12F675 microcontroller is intended for low-end applications and systems. Engineers will benefit from its high flash memory rewrite cycle for learning and experimentation. The controller features 2KBytes of flash memory, which is sufficient for beginners to create simple applications. Furthermore, the 6 GPIO pins are intended to handle a maximum current of 25mA, which is sufficient for many peripheral devices and sensors.

 Features:
  • Power-Saving Sleep mode•  Wide Operating Voltage Range – 2.0V to 5.5V
  • Industrial and Extended Temperature Range
  • Low-Power Power-on Reset (POR)
  • Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
  • Brown-out Detect (BOD)
  • Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation
  • Multiplexed MCLR/Input Pin
  • Interrupt-on-Pin Change
  • Individual Programmable Weak Pull-ups
  • Programmable Code Protection
  • High Endurance Flash/EEPROM Cell
Specifications
CPU 8-bit
Total number of pins 8
Programmable pins 6
Communication Interface ICSP or In-Circuit Serial Programming Interface (13,14 Pins) [Can be used for programming this controller]
ADC Feature 4 channels of 10-bit resolution
Timer Feature One 8-bit counter, One 16-bit counter
PWM channels Not available
Analog Comparator Available-1
External Oscillator Up to 20MHz
Internal Oscillator 4MHz  Internal R-C Oscillator factory calibrated to ±1%
Program memory / Flash memory 2Kbytes[100000 write/erase cycles]
CPU Speed 1MIPS @ 1MHz
Watchdog Timer  Available and is featured with Independent Oscillator for Reliable Operation
Power Save Modes Available
Operating Voltage 2.0V to 5.5V
Maximum current to any I/O pin IN:25mAOUT: 25mA
Operating Temperature -40°C to +125°C
Maximum current into VDD pin 250mA
Dimensions 9.6x8.2x3.3mm
Country of Origin China
