Description

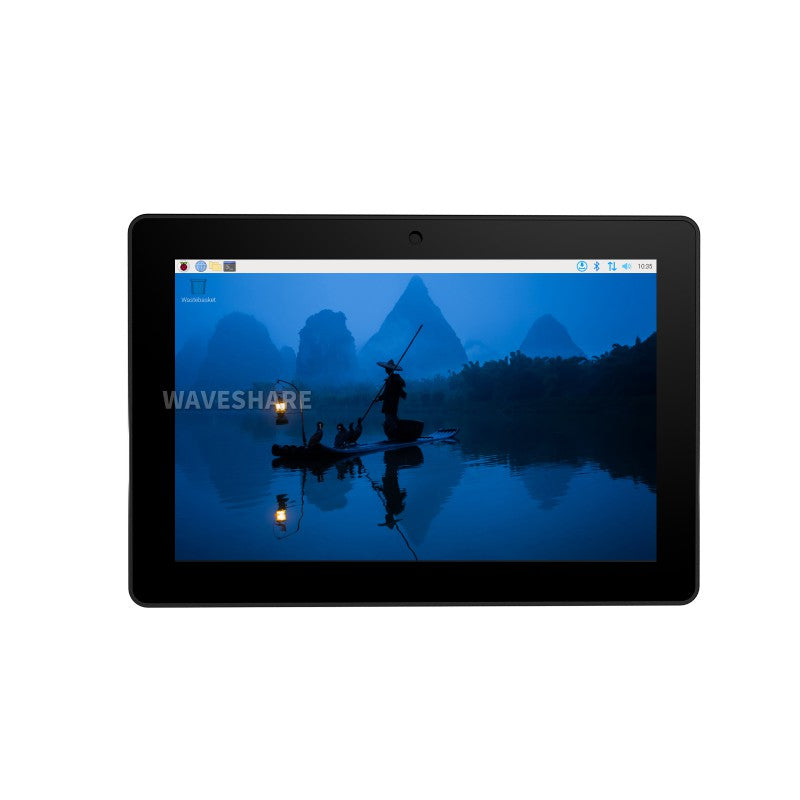

Industrial HMI All-in-one touch Display
for Raspberry pi 5
High Resolution | 10-point Touch | Aluminum alloy case
Size 8" / 10.1" |
Resolution 1280×800
|
Touch Type Capacitive
|
Display Panel IPS
|
Viewing Angle 178°
|
Touch Panel Toughened Glass
|
Touch Points 10-Points
|
Display Interface Dual Standard HDMI
|
Touch Panel Tech Optical Bonding
|
Front Camera 5MP
|
Size Options
8″ |
10.1″ |
Version Options
Pi5 All-in-one Display |
Touch Display + Accessories Only |
Toughened Glass Panel
Sensitive Touch Control With High Resolution Display, Durable Design
Built-In Raspberry Pi 5 (4GB/8GB)
Based On Raspberry Pi 5 With Broadcom BCM2712 2.4GHz Quad-Core 64-Bit Arm Cortex-A76 CPU
* the Raspberry Pi 5-4GB/8GB is optional.
5MP Front Camera
For Accurate Face Recognition, Ensuring Safety Every Moment
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical bonding, display well and dustproof
Adjustable Brightness Via Software
Excellent Heat Dissipation
Full Metal Enclosure With Efficient Heat Dissipation,
Pure Passive Cooling, No Fan Noise Worries
Two Power Supply Methods
Supports Power Supply Via Screw Terminal Or USB Type-C Port
VESA Mounting Support
Easily Adaptable To Various Monitor Arms,
Enjoy A Flexible Installation Experience
* Note: the monitor arm is NOT included, please refer to the package content for the detailed part list.
Interface
|
|
Dimensions
8inch Version
10.1inch Version
Resources
Wiki: www.waveshare.com/wiki/PI5-HMI-080C
Package Contains:
PI5-HMI-080C
- 8inch PI5 all-in-one display (Pi5-4GB included) x1
- OPTIONS PSU-27W-USB-C x1
- Mounting buckle (4PCS) x1
- Screws pack x1
PI5-HMI-080C-ACCE
- 8inch touch display x1
- Aluminum alloy heatsink x1
- Pi5-Camera-Cable-200mm x1
- Pi5-Display-Cable-200mm x1
- OPTIONS PSU-27W-USB-C x1
- Thermal pad 16*16*1mm x1
- TF card 64GB x1
- Mounting buckle (4PCS) x1
- Silicon button x1
- Screws pack x1
PI5-HMI-101C
- 10.1inch PI5 all-in-one display (Pi5-4GB included) x1
- OPTIONS PSU-27W-USB-C x1
- Mounting buckle (4PCS) x1
- Screws pack x1
PI5-HMI-101C-ACCE
- 10.1inch touch display x1
- Aluminum alloy heatsink x1
- Pi5-Camera-Cable-200mm x1
- Pi5-Display-Cable-200mm x1
- OPTIONS PSU-27W-USB-C x1
- Thermal pad 16*16*1mm x1
- TF card 64GB x1
- Mounting buckle (4PCS) x1
- Silicon button x1
- Screws pack x1
