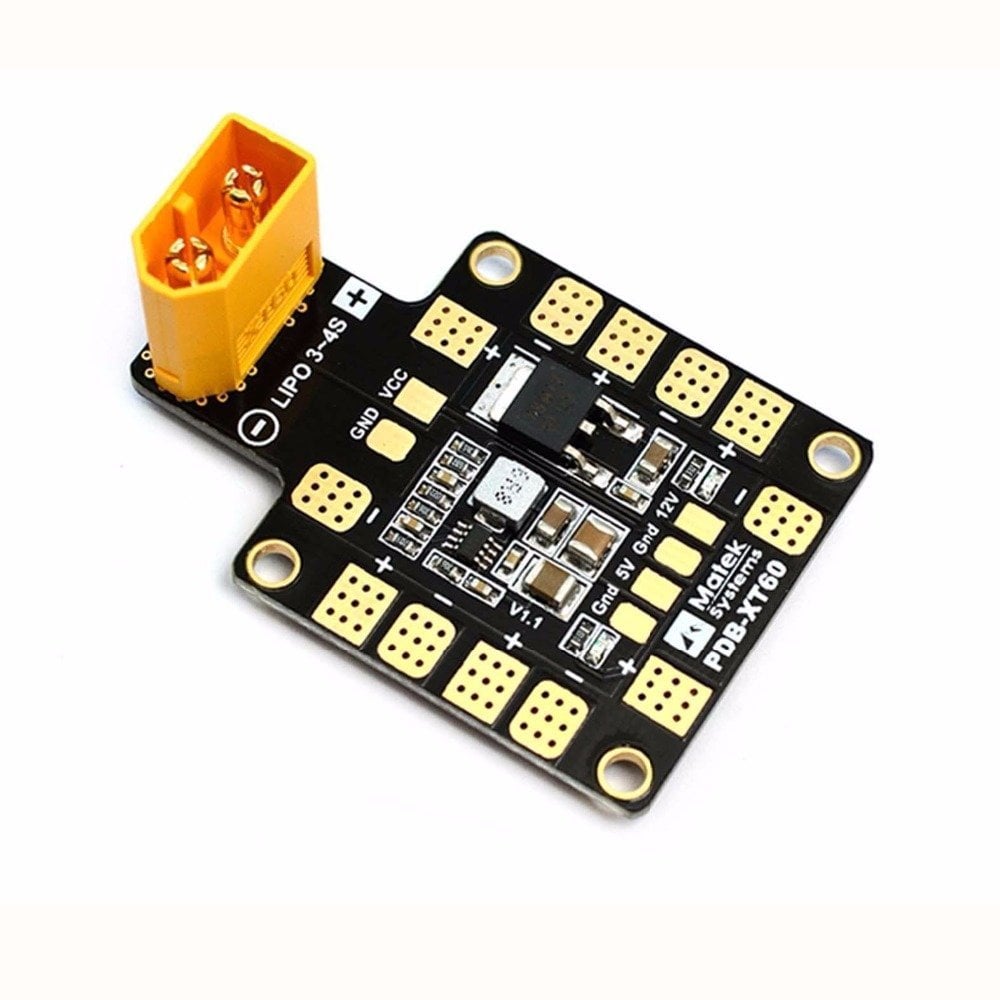

Description
- 4-layers and 1.6mm PCB
- Built-in XT60 Socket
- Total 6 pairs ESC solder tabs are fit for H or X type frame
- Regulated 5V and 12V outputs
- Short circuit tolerantInput voltage range: 9 – 18V DC (3S-4S LiPoly operation)
- Output continuous current: 25Ax4 or 15Ax6
- Output Peak current (10 seconds/minute): 30Ax4 or 20Ax6
- Short-circuit tolerant: 5 seconds/minute
| Brand |
Mateksys |
|---|---|
| Track Material |
2oz Copper |
| Short Circuit Tolerant Voltage(V) |
9 to 18 |
| Output Continuous Current |
25A @4 and 15A @6 |
| Output Peak Current(for 10 seconds) |
30A @4 and 20A@6 |
| Length (mm): |
36 |
| Width (mm): |
50 |
| Height (mm): |
4 |
| Weight (g): |
11 |
| Shipping Weight | 0.016 kg |
| Shipping Dimensions | 6 × 8 × 2 cm |
