PC814 Optocoupler IC
Rated 3.5/5 based on 11 customer reviews
PC814 Optocoupler IC

PC814 Optocoupler IC

  • Input-Output Isolation Voltage(Vrms): 5.0kV
  • Collector-Emitter Voltage: 80V
  • CTR: 20%-300% at Input Current of ±1mA
  • Input Type: AC Input
  • Package: 4 Pin DIP Package
In Stock
Product SKU: 2B21
15.00
₹ 12.71 + ₹ 2.29 (18% GST)
Wishlist
  • Order within
  • PC814 Optocoupler IC
    PC814 Optocoupler IC ₹ 15.00
This product: PC814 Optocoupler IC
₹ 15.00 1500
₹ 15.00

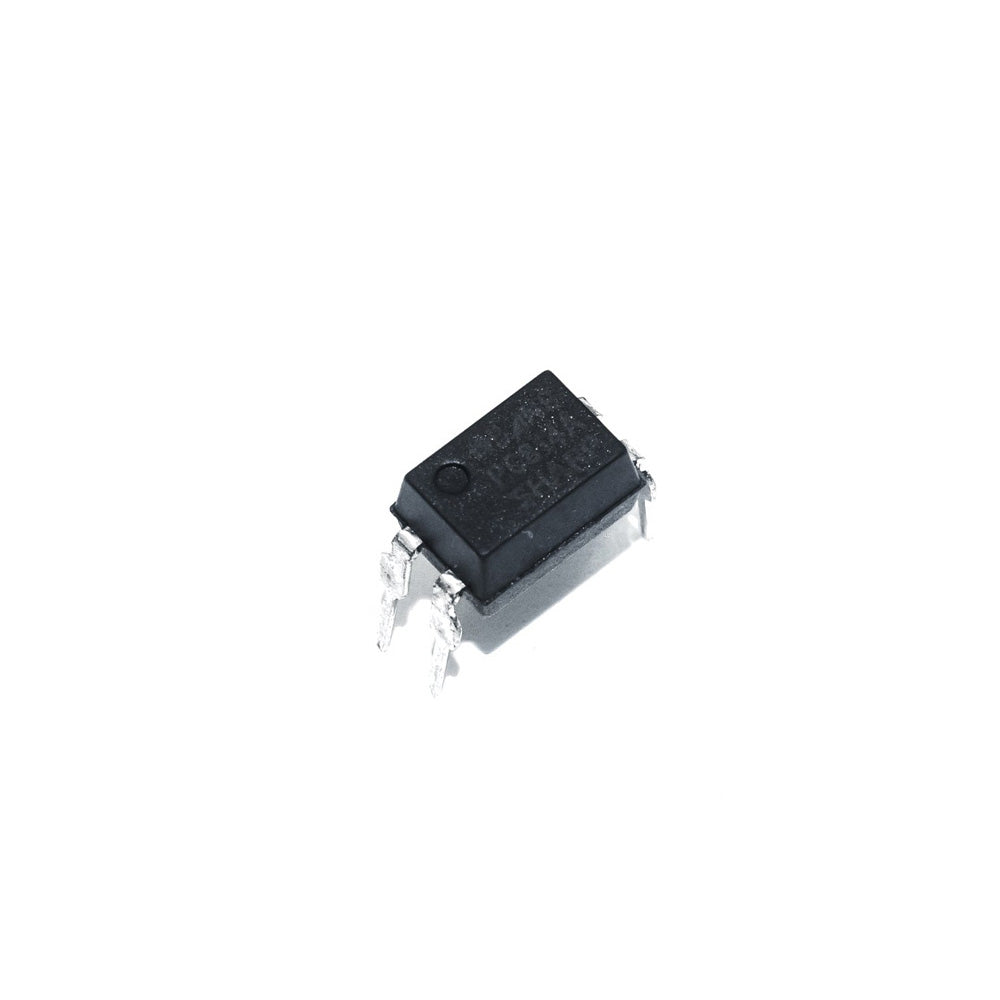

PC814 Photocoupler IC has a transistor that is controlled based on light (photon). So this IC basically has a pair of two IR (infrared) LEDs connected in reverse polarity and a photo-transistor inside it. When the IR LED is powered the light from it falls on the transistor and it conducts. PC814 IC is used to provide electrical isolation between two circuits, one of which is connected to IR LEDs and the other to a phototransistor. The digital signal sent to the IR LED is reflected on the transistor, but there is no physical connection between the two. This IC can be used to detect AC switching.

This comes in handy when you're trying to isolate a noisy signal from your digital electronics, so if you're looking for an IC to provide optical isolation in your circuit design, this could be the one.

Specification
 Input-Output Isolation Voltage(Vrms) 5.0kV
Collector-Emitter Voltage 80V
CTR 20%-300% at Input Current of ±1mA
Input Type AC Input
Package 4 Pin DIP Package

PC814 Photocoupler IC has a transistor that is controlled based on light (photon). So this IC basically has a pair of two IR (infrared) LEDs connected in reverse polarity and a photo-transistor inside it. When the IR LED is powered the light from it falls on the transistor and it conducts. PC814 IC is used to provide electrical isolation between two circuits, one of which is connected to IR LEDs and the other to a phototransistor. The digital signal sent to the IR LED is reflected on the transistor, but there is no physical connection between the two. This IC can be used to detect AC switching.

This comes in handy when you're trying to isolate a noisy signal from your digital electronics, so if you're looking for an IC to provide optical isolation in your circuit design, this could be the one.

 Input-Output Isolation Voltage(Vrms) 5.0kV
Collector-Emitter Voltage 80V
CTR 20%-300% at Input Current of ±1mA
Input Type AC Input
Package 4 Pin DIP Package
