Description

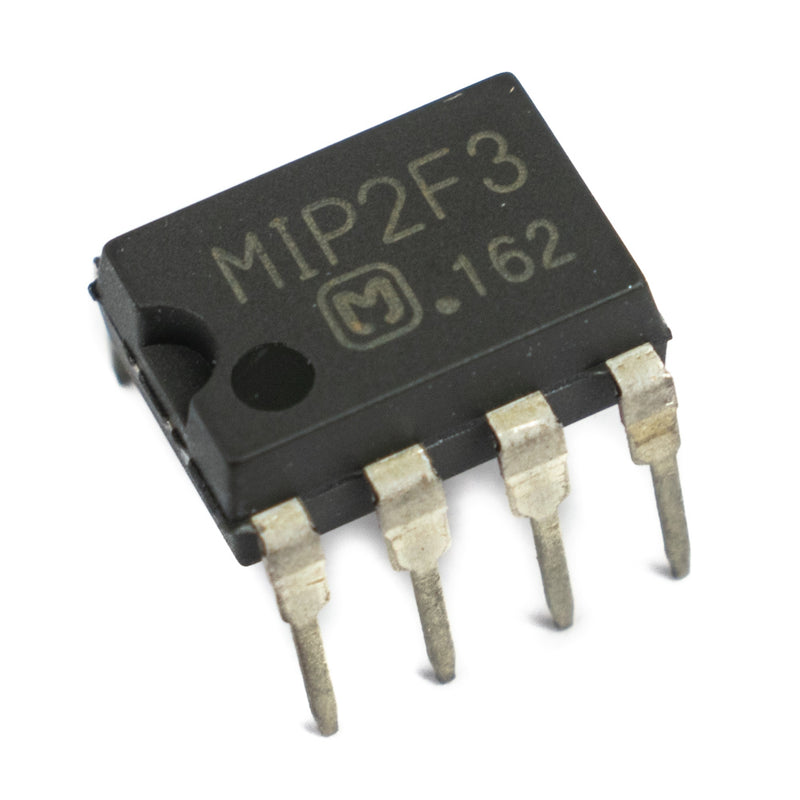

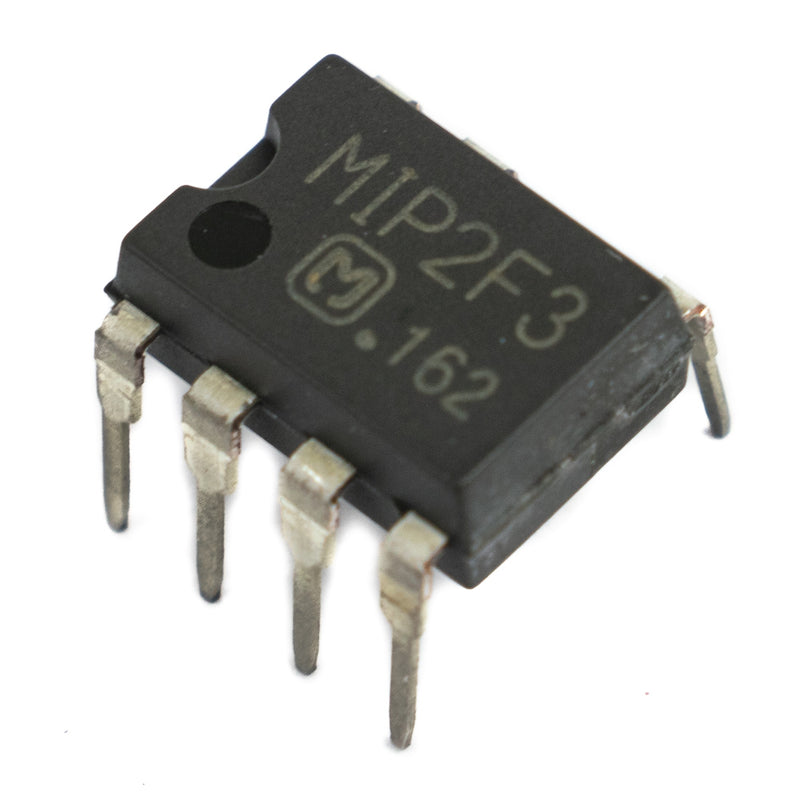

MIP2F3 IC is manufactured by Panasonic. It is a high-performance IPD designed for 20W battery chargers. It features built-in protection circuits necessary for compact power source charger circuitry. This allows a significant reduction in externally connected parts.
It provides PWM control when a normal load is applied and intermittent control with a low load. This results in greater efficiency for very low to maximum loads while also conserving power during standby.
Features
It provides PWM control when a normal load is applied and intermittent control with a low load. This results in greater efficiency for very low to maximum loads while also conserving power during standby.
Features
- Reduction of input voltage dependency
- Significantly reduce no-load power consumption: (At 100 V AC input: 20 mW, at 240 V AC input: 20 mW)
- Built-in protection function required for charger circuit
Specifications
Model | MIP2F3 |
Brand | Panasonic |
Product Type | High-performance IPD for 20W battery charger |

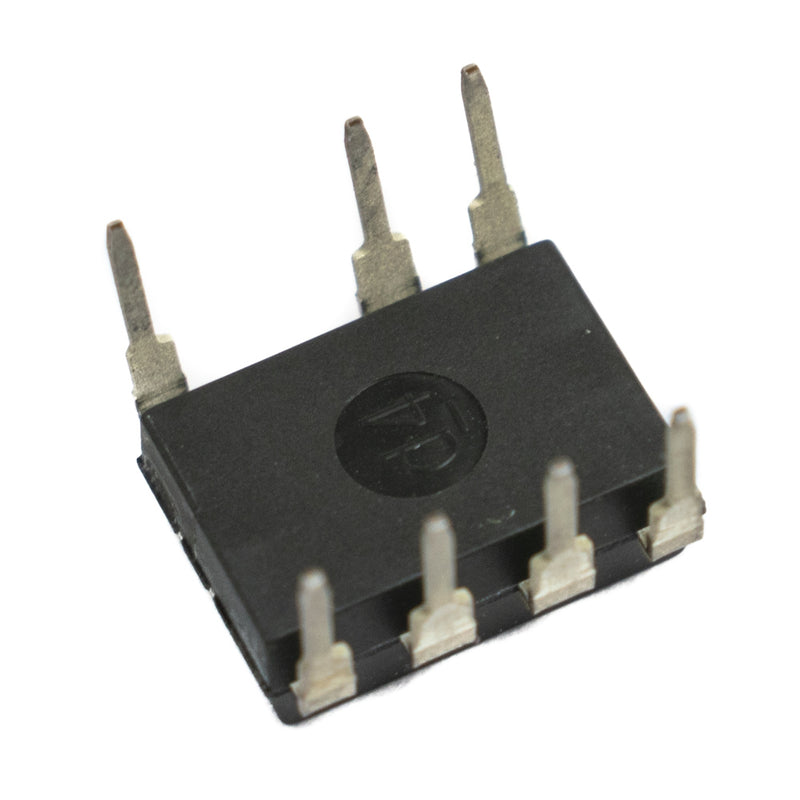

Package | DIP 7 |
Country of Origin | China |
