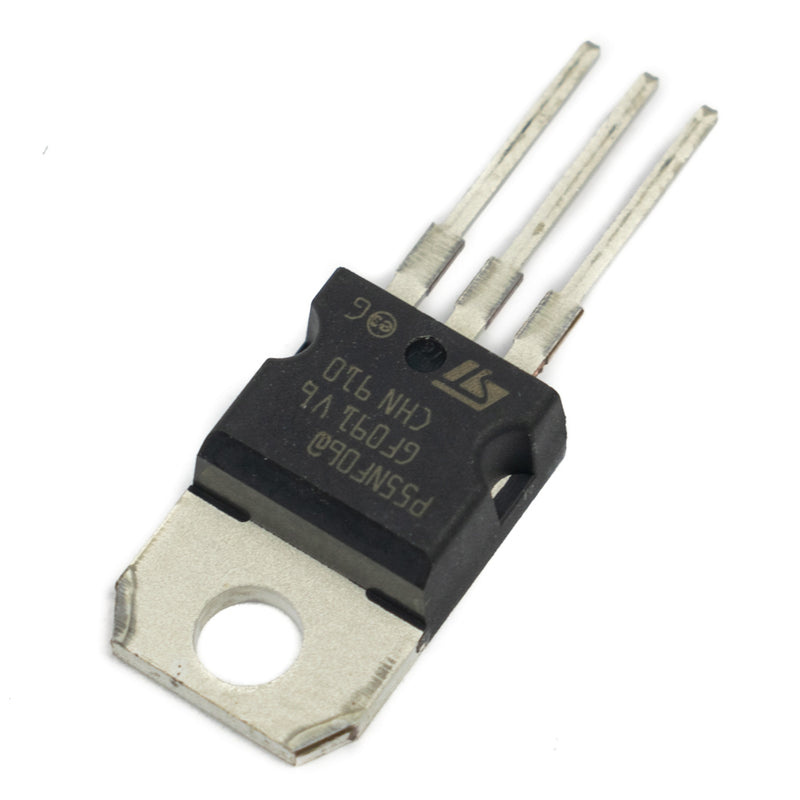

P55NF06 MOSFET - 60V 50A N Channel Power MOSFET

Save 19%
Sold By: HatchnHackSKU: C09-26

Sale price₹ 22.00 Regular price₹ 27.00

Tax included Shipping calculated at checkout

Out of stock


The P55NF06 is an N-channel MOSFET with a high drain current of 50A and a low Rds value of 18 mΩ. It also has a VGS of 20V at which the MOSFET will start conducting. Hence it is commonly used to drive applications. However, a driver circuit is needed if the MOSFET has to be switched in completely


  • Its N-Channel MOSFET
  • It is mainly suitable electronic ballast, and low power switching mode power appliances.
  • Its Vds is 60V
  • Its Rds is 18mOhm


Part Number P55NF06
 Polarity N-Channel
Drain Source Breakdown Voltage(Vds) 60v
Continuous Drain Current(Id) 50A
Drain Source Resistance(Rds) 18mOhm
Gate Source Voltage 20V
Power Dissipation (Pd) 110
Package TO-220
Operating Temperature Range -55 - 175°C
Country of Origin China
