OWON MTQ 1016B Analogue Oscilloscope - 10 MHz 1 Channel

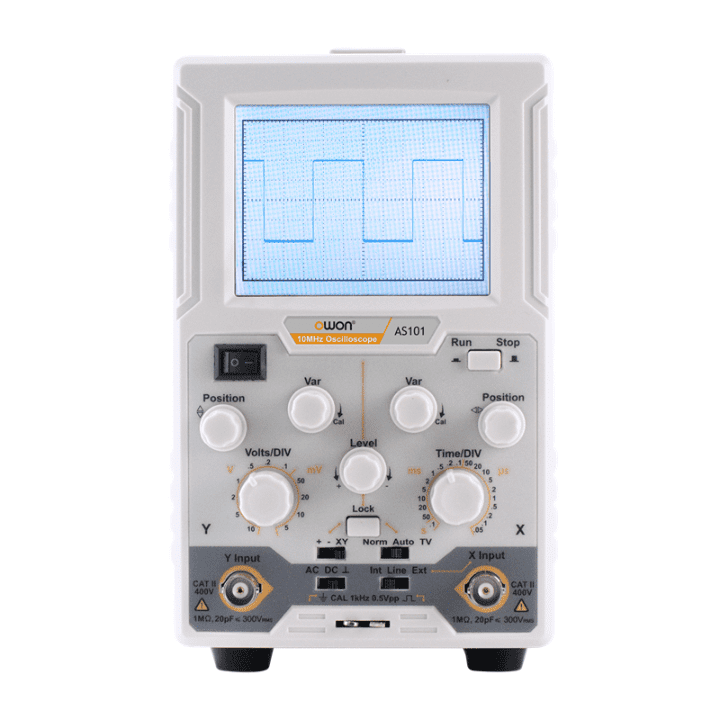

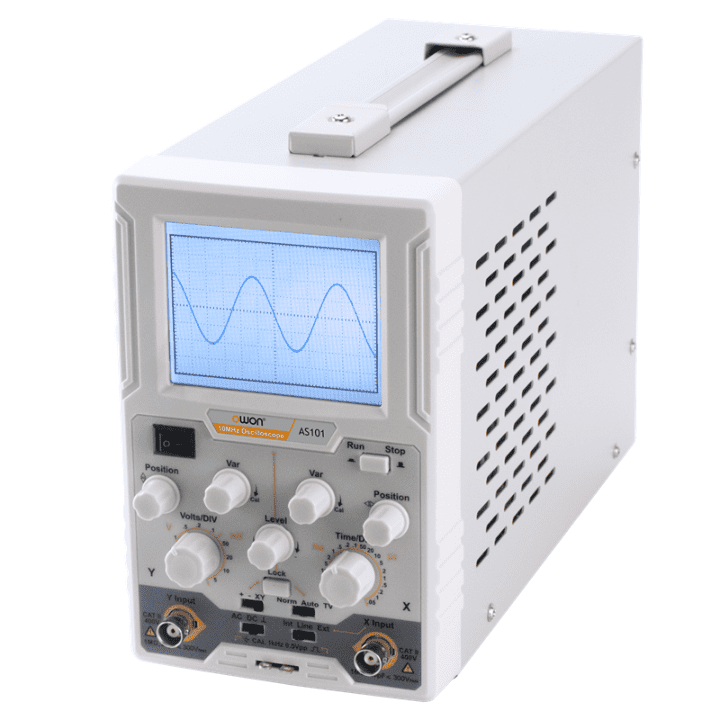

The OWON AS101 is a light and compact single channel oscilloscope with simplified control layout for student operation and lockable triggering feature. It is the best choice to replace an analogue oscilloscope.
It is a great introductory unit with a useful set of features which has been chosen by our technical specialists as a replacement for the now discontinued Unilab Student Oscilloscope.
Oscilloscope technology is slowly beginning to change from CRT to digital mechanisms as the cathode ray tubes become more difficult to source.

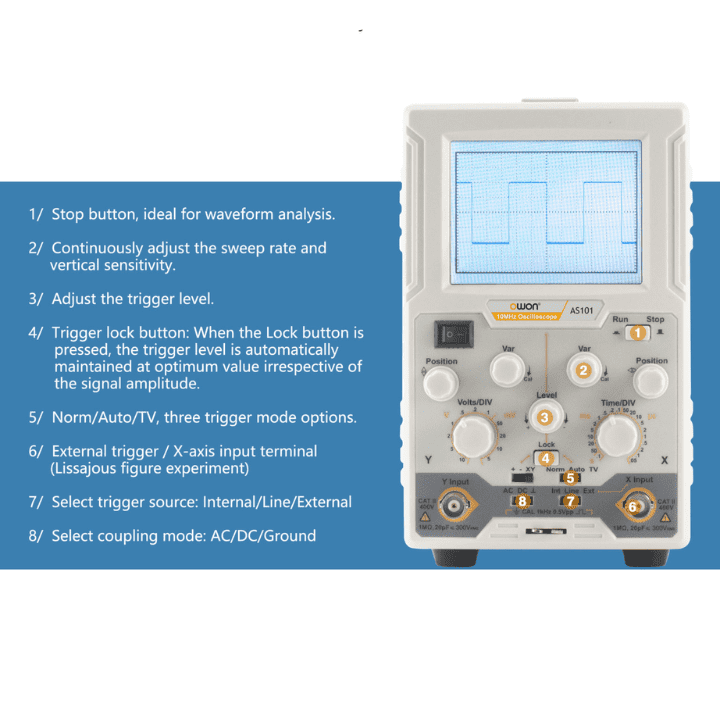

The simple control panel is identical to an analogue oscilloscope allowing for ease of set up, student operation and demonstration use in the classroom. The included quick-start guide provides easy to follow instruction when setting up the Oscilloscope. It enables the teaching of the basics of Oscilloscope use whilst having a useful set of features.
Key Features:
- Has a Bandwidth DC: 0 Hz to 10 MHz, AC: 10 Hz to 10 MHz.
- Single-channel input for measurements.
- Sample Rate of 100 MS/s (Mega Samples per second).
- Scanning speed ranges from 0.05 μs/DIV to 0.1 s/DIV with 1-2-5 step increments.
- 3.7-inch colored LCD screen for clear data visualization.
- Accepts 100V to 240V AC input, 50/60 Hz, CAT II safety category.
- Power Consumption is less than 15 watts.
Applications:
- Electronic circuit debugging
- Circuit testing
- Design and manufacture
- Education and training
- Automobile
- Maintenance and testing

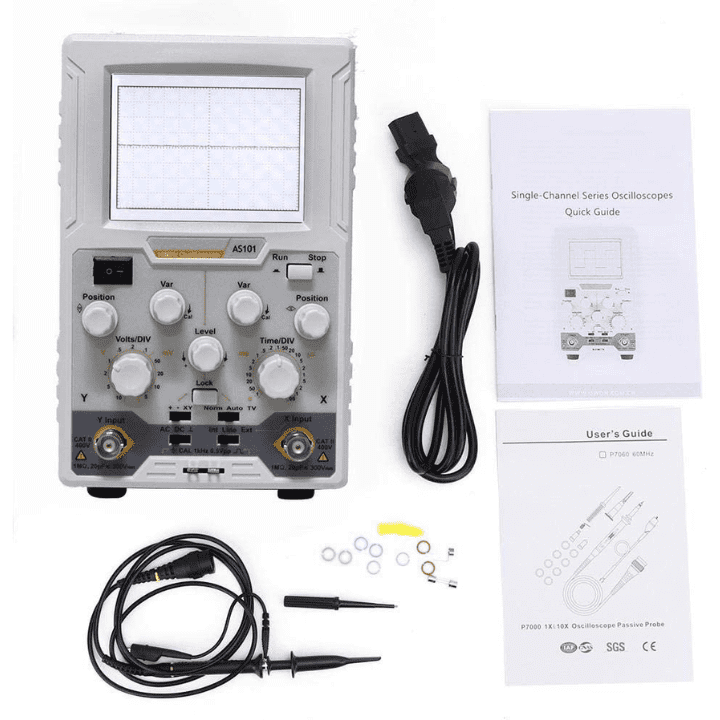

Package Includes:
- Power Cord
- Manual
- Probe
- Probe Adjust
Specifications:
| Bandwidth DC | 0~10MHz, AC: 10 Hz~10MHz |
| Channel | 1 |
| Sample Rate | 100MS/s |
| Scanning speed | (S/DIV) 0.05us/DIV ~ 0.1s/DIV,step by 1 – 2 - 5 |
| Display | 3.7" Colored LCD (Liquid Crystal Display) |
| Power Supply | 100V - 240V AC, 50/60Hz, CAT II |
| Power Consumption | ＜15W |
| Dimension | 117 x 192 x 288 mm |
| Weight | 1.8 kg |
