Description
- Micro-controller : ATmega328P.
- Operating Voltage: 5V.
- Input Voltage (recommended) : 7-12V.
- Digital I/O Pins: 14 (of which 6 provide PWM output).
- Analog Input Pins: 6.
| Model Type |

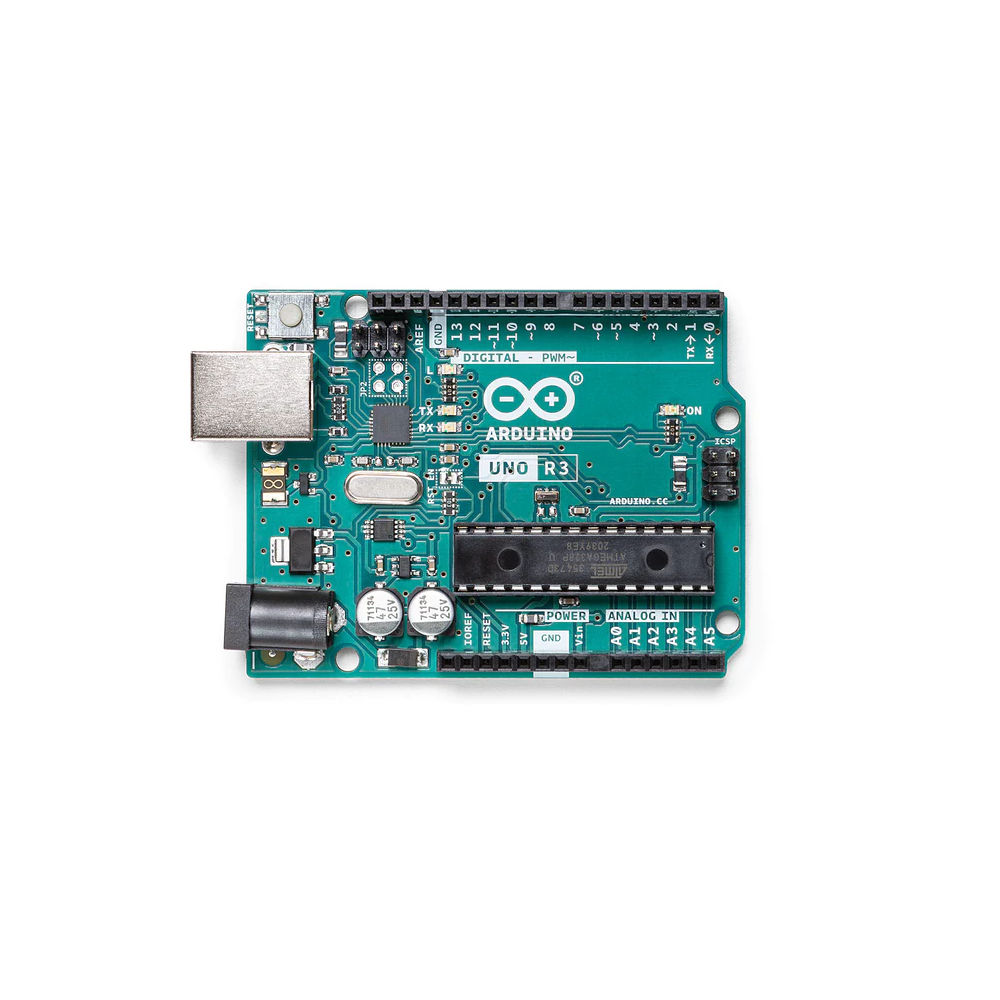

Arduino Uno R3 |
|---|---|
| Microcontroller Chip |
ATmega328P |
| Operating Voltage (VDC) |
5 |
| Input Voltage(Recommended) |
7-12V |
| Analog I/O Pins |
6 |
| Digital I/O Pins |
14 (of which 6 provide PWM output) |
| PWM Digital I/O Pins |
6 |
| Clock Speed |
16 MHz |
| Flash Memory |
32 KB |
| SRAM |
2 |
| EEPROM |
1 KB (ATmega328P) |
| DC Current for 3.3V Pin (mA) |
50 |
| DC Current per I/O Pin (mA) |
20 |
| On Board LEDs |
Yes |
| Operating Temperature (°C): |
-10 to 60 |
| Weight (g): |
25 |
| Length (mm): |
68.6 |
| Width (mm): |
53.4 |
| Height (mm): |
12.5 |
| Shipping Weight | 0.05 kg |
| Shipping Dimensions | 9 × 6 × 3 cm |
