Description

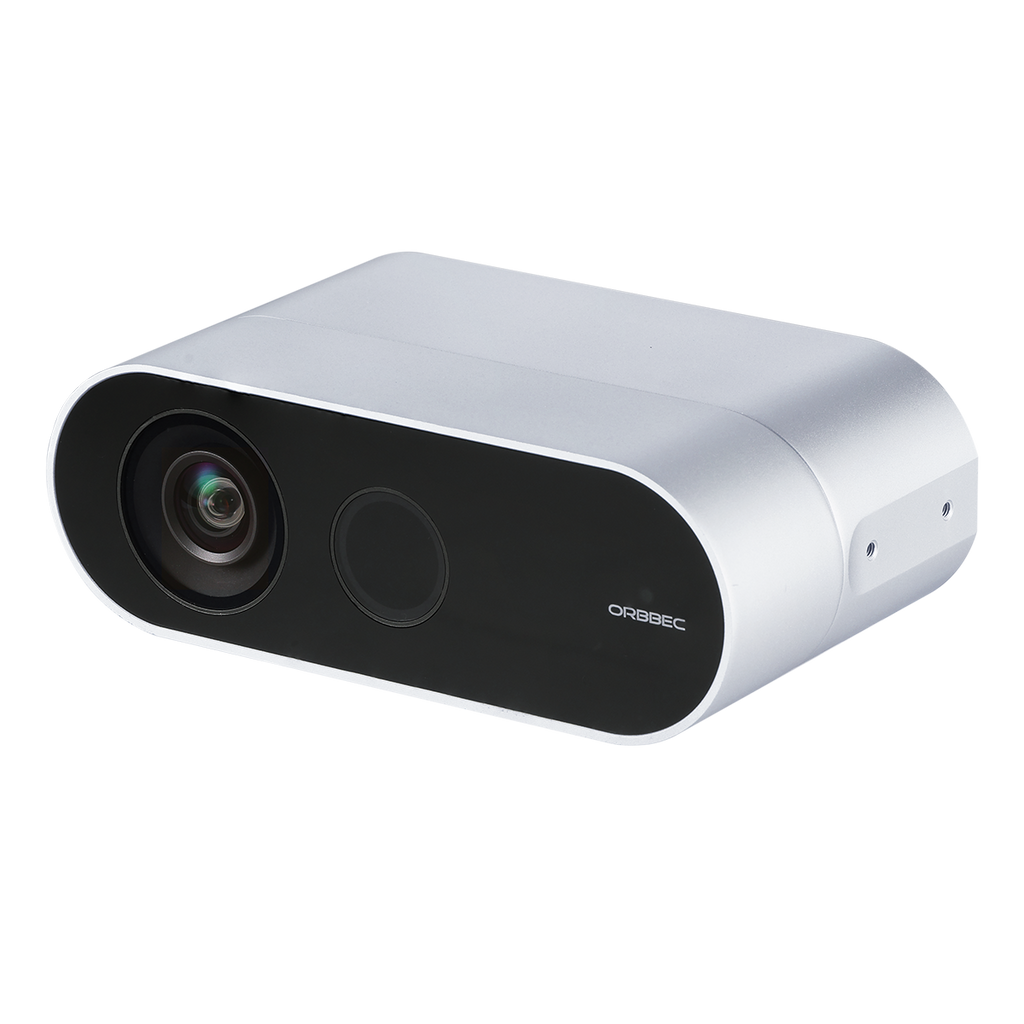

Femto Bolt is a compact, high-performance device with multi-mode Depth and RGB cameras and USB-C connection for power and data. Its versatility and price makes it attractive for AI-developers for 3D vision applications.
The depth camera uses Microsoft’s industry-proven ToF technology and has identical operating modes and performance as the Microsoft Azure Kinect.
This device can serve as a direct replacement of Microsoft Azure Kinect
Performance and Programmability
- High resolution and high accuracy across a wide range of operations.
- Wide Field of View covers large area.
- HDR (High Dynamic Range) function preserves details.
- Easy camera setup with a rich set of APIs for various applications.
Ease of use for AI Developers and Commercial Applications
- Depth and RGB cameras and IMU in a single device.
- Combined data and power with USB-C 3.2 connection.
- High precision synchronization trigger control.
Applications
- medical rehabilitation
- somatosensory interaction
- production / manufacturing
- Smart retail systems
- Exercise fitness
Technical Specs
| Product Name | Femto Bolt |
|---|---|
| Environment | Indoors |
|
Depth measurement range |
NFOV unbinned：0.5m – 3.86m NFOV binned：0.5m – 5.46m WFOV binned：0.25m – 2.88m WFOV unbinned：0.25m – 2.21m |
| Relative measurement accuracy | Laser wavelength 850nm, ambient light 2.2 μ W / cm2 / nm, object surface reflectivity: 15% to 95% Relative accuracy: random error standard deviation of 17mm Absolute accuracy: a distance with a typical systematic error of <11 mm + 0.1% (no multipath interference) |
| Data transmission interface |
Type C, USB3.0 8-pin connector *8-pin connector is a multi-machine synchronization interface |
| Power Supply |
DC (12V 2A) or Type C (5V 3A) |
| Working Mode | Working mode 1: DC power supply + Type-C data transmission Working mode 2: Type-C power supply + Type-C data transmission |
| Power Consumption | Average power consumption: DC power supply + Type-C data transmission: 4.7W Type-C power supply + Type-C data transmission: 4.3W |
| Peak power consumption: DC power supply + Type-C data transmission: 8.7W Type-C power supply + Type-C data transmission: 7.7W |
|
| Operating Temperature | 10℃ - 25℃ |
| Operating Humidity | 8% RH-90% RH (non-condensation) |
| Dimensions | 115.30×64.95×40.26mm ± 0.3mm |
| Weight | 348g ± 3g |
| Depth image resolution @ frame rate | NFoV unbinned：640x576@5/15/25/30fps NFoV binned：320x288@5/15/25/30fps WFoV unbinned：1024 x1024@5/15fps WFoV binned：512x512@5/15/25/30fps |
| Degree of depth FOV | NFoV unbinned & binned：H 75° V 65° WFoV unbinned & binned：H 120° V 120° |
| Infrared camera resolution @ frame rate | NFoV unbinned：640x576@5/15/25/30fps NFoV binned：320x288@5/15/25/30fps WFoV unbinned：1024 x1024@5/15fps WFoV binned：512x512@5/15/25/30fps |
| IR FOV | NFoV unbinned & binned：H 75° V 65° WFoV unbinned & binned：H 120° V 120° |
| Color Image Resolution @ Frame Rate | 3840 x 2160@5/15/25/30fps MJPEG 2560 x 1440@5/15/25/30fps MJPEG 1920 x 1080@5/15/25/30fps MJPEG 1280 x 720@5/15/25/30fps MJPEG、Y UY2、N V12 1280 x 960@5/15/25/30fps MJPEG |
| Color Picture FOV | H 80° V 51° D 89°±2° |
| Anti Flashing | 50Hz & 60Hz |
| IMU (6 axis acceleration & 6-axis angular velocity) |
Data format: IMU Frequency: 50-2000Hz |
| Environment |
Indoor & Semi-Outdoor |
| Safety |
Class 1 Laser |
| Principle |
iTOF |
| Certification |
ROHS, Reach, WEEE, CP65, EMC, FCC, IC, UKCA, Class 1, FDA |
