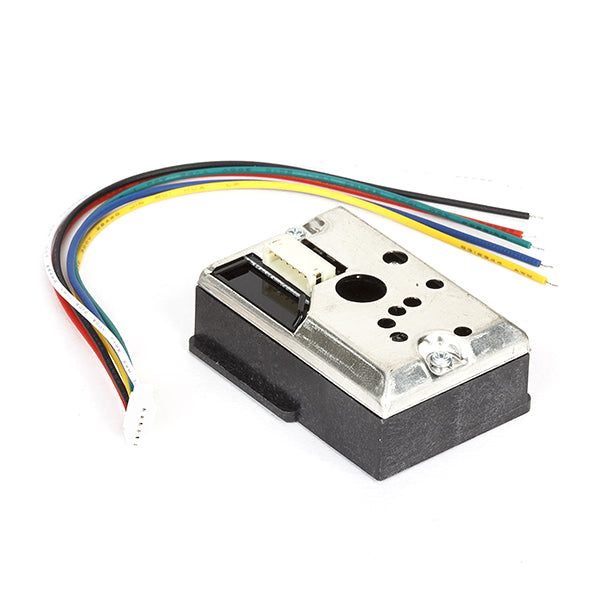

Optical Dust Sensor with Cable

Optical Dust Sensor with Cable

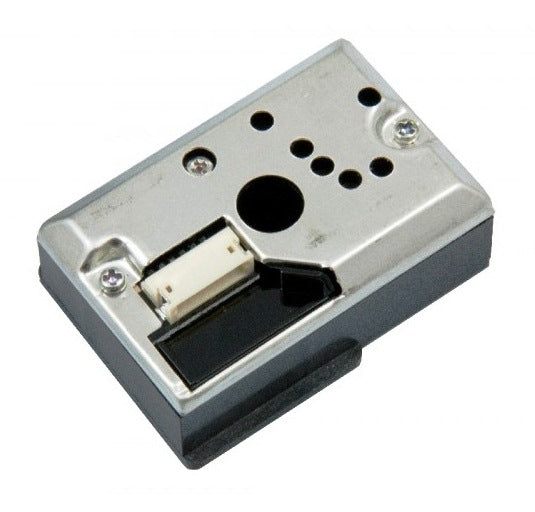

This PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor is an infrared emitting diode (IRED) and a phototransistor is diagonally arranged into this device. It detects the reflected light of dust in the air. Especially, it is effective to detect very fine particles like cigarette smoke. In addition, it can distinguish smoke from house dust by the pulse pattern of the output voltage.

The module is mainly used for dust removal equipment alarm equipment, air purification equipment, dust robots, fire alarm, etc. industry equipment can detect smoke particles, pollen spores, and other particles. The sensor has a very low current consumption (20mA max, 11mA typical), and can be powered with up to 7VDC. The output of the sensor is an analog voltage proportional to the measured dust density, with a sensitivity of 0.5V/0.1mg/m3.

Applications:

• Detecting dust in the air.
• Air purifier, Air conditioner, the Air monitor.
• Fire alarm
• Dust robots

Package Includes:

• 1 x Optical Dust Sensor

Specifications
