Description
Openbuilds Big V Slot Wheel Kit
Solid V Wheels are a strong wheel that resists deflection and distributes loads. It is usually used when heavier loads are required and will compress less than the Dual V Wheel. If many of these wheels are added to a gantry plate it will allow for an even distribution of the load.
The Solid V Wheel also has improved performance when used in conjunction with a Belt & Pinion system because it provides a flat surface for the belt to ride on.
check out : Openbuilds Smooth Idler Bearing Pulley H Groove Wheel

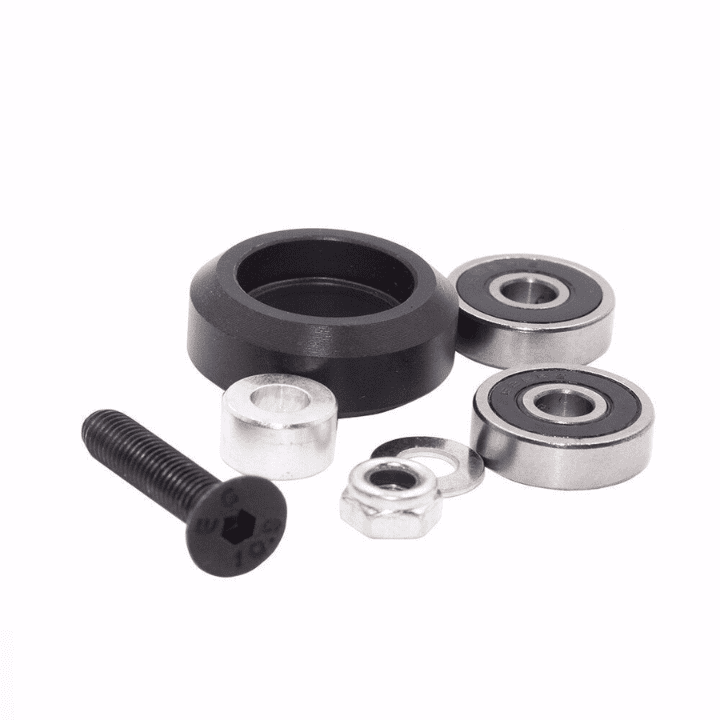

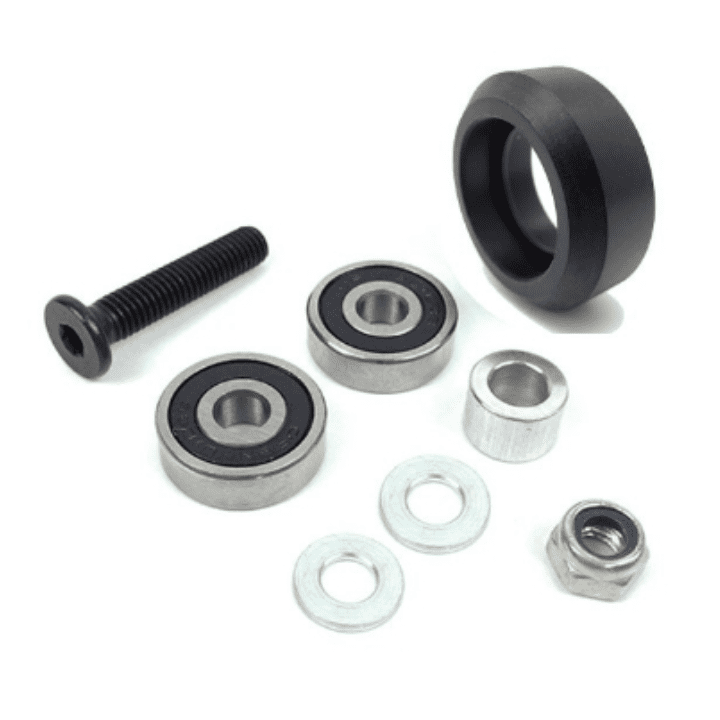

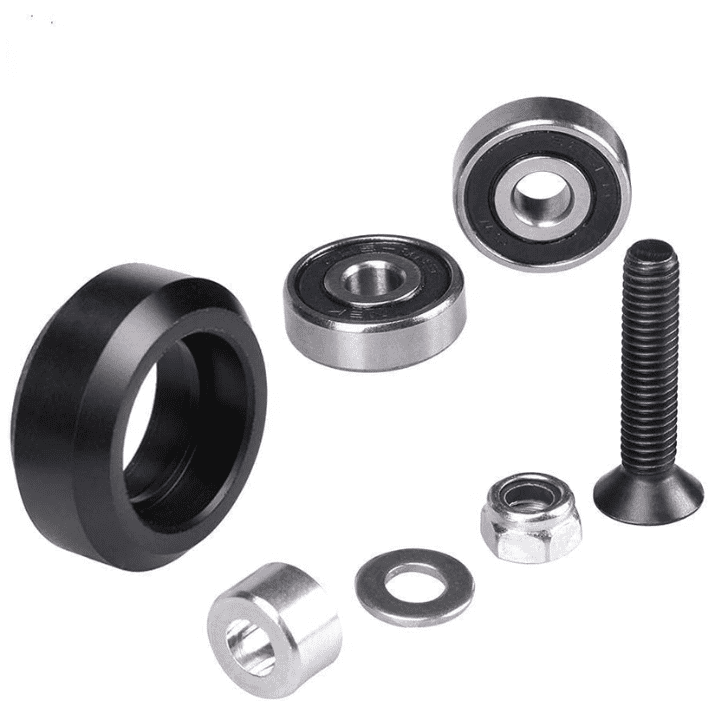

Package Includes:
- 1 Big Derlin Pulley Wheel
- 2 Bearings(625 2RS)
- 1 Precision Shim
- 1/4" or 6mm Aluminum Spacer
- M5*25mm bolt
- Nylock Nut.
Specifications:
| Compression Strength | 63MPA |
| Outer Diameter (OD) | 23.90mm |
| Inner Diameter (ID) | 15.974mm +/- 0.026mm |
| ID Bearing | 5mm |
| Thick | 10.23mm |
| Material | POM |
| Color | Black |
