Description

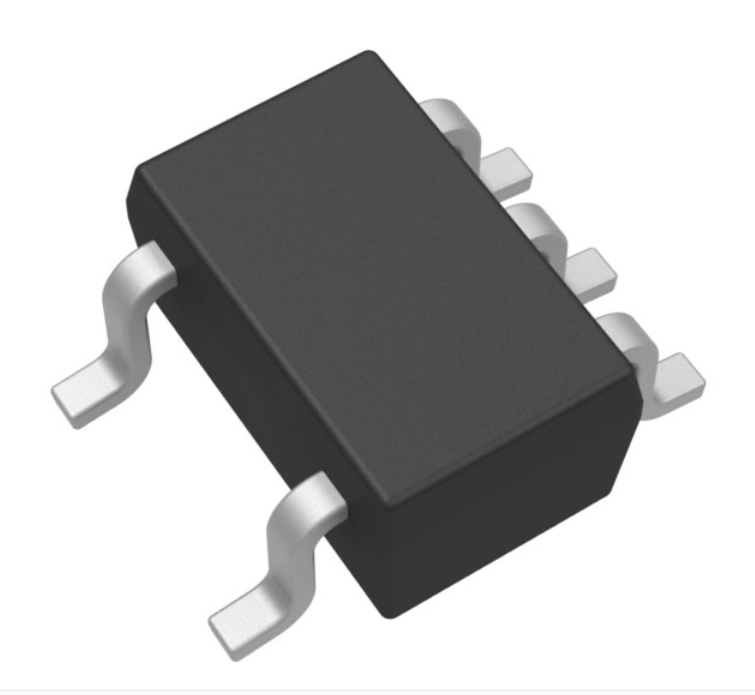

Its OPA375IDCKR IC OPAMP General Purpose Amplifier (SOT-SC70)‚ General-purpose CMOS operation amplifiers (op amps) with a very low noise figure of 3.5 nV/Hz‚ a low offset of 500 V (maximum)‚ and a wide bandwidth of 10 MHz are available in the OPAx375 family‚ which includes single (OPA375)‚ dual (OPA2375)‚ and quad-channel (OPA2375). The OPAx375 family is attractive for a variety of precision applications that require a good balance between cost and performance due to its low noise level and wide bandwidth. Additionally‚ applications with high source impedance are supported by the OPAx375's input bias current.
Features:
- Unity-gain stable
- Low broadband noise: 3.5 nV/√Hz
- Low offset voltage: 500 µV (maximum)
- Low THD+N: 0.00015%
- Gain bandwidth: 10 MHz
| Specifications | |
|---|---|
| Output Current | 890 uA |
| Supply Voltage | 5.5 V |
| Gain Bandwidth Product | 10 MHz |
| Input Offset Voltage | 500 uV |
| Part Number | OPA375IDCKR |
| Input Bias Current | 10pA |
| Output Current/Channel | 68 mA |
| Amplifier Type | OP Amp General Purpose |
| No. of Pins | 5 |
| Package | SC-70-5 |
| Mounting Type | SMD |
| Type | Op-Amp |
