Description

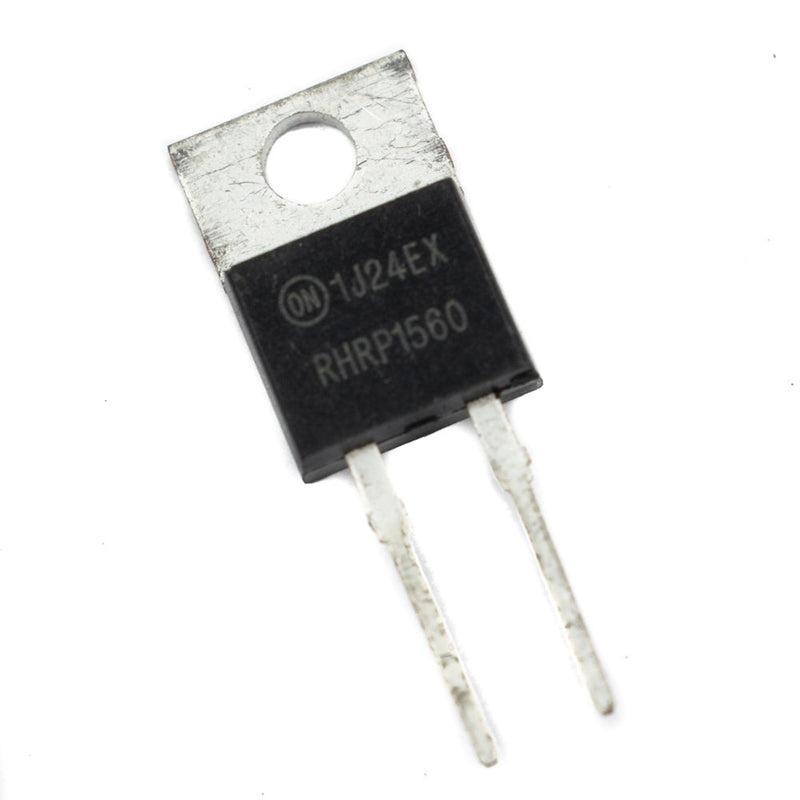

The RHRP1560 is a hyper fast diode with soft recovery. It is a silicon nitride passivated ion-implanted epitaxial planar structure with half the recovery time of ultrafast diodes. These devices are designed to be utilized as freewheeling/clamping diodes and diodes in a wide range of switching power supply and other power switching applications. Their low stored charge and hyper fast soft recovery reduce ringing and electrical noise in many power switching circuits, resulting in lower power loss in the switching transistors.
Features
- Hyper fast Recovery t, = 40 ns (15 A)
- Max Forward Voltage. V = 21 V(@Te = 25°C)
- 400 V, 800V Reverse Voltage and High Reliability
- Avalanche Energy Rated
- RoHS Compliant
Applications
- Switching Power Supplies
- Power Switching Circuits
- General Purpose
Specifications
| Model | RHRP1560 |
| Package | TO-220AC-2L |
| Brand | FSC/ONSEMI |
| Peak Repetitive Reverse Voltage | 600V |
| Average Rectified Forward Current | 15A |
| Repetitive Peak Surge Current | 30A |
| Non-Repetitive Peak Surge Current | 200A |
| Max. Power Dissipation | 100W |
| Avalanche Energy | 20mJ |
| Operting Temperature | -65°C to 175°C |
| Country of Origin | China |
