Description

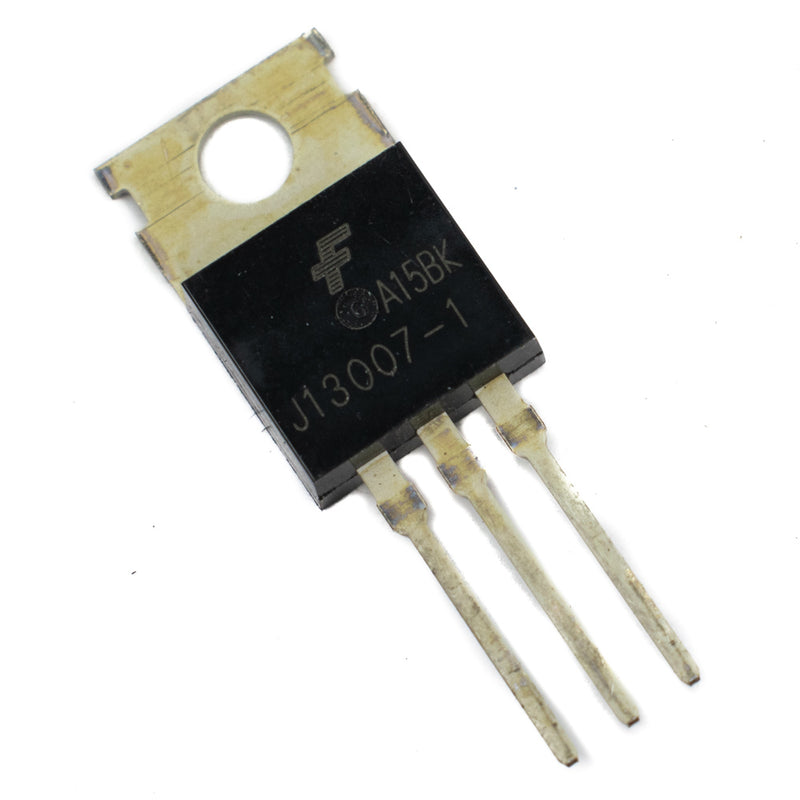

The MJE13007 is designed for high−voltage, high−speed power switching inductive circuits where fall time is critical. It is particularly suited for 115 and 220 V switch−mode applications such as Switching Regulators, Inverters, Motor Controls, Solenoid/Relay drivers and Deflection circuits.
Features
- SOA and Switching Applications Information
- Standard TO−220
- These Devices are Pb−Free and are RoHS Compliant*
- Complementary to the MJE5850 through MJE5852 Series.
Specifications
| Product Series | MJE13007 |
| Brand | FSC/ONSEMI |
| Package | TO-220 |
| Maximum Collector−Emitter Sustaining Voltage | 400V |
| Maximum Collector−Base Breakdown Voltage | 700V |
| Maximum Emitter−Base Voltage | 9V |
| Maximum Collector Current − Continuous | 8 A |
| Maximum Base Current − Continuous | 4 A |
| Maximum Emitter Current Continuous | 12A |
| Quantity | 2 |
| Country of Origin | China |
