Description

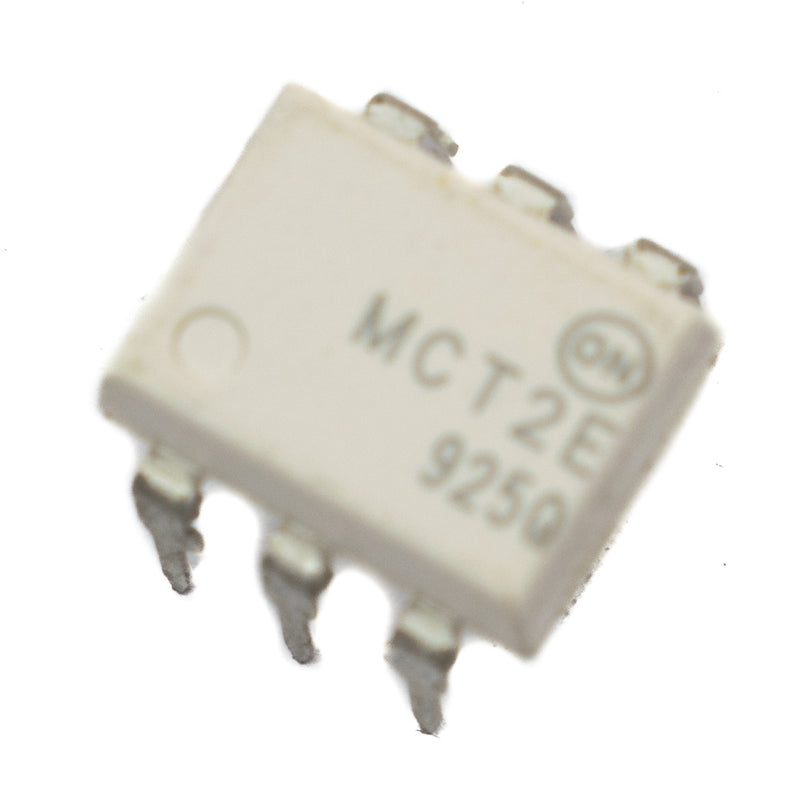

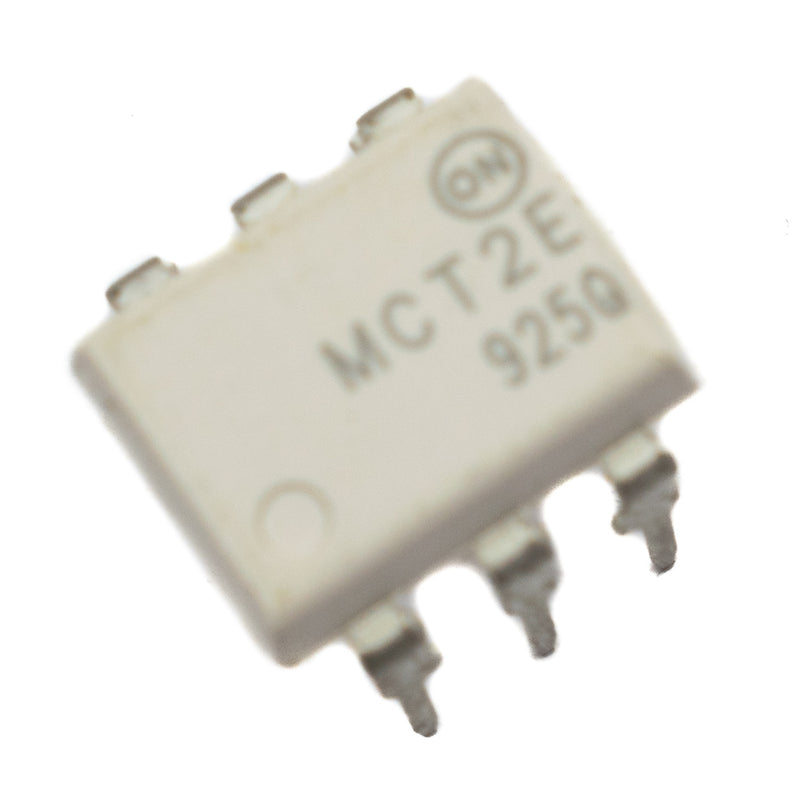

The MCT2E series optoisolators consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package
Features
- High Isolation voltage between input and output (Viso = 5000V RMS)
- Creepage distance > 7.6mm
- Operating temperature up to +100°C
- Compact dual-in-line package
- Packed in tube or tape and reel
- The conventional black housing package
Applications
- General-purpose switching circuits
- Interfacing and coupling systems of different potentials and impedances
- I/o interfacing
- Solid-state relays
- Monitor and detection circuits
Specifications
| Model | MCT2E |
| Brand | ONSEMI |
| Transistor Type | PHOTOTRANSISTOR OPTOCOUPLER |
| Material | Silicone |
| Storage Temperature | -55°C to +150°C |
| Isolation Voltage | 5000V |
| Continuous Forward Current | 60mA |
| No. of Pins | 6 pins |
| Peak Forward Current | 1A |
| Max. Operating Junction Temperature | 100°C |
| Reverse Voltage | 6V |
| Collector–Emitter Voltage | 80V |
| Max. Power Dissipation | 200nW |
| Package | DIP |
| Mounting | Through Hole |
| Country of Origin | China |
