Description
Using innovative field stop trench IGBT technology, ON Semiconductor’s new series of field stop trench IGBTs offer the optimum performance for hard switching applications such as solar inverter, UPS, welder and PFC applications.
Features
- FS Trench Technology, Positive Temperature Coefficient
- High-Speed Switching
- Low Saturation Voltage: VCE(sat) = 1.8 V @ IC = 40 A
- 100% of the Parts Tested for ILM(1)
- High Input Impedance
- These Devices are Pb−Free and are RoHS Compliant
Applications
- Solar Inverter, Welder, UPS & PFC applications
Specifications

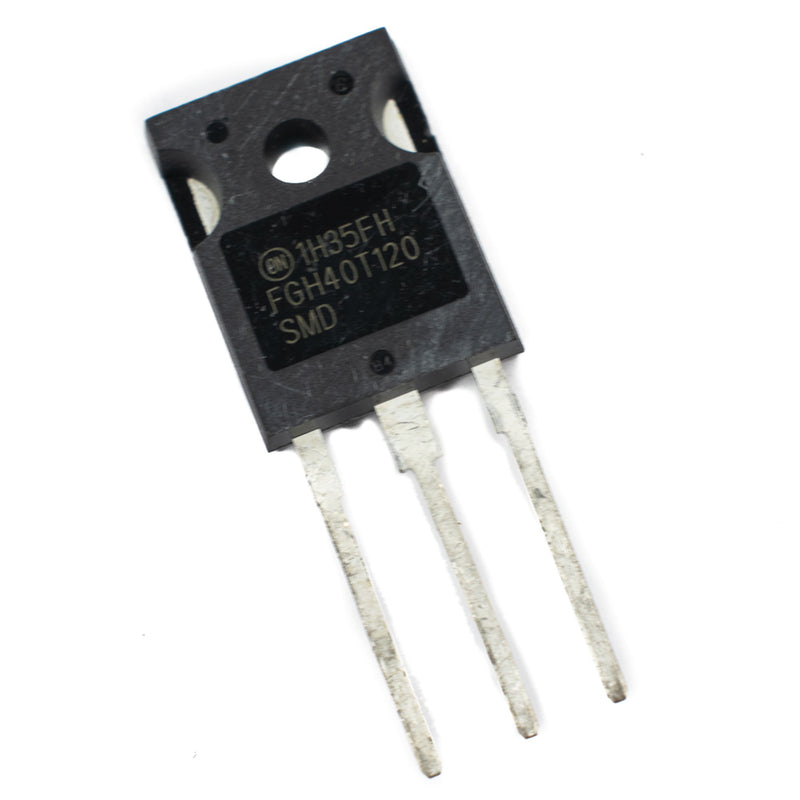

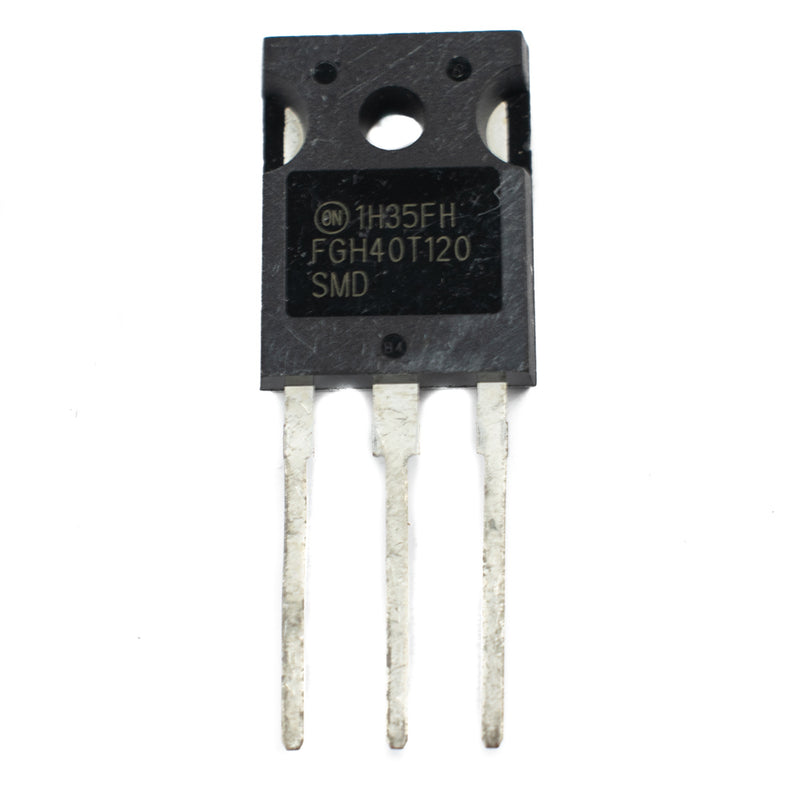

| Model | FGH40T120SMD, |
| Brand | FSC/ONSEMI |
| Collector to Emitter Voltage | 1200V |
| Collector Current | 40A @ 100°C |
| Max. Power Dissipation | 277W |
| Max. Operating junction Temperature | 175°C |

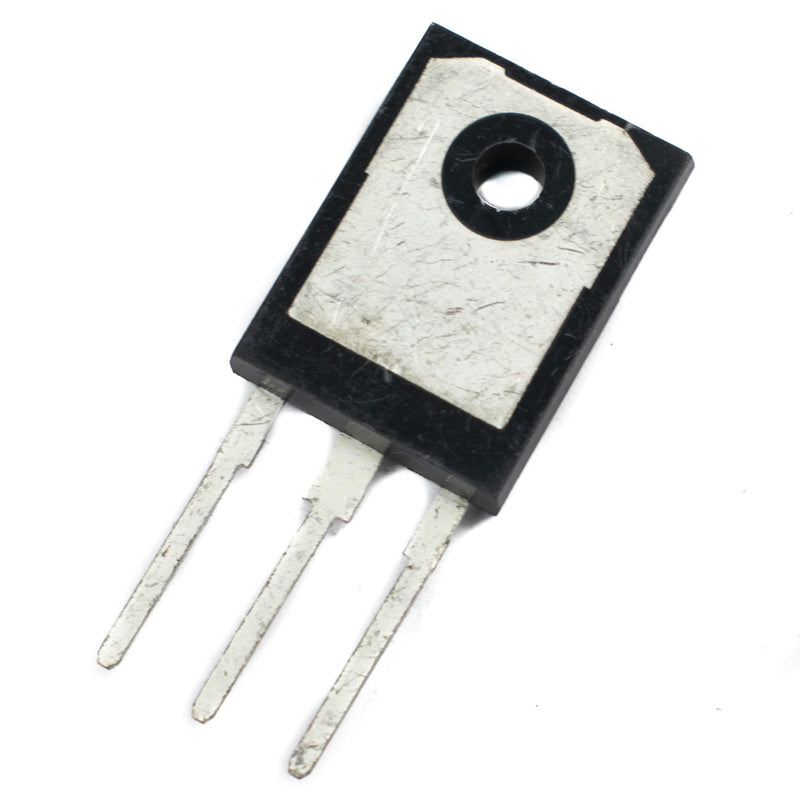

| Package | TO-247 |
| Country of Origin | China |
