Description

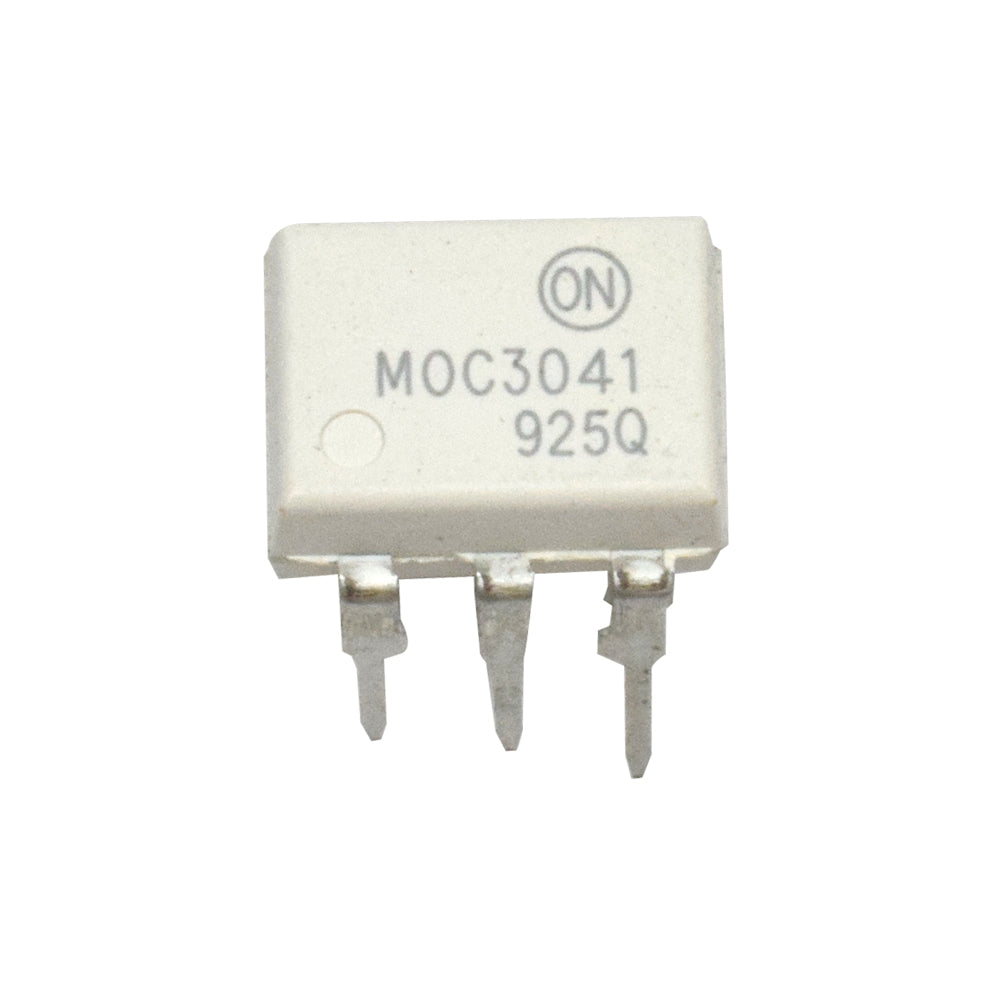

The MOC3041 devices are made up of an AlGaAs infrared emitting diode that is optically coupled to a monolithic silicon detector that serves as a zero voltage crossing bilateral triac driver. They are intended for use with a triac in the interface of logic systems to 115 VAC-powered equipment such as CRTs, solid-state relays, industrial controls, printers, motors, solenoids, and consumer appliances, among other things.
For more information Datasheet
Pinouts
- Pin 1: Anode
- Pin 2: Cathode
- Pin 3: N/C
- Pin 4: Main Terminal
- Pin 5: NC
- Pin 6: Main Terminal
Applications
- Solenoid controls
- Lighting controls
- Static power switches
- AC motor drives
- Temperature controls
- AC motor starters
- Solid state relays
Specifications
| Model | MOC3041 |
| Brand | On-Semi |
| Type |
Optocoupler IC |
| Total Power Dissipation at 25°C | 150mW |
| TRIAC output terminal voltage | 400V (max) |
| TRIAC peak output current | 1A |
| Pitch |
2.0mm |
| Number of pins | 6 |
| Package | DIP-6 |
| Country of Origin | China |
